Gang-Rip Saw Blades HW "F"
Product

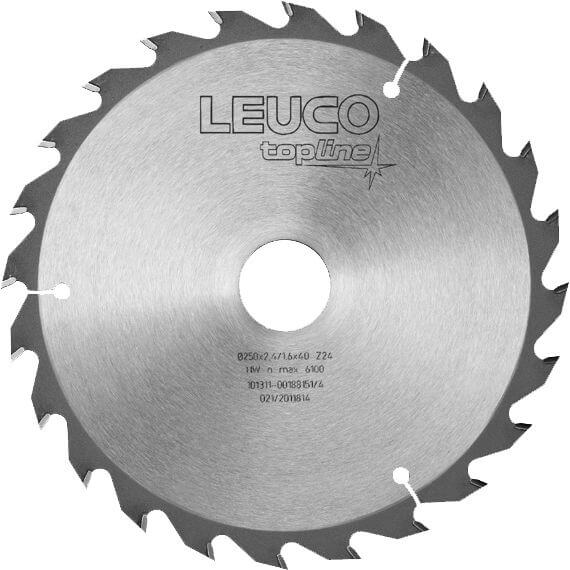

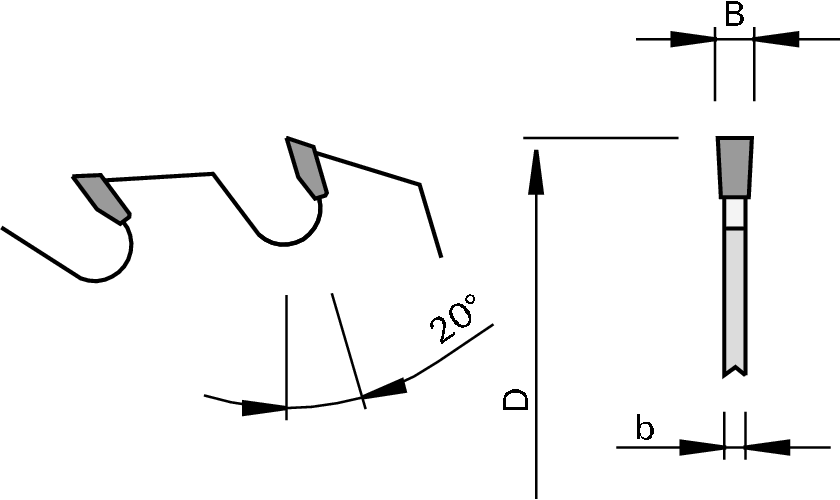

Drawing
-
-
- Tungsten Carbide [HW]
Article
Description
Machine / Application
- molders
- gang-rip saws with one or two shafts
- for precise ripping cuts in dry and planed soft woods
Design
- tooth configuration: flat "F"
- cutting material: HW HL Board 20
- type A and C with staggered double keyways
Advantages
- staggering the types (A-C-A etc.) on the shaft creates a cut division that puts less pressure on the machine
Notes
- larger bore (max. Ø 100 mm) available for a surcharge
- for cutting height > 50 mm use version with HW rakers
- for inquiries / orders enclose specification sheet (see appendix)
|
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Ø dmax
[mm] |
Z |
DKN
[mm] |
NL |
Hook angle
[°] |
Tooth geometry | LEUCODUR | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||||||
| 200 | 2,0 | 1.4 | 40 | 100 | 20 | 20 | F | HL Board 20 | 188029 | ||||
| 200 | 2,4 | 1.6 | 40 | 100 | 20 | 20 | F | HL Board 20 | 188148 | ||||
| 225 | 2,4 | 1.6 | 40 | 100 | 20 | 20 | F | HL Board 20 | 188150 | ||||
| 250 | 2,4 | 1.6 | 40 | 100 | 24 | 20 | F | HL Board 20 | 188151 | ||||
| 250 | 3,2 | 2.2 | 70 | 100 | 20 | 20x5 | 20 | F | HL Board 20 | 189300 | |||
| 250 | 2,8 | 1.8 | 70 | 100 | 24 | 20x5 | 20 | F | HL Board 20 | 188030 | |||
| 300 | 3,2 | 2.2 | 70 | 100 | 24 | 20x5 | 20 | F | HL Board 20 | 189301 | |||
| 300 | 3,2 | 2.2 | 80 | 100 | 24 | 18,5x5 | 6/5,5/91 + 4/6,6/95 + 2/13/100 | 20 | F | HL Board 20 | 189302 | ||
| 350 | 3,5 | 2.5 | 70 | 100 | 28 | 20x5 | 20 | F | HL Board 20 | 189303 | |||
| 350 | 3,5 | 2.5 | 80 | 100 | 28 | 18,5x5 | 6/5,5/91 + 4/6,6/95 + 2/13/100 | 20 | F | HL Board 20 | 188027 | ||
