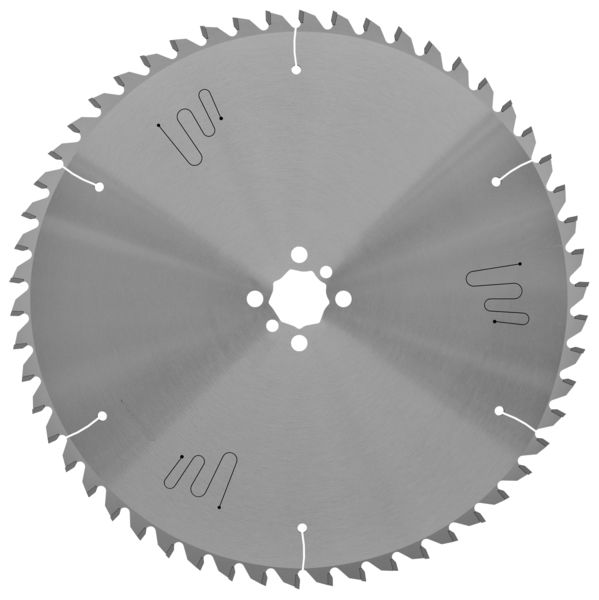

Trimming and sizing saw blades HW "WS" - easyFix

easyFix: NEW, EASY HANDLING, easy and smooth mounting of the saw blade on the machine despite high-precision bore tolerance
High cutting quality and safe handling thanks to negative hook angle
Noise reduction thanks to laser ornaments

Showentries

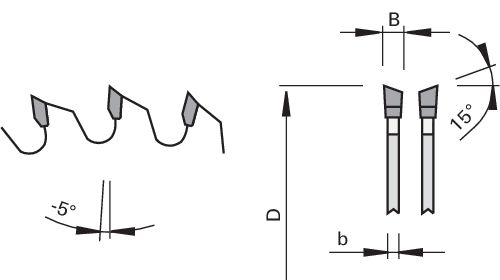

	Ø D [mm]	B [mm]	b [mm]	Ø d [mm]	Z	NL	Hook angle [°]	Corner∡ [°]	Tooth geometry	LEUCODUR	Machine/Type	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request
	300	3,2	2.2	40	72	2/9/55 + 4/12/64	-5	15	WS	HL Board 06	Graule	193245	\|
	350	3,4	2.2	40	42	2/9/55 + 4/12/64	-5	15	WS	HL Board 20	Graule	193246	\|
	350	3,2	2.2	40	72	2/9/55 + 4/12/64	-5	15	WS	HL Board 06	Graule	193247	\|
	420	4,0	2.8	40	54	2/9/55 + 4/12/64	-5	15	WS	HL Board 20	Graule	193248	\|
	420	3,5	2.5	40	84	2/9/55 + 4/12/64	-5	15	WS	HL Board 06	Graule	193249	\|
	520	4,4	3.2	50	60	2/9/55 + 4/12/64	-5	15	WS	HL Board 20	Graule	193250	\|

Show 1 to 6 of 6 entries
