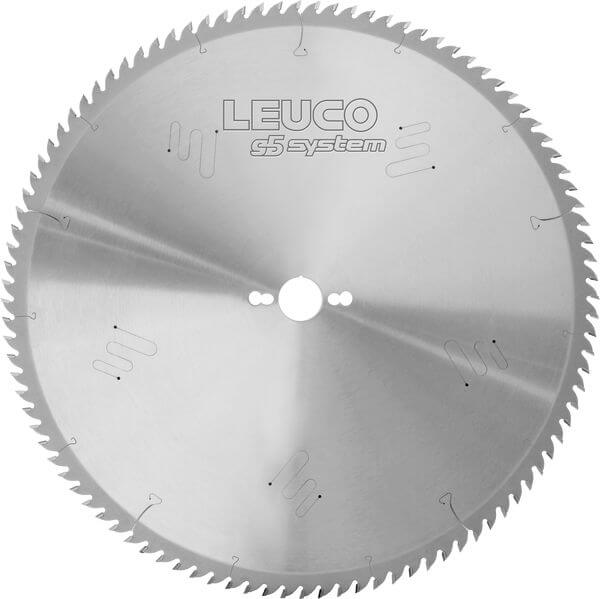

Sizing Saw Blades DP "G5"

Product

Drawing

  • Polycrystalline diamond [DP]

Article

Description

Machine / Application

  • table saws
  • vertical panel sizing saws
  • for chip-free sizing cuts as well as clipping and miter cuts in wood-based panels, and plastics (e.g. plastic profiles)

Design

  • resharpening area 3.5 mm
  • tooth configuration: G5

Advantages

  • excellent cutting quality for cross cuts
  • excellent cutting quality thanks to special tooth geometry
  • extremely long edge lives
  • noise-reduction thanks to laser ornaments

Notes

  • pay attention to nmax!!!

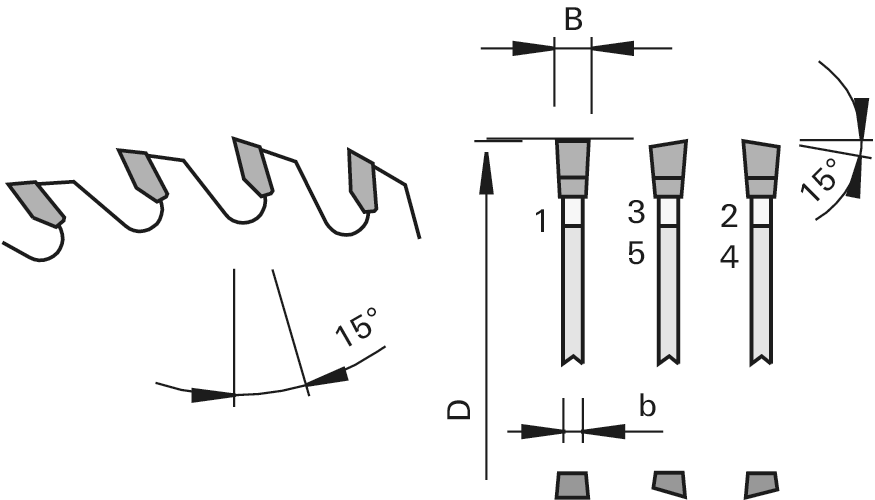

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z NL Tooth geometry Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

303 3,2 2.2 30 100 2/7/42 + 2/9,5/46,5 + 2/10/60 G5 189633
|
350 3,2 2.2 30 100 2/7/42 + 2/9,5/46,5 + 2/10/60 G5 189634
|
