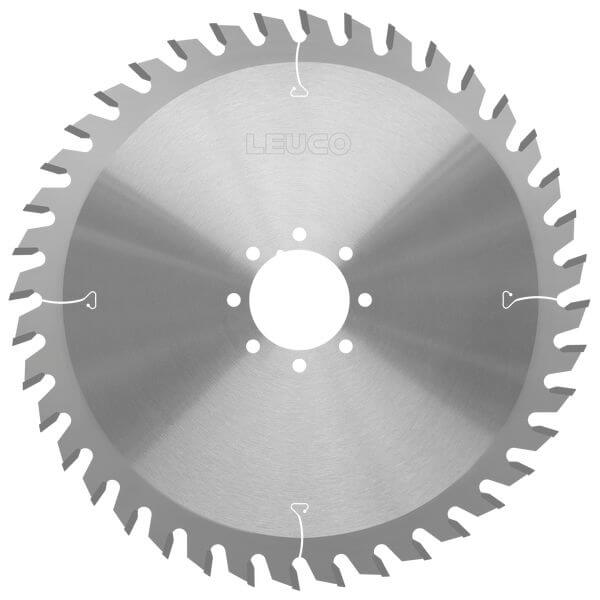

Sizing Saw Blades HW "WS" - Weinmann

Product

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • joinery machines
  • special machines
  • for sizing cuts in wood-based panels
  • for clipping and miter cuts in solid woods and wood-based panels

Design

  • tooth configuration: alternate top bevel "WS"
  • cutting material: HW HL Board 20

Advantages

Notes

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z NL Hook angle
[°] 		Corner∡
[°] 		LEUCODUR Machine/Type Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

230 3,2 2.2 40 40 8/5,5/52 10 15 HL Board 20 Weinmann 192427
|
240 3,0 2 40 30 8/6/52 10 15 HL Board 20 Weinmann 192428
|
