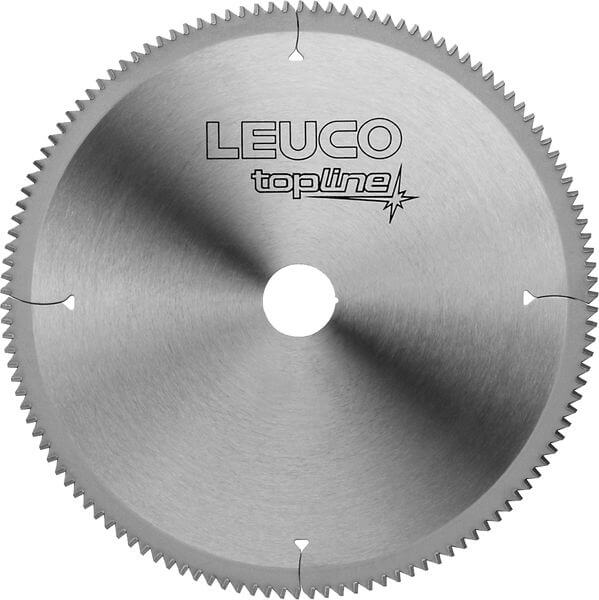

NF-Chop Saw Blades HW "TR-F"
Product

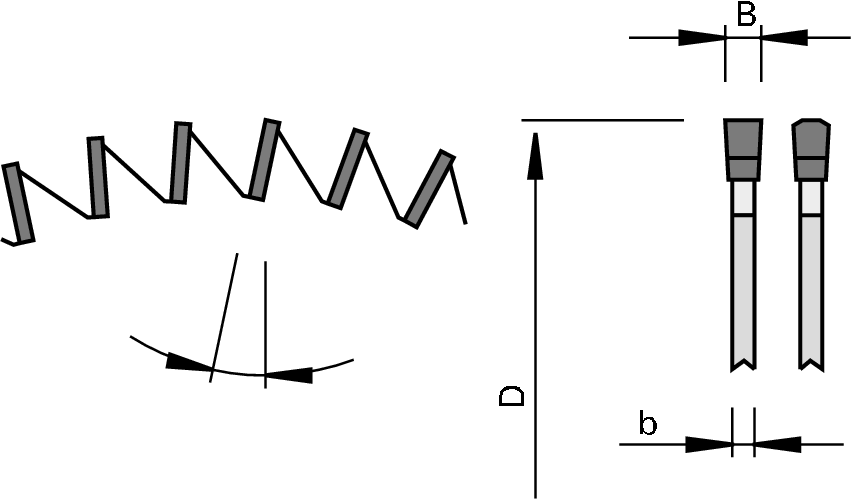

Drawing
-
-
- Tungsten Carbide [HW]
Article
Description
Machine / Application
- chop and miter saws
- for cross cuts in thin-walled plastic and aluminum profiles
Design
- negative hook angle
- tooth configuration: triple chip / flat "TR-F"
- cutting material: HW HL Board 10
Advantages
- smooth running and no chipping of edges of the workpiece thanks to the high number of teeth
Notes
|
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Z |
Hook angle
[°] |
Tooth geometry | LEUCODUR | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||
| 200 | 2,2 | 2 | 30 | 100 | -6 | TR-F | HL Board 10 | 188388 | ||
| 250 | 2,2 | 1.6 | 30 | 126 | -6 | TR-F | HL Board 10 | 189709 | ||
