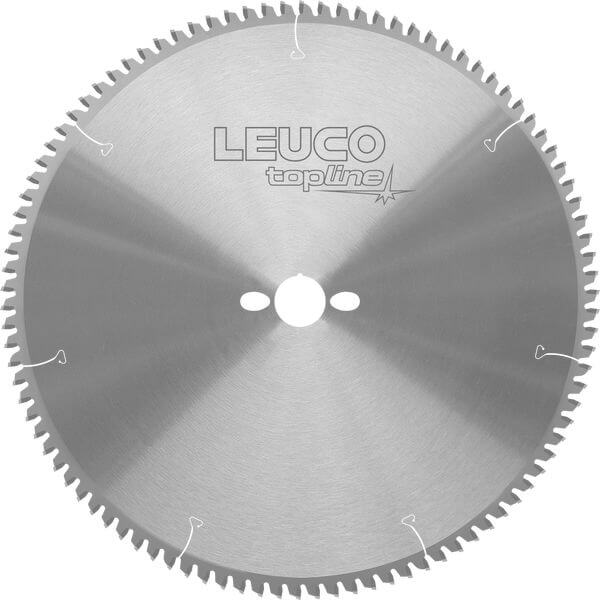

Sierras para tronzadoras e ingletadoras HW para metales no férreos - profiles "G7"

Product

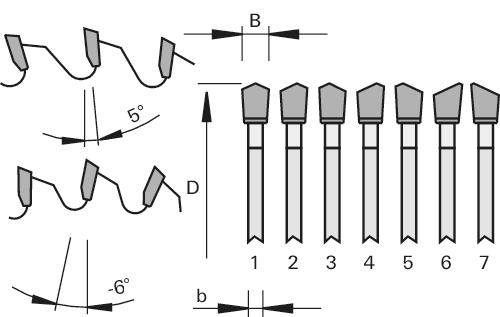

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • clipping and miter saws
  • table saws
  • clipping and miter cuts in PVC profiles
  • for burr-free and smooth cuts in aluminum window and façade profiles

Design

  • positive or negative hook angle
  • tooth configuration: "G7"
  • cutting material: HW HL Board 06

Advantages

  • reduced cutting pressure thanks to group tooth geometry
  • excellent burr-free cuts with low roughness thanks to tooth partition
  • extremely noise-reduced thanks to special laser ornaments
  • increased edge life compared to chop saw blades with tooth configuration "TR-F"
  • increased performance and economic efficiency

Notes

  • Secure workpiece clamping required
  • Max. wall thickness 5 mm

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z NL Hook angle
[°] 		Tooth geometry Cutting quality* LEUCODUR Machine/Type Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

300 3,2 2.5 30 98 2/7/42 + 2/9/46 + 2/10/60 + 2/11/70 5 G7 ▲▲▲▲ HL Board 06 192663
|
350 3,2 2.5 30 98 2/7/42 + 2/9/46 + 2/10/60 5 G7 ▲▲▲▲ HL Board 06 192662
|
400 3,8 3.2 30 98 2/7/42 + 2/9/46 + 2/10/60 + 2/15/80 + 4/12/64 5 G7 ▲▲▲▲ HL Board 06 192659
|
420 3,8 3.2 30 98 5 G7 ▲▲▲▲ HL Board 06 192660
|
420 3,8 3.2 32 98 2/12/64 5 G7 ▲▲▲▲ HL Board 06 193361
|
500 4,0 3.4 30 126 2/7/42 + 2/9/46 + 2/10/60 + 2/10/70 + 4/12/64 5 G7 ▲▲▲▲ HL Board 06 192661
|
600 4,6 4 32 140 5 G7 ▲▲▲▲ HL Board 06 Schüco 80494197
|
250 3,2 2.5 30 84 2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60 -6 G7 ▲▲▲▲ HL Board 06 192965
|
300 3,2 2.5 30 98 2/7/42 + 2/9/46 + 2/10/60 + 2/11/70 -6 G7 ▲▲▲▲ HL Board 06 192568
|
350 3,5 2.8 30 98 2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60 -6 G7 ▲▲▲▲ HL Board 06 DeWALT, Haffner, Pfeiffer, Rotox 192274
|
350 3,2 2.5 30 112 2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60 -6 G7 ▲▲▲▲ HL Board 06 192275
|
350 3,2 2.5 32 112 2/12/64 -6 G7 ▲▲▲▲ HL Board 06 Emmegi 193355
|
350 3,8 3.2 40 84 4/12/64 + 2/9/55 -6 G7 ▲▲▲▲ HL Board 06 Eisele LSM II, -LSM II-PV, -VA-L, Graule, Ulmia, Weidmann 192273
|
380 3,8 3.2 32 112 -6 G7 ▲▲▲▲ HL Board 06 Elumatec 192567
|
400 3,8 3.2 30 98 2/10/60 + 2/12/64 + 4/15/80 -6 G7 ▲▲▲▲ HL Board 06 DeWALT, Haffner 192276
|
400 3,8 3.2 30 126 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/12/64 -6 G7 ▲▲▲▲ HL Board 06 Rapid 193356
|
400 3,2 2.5 32 126 2/12/64 -6 G7 ▲▲▲▲ HL Board 06 Emmegi 193357
|
420 4,0 3.2 30 98 2/10/60 + 2/11/70 -6 G7 ▲▲▲▲ HL Board 06 Rapid, ELU 192277
|
450 3,8 3.2 30 112 2/12/64 + 4/15/80 -6 G7 ▲▲▲▲ HL Board 06 DeWALT, Haffner 192278
|
450 3,8 3.2 32 112 2/12/64 -6 G7 ▲▲▲▲ HL Board 06 Emmegi 193358
|
450 3,8 3.2 32 126 2/12/64 -6 G7 ▲▲▲▲ HL Board 06 Emmegi 193359
|
500 4,0 3.4 30 126 2/11/70 + 2/10/60 -6 G7 ▲▲▲▲ HL Board 06 Pfeiffer, Rapid 192279
|
500 4,0 3.2 32 126 2/12/64 -6 G7 ▲▲▲▲ HL Board 06 Emmegi 193360
|
550 4,0 3.4 30 133 2/10/60 + 2/12/64 + 4/15/80 -6 G7 ▲▲▲▲ HL Board 06 Pfeiffer, Rapid, Elumatec 192392
|
600 4,6 4 32 140 -6 G7 ▲▲▲▲ HL Board 06 Pfeiffer, Rapid 193341
|
