Grooving Saw Blades DP "G5"
Product
Drawing
-
-
- Polycrystalline diamond [DP]
- MEC
Article
Description
Machine / Application
- Weeke BHX series
- CNC machining centers and aggregates
- for chip-free grooving in solid woods, raw and laminated wood-based panels and plastics
Design
- tooth configuration: G5
- cutting material: DP
Advantages
- excellent cutting quality
- noise reduction due to the very low cutting pressure
- extremely long edge lives
Notes
|
Ø D
[mm] |
B
[mm] |
b
[mm] |

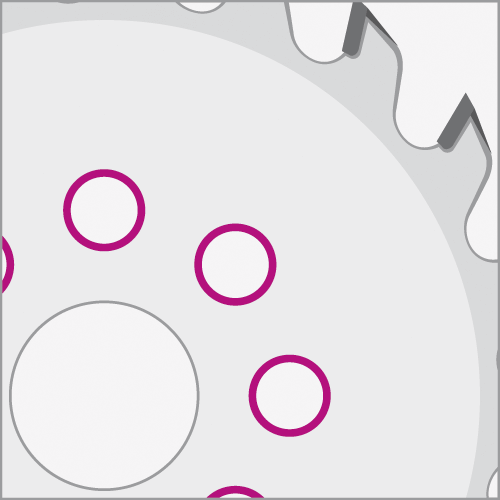

Ø d
[mm] |
Z | NL |
Hook angle
[°] |
Machine/Type | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||
| 100 | 4,0 | 3.2 | 30 | 35 | 15 | Weeke BHX Series 050/055 | 193315 | |||
| 120 | 4,0 | 3.2 | 20 | 35 | 15 | 193316 | ||||
| 125 | 4,0 | 3.2 | 30 | 35 | 2x4/5,5/48 | 15 | Weeke BHX Series 500 and other BAZ, BOF m/c and aggregates | 193317 | ||
| 125 | 5,0 | 4.2 | 30 | 35 | 2x4/5,5/48 | 15 | Weeke BHX Series 500 and other BAZ, BOF m/c and aggregates | 193318 | ||
