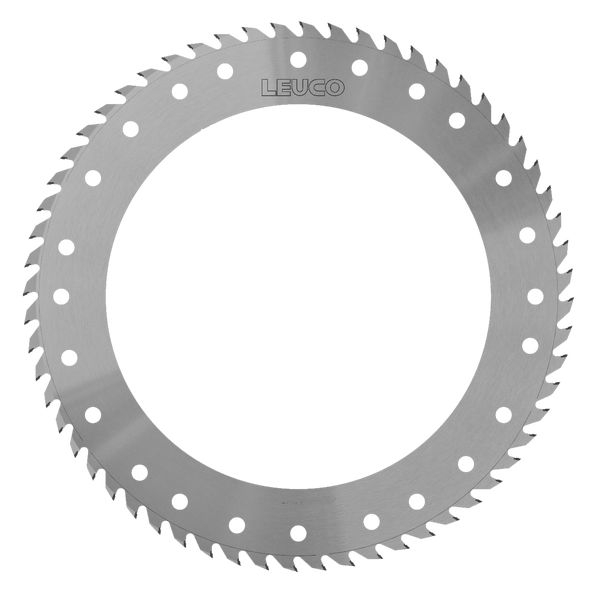

Hogger Rings HW "F" - EWD
Product
Drawing
-
-
- Tungsten Carbide [HW]
Article
Description
Machine / Application

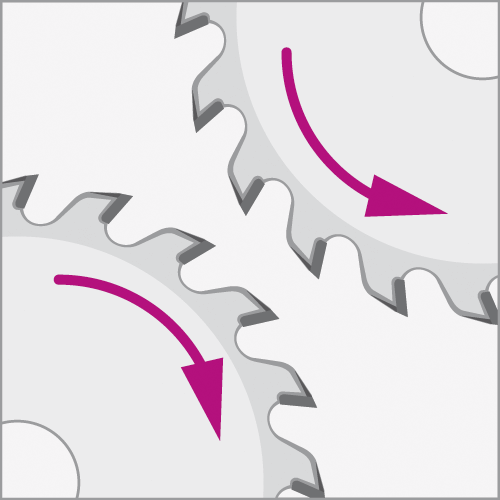

- chipping line rough and fine cut
- for longitudinal cuts in wet and dry soft woods
Design
- tooth configuration: flat "F"
- cutting material: HW HL Solid 15 or HL Board 20
Advantages
- extremely high bending strength and hardness of the teeth
Notes
- the saw blade is optimized according to the LEUCO company standards as well as according to the customers specifications and machine parameters after consultation with the technical engineering
- Ident-No. is only for orientation
|
Ø D
[mm] |

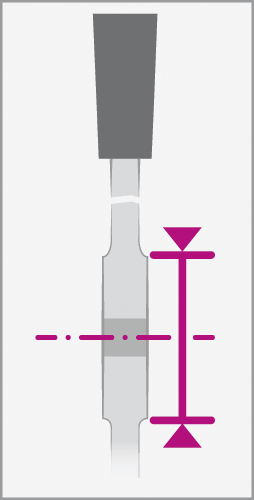

B
[mm] |

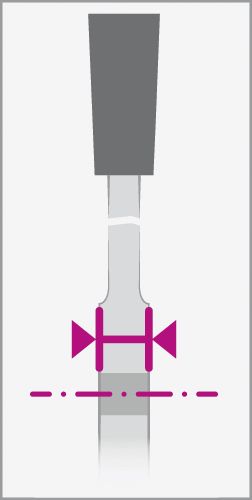

b
[mm] |
b1
[mm] |
Ø D1
[mm] |
Ø d
[mm] |
Z |
Hook angle
[°] |
L/R | Tooth geometry | LEUCODUR | Machine/Type | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||||||
| 745 | 6,6 | 5 | 6 | 700 | 520 | 60 | 20 | L | F | HL Board 20 | EWD PF19 | 80291614 | ||
| 745 | 6,6 | 5 | 6 | 700 | 520 | 60 | 20 | R | F | HL Board 20 | EWD PF19 | 80291613 | ||
