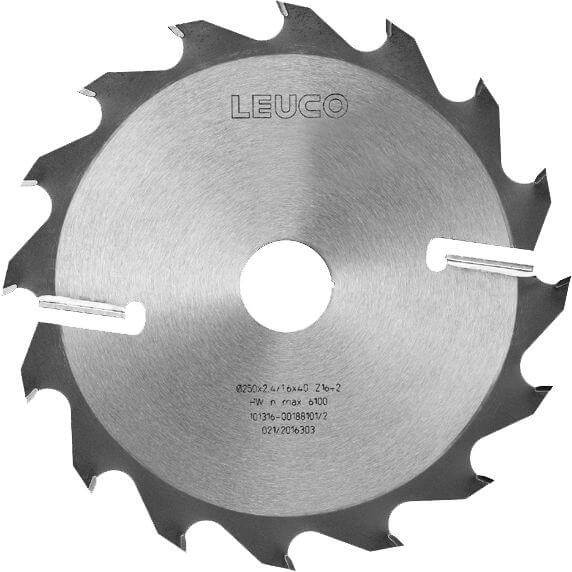

Gang-Rip Saw Blades HW with HW-rakers "F"

Product

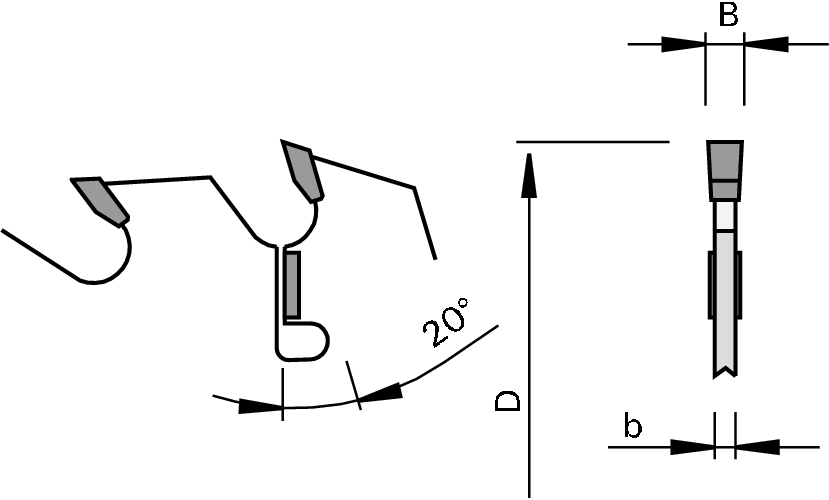

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • molders
  • gang-rip saws with one or two shafts
  • for longitudinal cuts in wet and dry soft woods

Design

  • tooth configuration: flat "F"
  • cutting material: HW HL Board 20

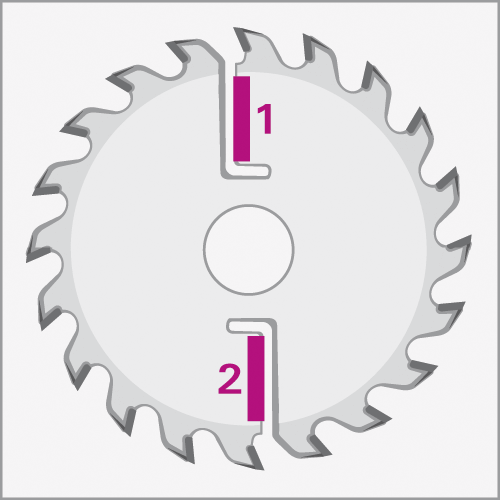

  • type A and C with staggered double keyways

Advantages

  • tungsten carbide rakers prevent the sides of the wood from making contact with the steel plate
  • staggering the types (A-C-A etc.) on the shaft creates a cut division that puts less pressure on the machine

Notes

  • for inquiries / orders enclose specification sheet (see appendix)
  • for cutting height > 50 mm

Table- and picture caption ...

Ø D
[mm] 		B

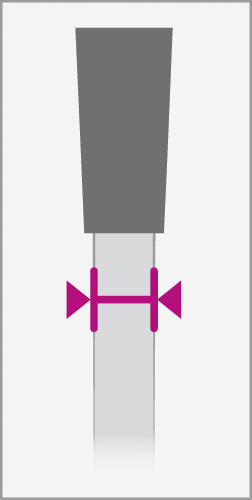

[mm] 		b
[mm] 		Ø d
[mm] 		Ø dmax

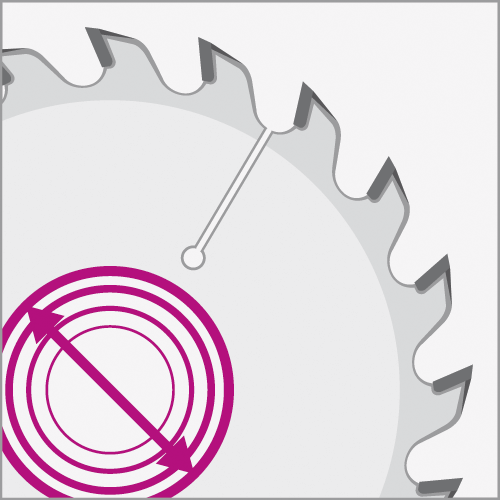

[mm] 		Max. flange Ø
[mm] 		Z Number of rakers

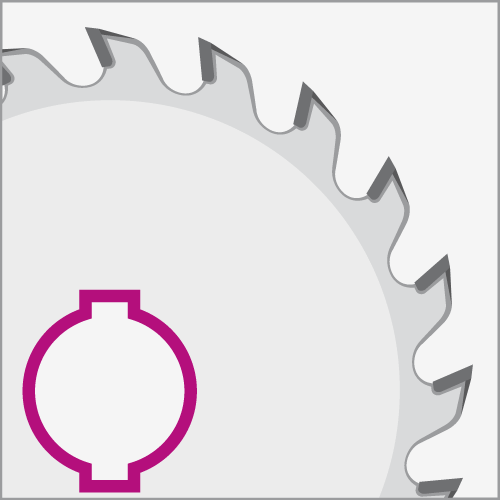

[pc.] 		DKN
[mm] 		NL Hook angle
[°] 		Tooth geometry LEUCODUR Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

180 2,4 1.6 40 55 95 16 2 20 F HL Board 20 188096
|
200 2,0 1.4 40 75 115 16 2 20 F HL Board 20 188097
|
200 2,4 1.6 40 75 115 16 2 20 F HL Board 20 188098
|
225 2,4 1.6 40 80 120 16 2 20 F HL Board 20 188100
|
250 2,4 1.6 40 80 125 16 2 20 F HL Board 20 188101
|
250 2,8 1.8 70 125 24 2 20x5 20 F HL Board 20 189290
|
300 3,2 2.2 70 120 16 2+2 20,0x5 20 F HL Board 20 189293
|
300 3,4 2.2 80 120 16 2+2 12,5x4,5 20 F HL Board 20 189296
|
300 3,2 2.2 70 120 28 2+2 20,0x5 20 F HL Board 20 189294
|
300 3,2 2.2 80 125 16 2+2 18,5x5 6/5,5/91 + 4/6,6/95 + 2/13/100 20 F HL Board 20 189295
|
350 3,5 2.5 70 120 20 2+2 20x5 20 F HL Board 20 189297
|
350 3,8 2.5 80 125 20 2+2 18,5x5 6/5,5/91 + 4/6,6/95 + 2/13/100 20 F HL Board 20 189299
|
