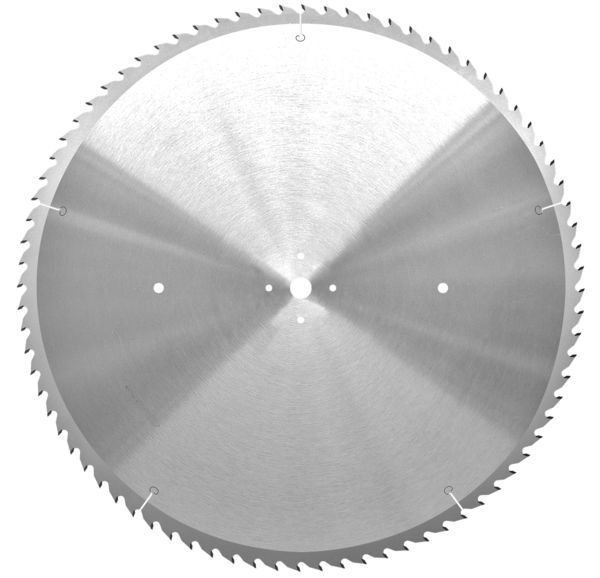

Clipping Saw Blades HW - joinery "G5"
Product
Drawing
-
-
- Tungsten Carbide [HW]
Article
Description
Machine / Application
- joinery machines
- for clipping-, crosscut- and shifter cuts in solid wood
Design
- positive hook angle
- tooth configuration: "G5"
- cutting material: HW HL Board 09
Advantages
- excellent cutting quality thanks to special tooth geometry
- extremely quiet during operation due to the low cutting pressure
Notes
|
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Z | NL |
Hook angle
[°] |
Tooth geometry | LEUCODUR | Machine/Type | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||||
| 450 | 4,4 | 3 | 30 | 65 | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 | 15 | G5 | HL Board 09 | 80481000 | |||
| 450 | 5,0 | 3.5 | 45 | 65 | 2/15/63 | 15 | G5 | HL Board 09 | 80481001 | |||
| 500 | 4,8 | 3.2 | 30 | 110 | 2/10/80 + 2/15/63 | 15 | G5 | HL Board 09 | 80481002 | |||
| 500 | 4,8 | 3.2 | 30 | 70 | 2/10/80 + 2/15/63 | 15 | G5 | HL Board 09 | 80481003 | |||
| 500 | 5,6 | 4 | 30 | 95 | 2/10/80 | 15 | G5 | HL Board 09 | 80481004 | |||
| 550 | 4,8 | 3.2 | 30 | 70 | 2/10/80 | 15 | G5 | HL Board 09 | 80481006 | |||
| 550 | 4,8 | 3.2 | 40 | 70 | 15 | G5 | HL Board 09 | 80481007 | ||||
| 600 | 5,4 | 4 | 30 | 70 | 2/10/80 + 2/13/100 | 15 | G5 | HL Board 09 | 80481009 | |||
| 600 | 5,7 | 4 | 30 | 95 | 2/11/60 + 2/13/100 | 15 | G5 | HL Board 09 | 80481010 | |||
| 600 | 5,4 | 3.8 | 40 | 70 | 15 | G5 | HL Board 09 | 80481011 | ||||
| 650 | 5,6 | 4 | 30 | 95 | 2/15/63 + 2/10/80 + 2/14/100 | 15 | G5 | HL Board 09 | 80481013 | |||
| 650 | 6,2 | 4 | 30 | 60 | 15 | G5 | HL Board 09 | Krüsi | 80481014 | |||
| 700 | 6,0 | 4.2 | 30 | 80 | 2/11/60 + 2/13/100 | 15 | G5 | HL Board 09 | 80481015 | |||
| 720 | 6,2 | 4.4 | 30 | 70 | 2/8,5/90 | 15 | G5 | HL Board 09 | Hundegger | 80481016 | ||
| 750 | 6,5 | 4.5 | 30 | 60 | 2/10,5/60 | 15 | G5 | HL Board 09 | 80481018 | |||
| 750 | 7,0 | 4.8 | 60 | 120 | 15 | G5 | HL Board 09 | Springer | 80481019 | |||
| 760 | 6,2 | 4.4 | 30 | 95 | 4/8,5/90 + 2/14/400 | 15 | G5 | HL Board 09 | Hundegger | 80481020 | ||
| 800 | 6,5 | 5 | 30 | 80 | 4/9/90 + 2/14/400 + 8/9/160 | 15 | G5 | HL Board 10 | Hundegger | 193097 | ||
| 500 | 4,2 | 2.8 | 30 | 35+2+2 | 15 | G5 | HL Board 09 | Krüsi | 80481005 | |||
| 550 | 4,6 | 3.2 | 30 | 35+2+2+2 | 15 | G5 | HL Board 09 | Krüsi | 80481008 | |||
| 640 | 5,4 | 3.6 | 30 | 40+2+2 | 15 | G5 | HL Board 09 | Mafell | 80481012 | |||
| 750 | 6,5 | 4.5 | 40 | 50+2+2 | 2/10,5/60 | 15 | G5 | HL Board 09 | Krüsi, Schneider | 80481017 | ||
