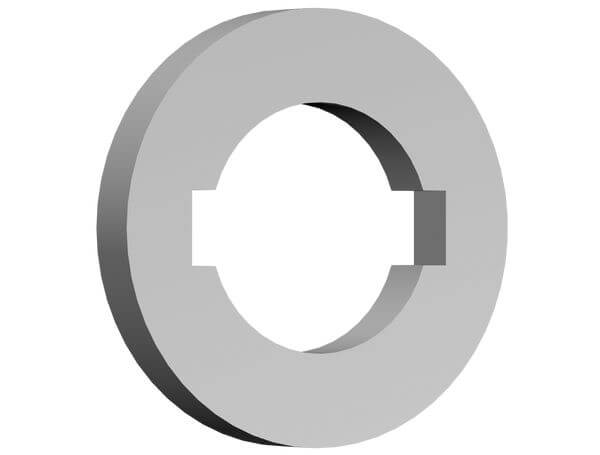

垫片
产品
图纸
货物
描述
设备/应用
设计
优点
注释
|
规格
[mm] |

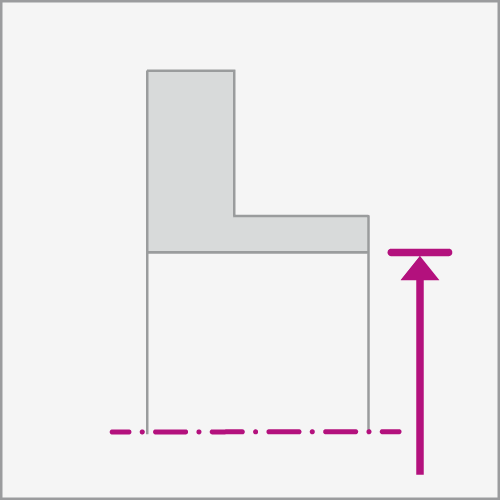

Ø D
[mm] |

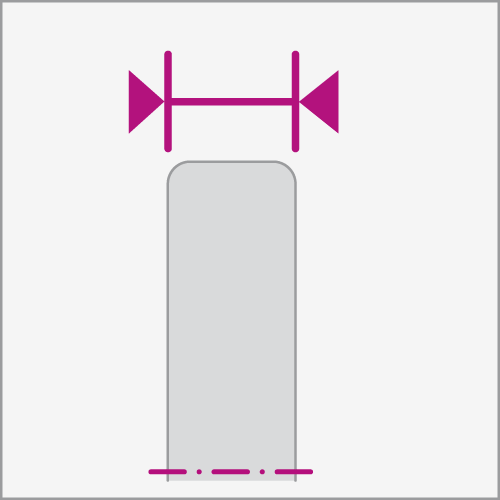

B
[mm] |
Ø d
[mm] |
MOQ
[pc] |
PU
[pc] |

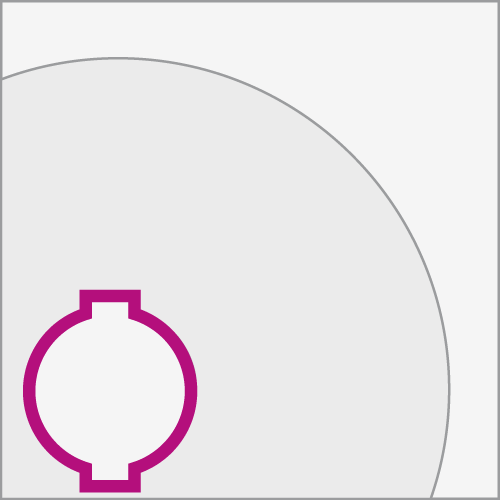

DKN
[mm] |

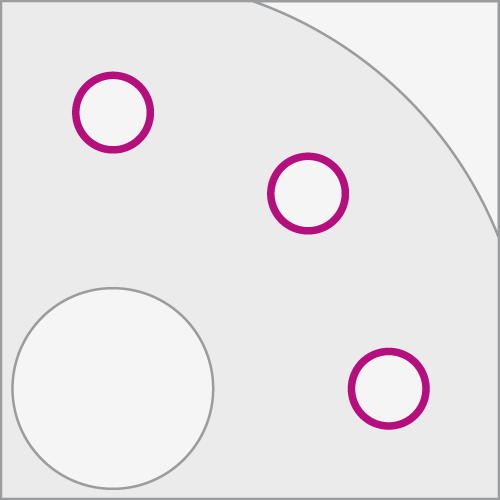

NL | 附注 | ID号 | 比较 / 查询 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
未列出您输入的尺寸？
可从仓库直接发货 |
|||||||||||
| Ø14x0,1xØ6,0 | 14 | 0,1 | 6,0 | 1 | 1 | 176422 | |||||
| Ø14x0,2xØ6,0 | 14 | 0,2 | 6,0 | 1 | 1 | 176423 | |||||
| Ø14x0,5xØ6,0 | 14 | 0,5 | 6,0 | 1 | 1 | 176424 | |||||
| Ø14x1,0xØ6,0 | 14 | 1,0 | 6,0 | 1 | 1 | 176425 | |||||
| Ø14x2,0xØ6,0 | 14 | 2,0 | 6,0 | 1 | 1 | 176426 | |||||
| Ø14x5,0xØ6,0 | 14 | 5,0 | 6,0 | 1 | 1 | 176427 | |||||
| Ø40x0,1xØ20 | 40 | 0,1 | 20 | 1 | 1 | 000218 | |||||
| Ø40x0,2xØ20 | 40 | 0,2 | 20 | 1 | 1 | 000219 | |||||
| Ø40x0,5xØ20 | 40 | 0,5 | 20 | 1 | 1 | 000220 | |||||
| Ø40x1,0xØ20 | 40 | 1,0 | 20 | 1 | 1 | 000221 | |||||
| Ø40x2,0xØ20 | 40 | 2,0 | 20 | 1 | 1 | 000222 | |||||
| Ø40x3,0xØ20 | 40 | 3,0 | 20 | 1 | 1 | 000223 | |||||
| Ø80x0,05xØ22 | 80 | 0,05 | 22 | 1 | 1 | 2/4/42 | 017424 | ||||
| Ø80x0,1xØ22 | 80 | 0,1 | 22 | 1 | 1 | 2/4/42 | 017425 | ||||
| Ø80x0,2xØ22 | 80 | 0,2 | 22 | 1 | 1 | 2/4/42 | 017426 | ||||
| Ø40x0,1xØ25 | 40 | 0,1 | 25 | 1 | 1 | 8x3,3 | 183756 | ||||
| Ø40x0,2xØ25 | 40 | 0,2 | 25 | 1 | 1 | 8x3,3 | 183757 | ||||
| Ø40x0,5xØ25 | 40 | 0,5 | 25 | 1 | 1 | 8x3,3 | 183758 | ||||
| Ø40x1,0xØ25 | 40 | 1,0 | 25 | 1 | 1 | 8x3,3 | 183759 | ||||
| Ø40x2,0xØ25 | 40 | 2,0 | 25 | 1 | 1 | 8x3,3 | 183760 | ||||
| Ø40x4,0xØ25 | 40 | 4,0 | 25 | 1 | 1 | 8x3,3 | 183761 | ||||
| Ø40x6,0xØ25 | 40 | 6,0 | 25 | 1 | 1 | 8x3,3 | 183762 | ||||
| Ø40x10xØ25 | 40 | 10 | 25 | 1 | 1 | 8x3,3 | 183763 | ||||
| Ø40x20xØ25 | 40 | 20 | 25 | 1 | 1 | 8x3,3 | 183764 | ||||
| Ø45x0,1xØ25 | 45 | 0,1 | 25 | 1 | 1 | 10x3,3 | 2/5,5/35 + 4/6,5/36 | 185391 | |||
| Ø40x0,5xØ25 | 45 | 0,5 | 25 | 1 | 1 | 10x3,3 | 2/5,5/35 + 4/6,5/36 | 185393 | |||
| Ø45x1,0xØ25 | 45 | 1,0 | 25 | 1 | 1 | 10x3,3 | 2/5,5/35 + 4/6,5/36 | 185394 | |||
| Ø45x2,0xØ25 | 45 | 2,0 | 25 | 1 | 1 | 10x3,3 | 2/5,5/35 + 4/6,5/36 | 185395 | |||
| Ø45x3,0xØ25 | 45 | 3,0 | 25 | 1 | 1 | 10x3,3 | 2/5,5/35 + 4/6,5/36 | 185396 | |||
| Ø50x0,1xØ30 | 50 | 0,1 | 30 | 1 | 1 | 000242 | |||||
| Ø50x0,2xØ30 | 50 | 0,2 | 30 | 1 | 1 | 000243 | |||||
| Ø50x0,5xØ30 | 50 | 0,5 | 30 | 1 | 1 | 000244 | |||||
| Ø50x1,0xØ30 | 50 | 1,0 | 30 | 1 | 1 | 000245 | |||||
| Ø50x2,0xØ30 | 50 | 2,0 | 30 | 1 | 1 | 000246 | |||||
| Ø50x3,0xØ30 | 50 | 3,0 | 30 | 1 | 1 | 000247 | |||||
| Ø65x0,1xØ30 | 65 | 0,1 | 30 | 1 | 1 | 10x3,3 | 2/7/45 + 8/7/48 | 185397 | |||
| Ø65x0,2xØ30 | 65 | 0,2 | 30 | 1 | 1 | 10x3,3 | 2/7/45 + 8/7/48 | 185398 | |||
| Ø65x0,5xØ30 | 65 | 0,5 | 30 | 1 | 1 | 10x3,3 | 2/7/45 + 8/7/48 | 185399 | |||
| Ø65x1,0xØ30 | 65 | 1,0 | 30 | 1 | 1 | 10x3,3 | 2/7/45 + 8/7/48 | 185400 | |||
| Ø65x2,0xØ30 | 65 | 2,0 | 30 | 1 | 1 | 10x3,3 | 2/7/45 + 8/7/48 | 185401 | |||
| Ø65x3,0xØ30 | 65 | 3,0 | 30 | 1 | 1 | 10x3,3 | 2/7/45 + 8/7/48 | 185402 | |||
| Ø65x4,0xØ30 | 65 | 4,0 | 30 | 1 | 1 | 10x3,3 | 2/7/45 + 8/7/48 | 185403 | |||
| Ø65x10xØ30 | 65 | 10 | 30 | 1 | 1 | 10x3,3 | 2/7/45 + 8/7/48 | 185404 | |||
| Ø90x1,0xØ30 | 90 | 1,0 | 30 | 1 | 1 | 000311 | |||||
| Ø90x3,0xØ30 | 90 | 3,0 | 30 | 1 | 1 | 000313 | |||||
| Ø100x0,1xØ30 | 100 | 0,1 | 30 | 1 | 1 | 000320 | |||||
| Ø100x0,2xØ30 | 100 | 0,2 | 30 | 1 | 1 | 000321 | |||||
| Ø100x0,5xØ30 | 100 | 0,5 | 30 | 1 | 1 | 000322 | |||||
| Ø100x1,0xØ30 | 100 | 1,0 | 30 | 1 | 1 | 000323 | |||||
| Ø100x2,0xØ30 | 100 | 2,0 | 30 | 1 | 1 | 000324 | |||||
| Ø100x3,0xØ30 | 100 | 3,0 | 30 | 1 | 1 | 000325 | |||||
| Ø175x0,1xØ30 | 175 | 0,1 | 30 | 1 | 1 | 000458 | |||||
| Ø175x0,2xØ30 | 175 | 0,2 | 30 | 1 | 1 | 000459 | |||||
| Ø175x0,5xØ30 | 175 | 0,5 | 30 | 1 | 1 | 000460 | |||||
| Ø175x1,0xØ30 | 175 | 1,0 | 30 | 1 | 1 | 000461 | |||||
| Ø70x0,1xØ35 | 70 | 0,1 | 35 | 1 | 1 | 12x4 | 4/11/54 + 6/7/58 | 185405 | |||
| Ø70x0,2xØ35 | 70 | 0,2 | 35 | 1 | 1 | 12x4 | 4/11/54 + 6/7/58 | 185406 | |||
| Ø70x0,5xØ35 | 70 | 0,5 | 35 | 1 | 1 | 12x4 | 4/11/54 + 6/7/58 | 185407 | |||
| Ø70x1,0xØ35 | 70 | 1,0 | 35 | 1 | 1 | 12x4 | 4/11/54 + 6/7/58 | 185408 | |||
| Ø70x2,0xØ35 | 70 | 2,0 | 35 | 1 | 1 | 12x4 | 4/11/54 + 6/7/58 | 185409 | |||
| Ø70x3,0xØ35 | 70 | 3,0 | 35 | 1 | 1 | 12x4 | 4/11/54 + 6/7/58 | 185410 | |||
| Ø70x4,0xØ35 | 70 | 4,0 | 35 | 1 | 1 | 12x4 | 4/11/54 + 6/7/58 | 185411 | |||
| Ø70x10xØ35 | 70 | 10 | 35 | 1 | 1 | 12x4 | 4/11/54 + 6/7/58 | 185412 | |||
| Ø70x25xØ35 | 70 | 25 | 35 | 1 | 1 | 4 垫片 | 170363 | ||||
| Ø100x0,1xØ35 | 100 | 0,1 | 35 | 1 | 1 | 000326 | |||||
| Ø100x0,2xØ35 | 100 | 0,2 | 35 | 1 | 1 | 000327 | |||||
| Ø100x0,3xØ35 | 100 | 0,5 | 35 | 1 | 1 | 000328 | |||||
| Ø100x1,0xØ35 | 100 | 1,0 | 35 | 1 | 1 | 000329 | |||||
| Ø100x2,0xØ35 | 100 | 2,0 | 35 | 1 | 1 | 000330 | |||||
| Ø100x3,0xØ35 | 100 | 3,0 | 35 | 1 | 1 | 000331 | |||||
| Ø70x0,1xØ40 | 70 | 0,1 | 40 | 1 | 1 | 14x3,5 | 4/8/55 + 4/7/58 | 185413 | |||
| Ø70x0,2xØ40 | 70 | 0,2 | 40 | 1 | 1 | 14x3,5 | 4/8/55 + 4/7/58 | 185414 | |||
| Ø70x0,5xØ40 | 70 | 0,5 | 40 | 1 | 1 | 14x3,5 | 4/8/55 + 4/7/58 | 185415 | |||
| Ø70x1,0xØ40 | 70 | 1,0 | 40 | 1 | 1 | 14x3,5 | 4/8/55 + 4/7/58 | 185416 | |||
| Ø70x2,0xØ40 | 70 | 2,0 | 40 | 1 | 1 | 14x3,5 | 4/8/55 + 4/7/58 | 185417 | |||
| Ø70x3,0xØ40 | 70 | 3,0 | 40 | 1 | 1 | 14x3,5 | 4/8/55 + 4/7/58 | 185418 | |||
| Ø70x4,0xØ40 | 70 | 4,0 | 40 | 1 | 1 | 14x3,5 | 4/8/55 + 4/7/58 | 185419 | |||
| 70x9x40 | 70 | 9 | 40 | 1 | 1 | 177308 | |||||
| Ø70x10xØ40 | 70 | 10 | 40 | 1 | 1 | 14x3,5 | 4/8/55 + 4/7/58 | 185420 | |||
| 70x12x40 | 70 | 12 | 40 | 1 | 1 | 162706 | |||||
| 70x9x50 | 70 | 9 | 50 | 1 | 1 | 177309 | |||||
| 70x10x50 | 70 | 10 | 50 | 1 | 1 | 163886 | |||||
| 70x12x50 | 70 | 12 | 50 | 1 | 1 | 163887 | |||||
| Ø120x0,1xØ40 | 120 | 0,1 | 40 | 1 | 1 | 000344 | |||||
| Ø120x0,2xØ40 | 120 | 0,2 | 40 | 1 | 1 | 000345 | |||||
| Ø120x0,5xØ40 | 120 | 0,5 | 40 | 1 | 1 | 000346 | |||||
| Ø120x1,0xØ40 | 120 | 1,0 | 40 | 1 | 1 | 000347 | |||||
| Ø120x2,0xØ40 | 120 | 2,0 | 40 | 1 | 1 | 000348 | |||||
| Ø90x0,1xØ50 | 90 | 0,1 | 50 | 1 | 1 | 000314 | |||||
| Ø90x0,2xØ50 | 90 | 0,2 | 50 | 1 | 1 | 000315 | |||||
| Ø90x0,5xØ50 | 90 | 0,5 | 50 | 1 | 1 | 000316 | |||||
| Ø90x1,0xØ50 | 90 | 1,0 | 50 | 1 | 1 | 000317 | |||||
| Ø90x2,0xØ50 | 90 | 2,0 | 50 | 1 | 1 | 000318 | |||||
| Ø90x3,0xØ50 | 90 | 3,0 | 50 | 1 | 1 | 000319 | |||||
| Ø100x0,05xØ50 | 100 | 0,05 | 50 | 1 | 1 | 4/9/80 | 177019 | ||||
| Ø100x0,1xØ50 | 100 | 0,1 | 50 | 1 | 1 | 4/9/80 | 176835 | ||||
| Ø100x0,2xØ50 | 100 | 0,2 | 50 | 1 | 1 | 4/9/80 | 176836 | ||||
| Ø100x0,5xØ50 | 100 | 0,5 | 50 | 1 | 1 | 4/9/80 | 176837 | ||||
| Ø100x1,0xØ50 | 100 | 1,0 | 50 | 1 | 1 | 4/9/80 | 176838 | ||||
| Ø100x2,0xØ50 | 100 | 2,0 | 50 | 1 | 1 | 4/9/80 | 176839 | ||||
| Ø100x3,0xØ50 | 100 | 3,0 | 50 | 1 | 1 | 4/9/80 | 176840 | ||||
| Ø90x0,05xØ60 | 90 | 0,05 | 60 | 1 | 1 | 3/9/74 | 177022 | ||||
| Ø90x0,1xØ60 | 90 | 0,1 | 60 | 1 | 1 | 3/9/74 | 177023 | ||||
| Ø90x0,2xØ60 | 90 | 0,2 | 60 | 1 | 1 | 3/9/74 | 177024 | ||||
| Ø90x0,5xØ60 | 90 | 0,5 | 60 | 1 | 1 | 3/9/74 | 177025 | ||||
| Ø90x1,0xØ60 | 90 | 1,0 | 60 | 1 | 1 | 3/9/74 | 177026 | ||||
| Ø90x2,0xØ60 | 90 | 2,0 | 60 | 1 | 1 | 3/9/74 | 177027 | ||||
| Ø100x0,1xØ60 | 100 | 0,1 | 60 | 1 | 1 | 000332 | |||||
| Ø100x0,2xØ60 | 100 | 0,2 | 60 | 1 | 1 | 000333 | |||||
| Ø100x0,5xØ60 | 100 | 0,5 | 60 | 1 | 1 | 000334 | |||||
| Ø100x1,0xØ60 | 100 | 1,0 | 60 | 1 | 1 | 000335 | |||||
| Ø100x2,0xØ60 | 100 | 2,0 | 60 | 1 | 1 | 000336 | |||||
| Ø100x3,0xØ60 | 100 | 3,0 | 60 | 1 | 1 | 000337 | |||||
| Ø119x5,0xØ60 | 119 | 5,0 | 60 | 1 | 1 | 185365 | |||||
| Ø119x39,5xØ60 | 119 | 39,5 | 60 | 1 | 1 | 6/9/100 + 2/9/100 | 185044 | ||||
| Ø119,5X51XØ60 NL | 119,5 | 51 | 60 | 1 | 1 | 4/9/100 | 119,5x51x60 NL | 179471 | |||
| Ø120x0,1xØ60 | 120 | 0,1 | 60 | 1 | 1 | 4/9/100 | 176830 | ||||
| Ø120x0,15xØ60 | 120 | 0,15 | 60 | 1 | 1 | 4/9/100 | 177018 | ||||
| Ø120x0,2xØ60 | 120 | 0,2 | 60 | 1 | 1 | 4/9/100 | 176831 | ||||
| Ø120x0,5xØ60 | 120 | 0,5 | 60 | 1 | 1 | 4/9/100 | 176832 | ||||
| Ø120x1,0xØ60 | 120 | 1,0 | 60 | 1 | 1 | 4/9/100 | 176495 | ||||
| Ø120x2,0xØ60 | 120 | 2,0 | 60 | 1 | 1 | 4/9/100 | 176833 | ||||
| Ø120x3,0xØ60 | 120 | 3,0 | 60 | 1 | 1 | 4/9/100 | 176834 | ||||
| Ø130x4,2xØ60 | 130 | 4,2 | 60 | 1 | 1 | 182200 | |||||
| Ø130x4,4xØ60 | 130 | 4,4 | 60 | 1 | 1 | 182202 | |||||
| Ø130x4,5xØ60 | 130 | 4,5 | 60 | 1 | 1 | 182203 | |||||
| Ø130x5,0xØ60 | 130 | 5,0 | 60 | 1 | 1 | 182208 | |||||
| Ø160x0,1xØ60 | 160 | 0,1 | 60 | 1 | 1 | 000452 | |||||
| Ø160x0,2xØ60 | 160 | 0,2 | 60 | 1 | 1 | 000453 | |||||
| Ø160x0,5xØ60 | 160 | 0,5 | 60 | 1 | 1 | 000454 | |||||
| Ø160x1,0xØ60 | 160 | 1,0 | 60 | 1 | 1 | 000455 | |||||
| Ø160x2,0xØ60 | 160 | 2,0 | 60 | 1 | 1 | 000456 | |||||
| Ø160x3,0xØ60 | 160 | 3,0 | 60 | 1 | 1 | 000457 | |||||
| Ø115x1,0xØ80 | 115 | 1,0 | 80 | 1 | 1 | 4/10/100 | 009255 | ||||
| Ø100x7,6xØ70 | 100 | 7,6 | 70 | 1 | 1 | 180940 | |||||
| Ø100x11,4xØ70 | 100 | 11,4 | 70 | 1 | 1 | 180941 | |||||
| Ø175x7,6xØ70 | 175 | 7,6 | 70 | 1 | 1 | 186163 | |||||
| Ø175x11,4xØ70 | 175 | 11,4 | 70 | 1 | 1 | 181034 | |||||
| Ø150x1,5xØ75 | 150 | 1,6 | 75 | 1 | 1 | 6/6,5/95 | 189542 | ||||
| Ø120x0,1xØ80 | 120 | 0,1 | 80 | 1 | 1 | 4/9/100 + 2/6,5/90 | 177380 | ||||
| Ø120x0,2xØ80 | 120 | 0,2 | 80 | 1 | 1 | 4/9/100 + 2/6,5/90 | 177381 | ||||
| Ø120x0,5xØ80 | 120 | 0,5 | 80 | 1 | 1 | 4/9/100 + 2/6,5/90 | 177382 | ||||
| Ø120x1,0xØ80 | 120 | 1,0 | 80 | 1 | 1 | 4/9/100 + 2/6,5/90 | 177383 | ||||
| Ø120x2,0xØ80 | 120 | 2,0 | 80 | 1 | 1 | 4/9/100 + 2/6,5/90 | 177384 | ||||
| Ø120x3,0xØ80 | 120 | 3,0 | 80 | 1 | 1 | 4/9/100 + 2/6,5/90 | 177385 | ||||
| Ø130x0,5xØ80 | 130 | 0,5 | 80 | 1 | 1 | 000450 | |||||
| Ø145x0,2xØ80 | 145 | 0,2 | 80 | 1 | 1 | 4/12/100 + 4/9/120 | 552105 | ||||
| Ø145x0,5xØ80 | 145 | 0,5 | 80 | 1 | 1 | 4/12/100 + 4/9/120 | 552106 | ||||
| Ø145x1,0xØ80 | 145 | 1,0 | 80 | 1 | 1 | 4/12/100 + 4/9/120 | 552107 | ||||
