Selection via tool type

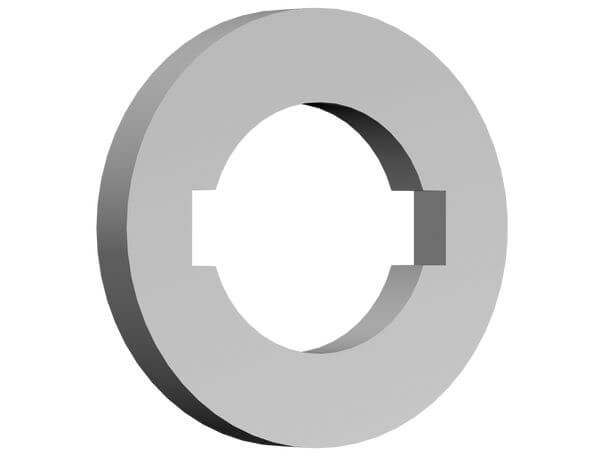

Spacers

Product

Drawing

Article

Description

Machine / Application

Design

Advantages

Notes

Table- and picture caption ...

Dimension
[mm]
Ø D
[mm]
B
[mm]
Ø d
[mm]
MOQ
[pc.]
PU
[pc.]
DKN
[mm]
NL Remarks Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

Ø14x0,1xØ6,0 14 0,1 6,0 1 1 176422
|
Ø14x0,2xØ6,0 14 0,2 6,0 1 1 176423
|
Ø14x0,5xØ6,0 14 0,5 6,0 1 1 176424
|
Ø14x1,0xØ6,0 14 1,0 6,0 1 1 176425
|
Ø14x2,0xØ6,0 14 2,0 6,0 1 1 176426
|
Ø14x5,0xØ6,0 14 5,0 6,0 1 1 176427
|
Ø40x0,1xØ20 40 0,1 20 1 1 000218
|
Ø40x0,2xØ20 40 0,2 20 1 1 000219
|
Ø40x0,5xØ20 40 0,5 20 1 1 000220
|
Ø40x1,0xØ20 40 1,0 20 1 1 000221
|
Ø40x2,0xØ20 40 2,0 20 1 1 000222
|
Ø40x3,0xØ20 40 3,0 20 1 1 000223
|
Ø80x0,05xØ22 80 0,05 22 1 1 2/4/42 017424
|
Ø80x0,1xØ22 80 0,1 22 1 1 2/4/42 017425
|
Ø80x0,2xØ22 80 0,2 22 1 1 2/4/42 017426
|
Ø40x0,1xØ25 40 0,1 25 1 1 8x3,3 183756
|
Ø40x0,2xØ25 40 0,2 25 1 1 8x3,3 183757
|
Ø40x0,5xØ25 40 0,5 25 1 1 8x3,3 183758
|
Ø40x1,0xØ25 40 1,0 25 1 1 8x3,3 183759
|
Ø40x2,0xØ25 40 2,0 25 1 1 8x3,3 183760
|
Ø40x4,0xØ25 40 4,0 25 1 1 8x3,3 183761
|
Ø40x6,0xØ25 40 6,0 25 1 1 8x3,3 183762
|
Ø40x10xØ25 40 10 25 1 1 8x3,3 183763
|
Ø40x20xØ25 40 20 25 1 1 8x3,3 183764
|
Ø45x0,1xØ25 45 0,1 25 1 1 10x3,3 2/5,5/35 + 4/6,5/36 185391
|
Ø40x0,5xØ25 45 0,5 25 1 1 10x3,3 2/5,5/35 + 4/6,5/36 185393
|
Ø45x1,0xØ25 45 1,0 25 1 1 10x3,3 2/5,5/35 + 4/6,5/36 185394
|
Ø45x2,0xØ25 45 2,0 25 1 1 10x3,3 2/5,5/35 + 4/6,5/36 185395
|
Ø45x3,0xØ25 45 3,0 25 1 1 10x3,3 2/5,5/35 + 4/6,5/36 185396
|
Ø50x0,1xØ30 50 0,1 30 1 1 000242
|
Ø50x0,2xØ30 50 0,2 30 1 1 000243
|
Ø50x0,5xØ30 50 0,5 30 1 1 000244
|
Ø50x1,0xØ30 50 1,0 30 1 1 000245
|
Ø50x2,0xØ30 50 2,0 30 1 1 000246
|
Ø50x3,0xØ30 50 3,0 30 1 1 000247
|
Ø65x0,1xØ30 65 0,1 30 1 1 10x3,3 2/7/45 + 8/7/48 185397
|
Ø65x0,2xØ30 65 0,2 30 1 1 10x3,3 2/7/45 + 8/7/48 185398
|
Ø65x0,5xØ30 65 0,5 30 1 1 10x3,3 2/7/45 + 8/7/48 185399
|
Ø65x1,0xØ30 65 1,0 30 1 1 10x3,3 2/7/45 + 8/7/48 185400
|
Ø65x2,0xØ30 65 2,0 30 1 1 10x3,3 2/7/45 + 8/7/48 185401
|
Ø65x3,0xØ30 65 3,0 30 1 1 10x3,3 2/7/45 + 8/7/48 185402
|
Ø65x4,0xØ30 65 4,0 30 1 1 10x3,3 2/7/45 + 8/7/48 185403
|
Ø65x10xØ30 65 10 30 1 1 10x3,3 2/7/45 + 8/7/48 185404
|
Ø90x1,0xØ30 90 1,0 30 1 1 000311
|
Ø90x3,0xØ30 90 3,0 30 1 1 000313
|
Ø100x0,1xØ30 100 0,1 30 1 1 000320
|
Ø100x0,2xØ30 100 0,2 30 1 1 000321
|
Ø100x0,5xØ30 100 0,5 30 1 1 000322
|
Ø100x1,0xØ30 100 1,0 30 1 1 000323
|
Ø100x2,0xØ30 100 2,0 30 1 1 000324
|
Ø100x3,0xØ30 100 3,0 30 1 1 000325
|
Ø175x0,1xØ30 175 0,1 30 1 1 000458
|
Ø175x0,2xØ30 175 0,2 30 1 1 000459
|
Ø175x0,5xØ30 175 0,5 30 1 1 000460
|
Ø175x1,0xØ30 175 1,0 30 1 1 000461
|
Ø70x0,1xØ35 70 0,1 35 1 1 12x4 4/11/54 + 6/7/58 185405
|
Ø70x0,2xØ35 70 0,2 35 1 1 12x4 4/11/54 + 6/7/58 185406
|
Ø70x0,5xØ35 70 0,5 35 1 1 12x4 4/11/54 + 6/7/58 185407
|
Ø70x1,0xØ35 70 1,0 35 1 1 12x4 4/11/54 + 6/7/58 185408
|
Ø70x2,0xØ35 70 2,0 35 1 1 12x4 4/11/54 + 6/7/58 185409
|
Ø70x3,0xØ35 70 3,0 35 1 1 12x4 4/11/54 + 6/7/58 185410
|
Ø70x4,0xØ35 70 4,0 35 1 1 12x4 4/11/54 + 6/7/58 185411
|
Ø70x10xØ35 70 10 35 1 1 12x4 4/11/54 + 6/7/58 185412
|
Ø70x25xØ35 70 25 35 1 1 4 spacers 170363
|
Ø100x0,1xØ35 100 0,1 35 1 1 000326
|
Ø100x0,2xØ35 100 0,2 35 1 1 000327
|
Ø100x0,3xØ35 100 0,5 35 1 1 000328
|
Ø100x1,0xØ35 100 1,0 35 1 1 000329
|
Ø100x2,0xØ35 100 2,0 35 1 1 000330
|
Ø100x3,0xØ35 100 3,0 35 1 1 000331
|
Ø70x0,1xØ40 70 0,1 40 1 1 14x3,5 4/8/55 + 4/7/58 185413
|
Ø70x0,2xØ40 70 0,2 40 1 1 14x3,5 4/8/55 + 4/7/58 185414
|
Ø70x0,5xØ40 70 0,5 40 1 1 14x3,5 4/8/55 + 4/7/58 185415
|
Ø70x1,0xØ40 70 1,0 40 1 1 14x3,5 4/8/55 + 4/7/58 185416
|
Ø70x2,0xØ40 70 2,0 40 1 1 14x3,5 4/8/55 + 4/7/58 185417
|
Ø70x3,0xØ40 70 3,0 40 1 1 14x3,5 4/8/55 + 4/7/58 185418
|
Ø70x4,0xØ40 70 4,0 40 1 1 14x3,5 4/8/55 + 4/7/58 185419
|
70x9x40 70 9 40 1 1 177308
|
Ø70x10xØ40 70 10 40 1 1 14x3,5 4/8/55 + 4/7/58 185420
|
70x12x40 70 12 40 1 1 162706
|
70x9x50 70 9 50 1 1 177309
|
70x10x50 70 10 50 1 1 163886
|
70x12x50 70 12 50 1 1 163887
|
Ø120x0,1xØ40 120 0,1 40 1 1 000344
|
Ø120x0,2xØ40 120 0,2 40 1 1 000345
|
Ø120x0,5xØ40 120 0,5 40 1 1 000346
|
Ø120x1,0xØ40 120 1,0 40 1 1 000347
|
Ø120x2,0xØ40 120 2,0 40 1 1 000348
|
Ø90x0,1xØ50 90 0,1 50 1 1 000314
|
Ø90x0,2xØ50 90 0,2 50 1 1 000315
|
Ø90x0,5xØ50 90 0,5 50 1 1 000316
|
Ø90x1,0xØ50 90 1,0 50 1 1 000317
|
Ø90x2,0xØ50 90 2,0 50 1 1 000318
|
Ø90x3,0xØ50 90 3,0 50 1 1 000319
|
Ø100x0,05xØ50 100 0,05 50 1 1 4/9/80 177019
|
Ø100x0,1xØ50 100 0,1 50 1 1 4/9/80 176835
|
Ø100x0,2xØ50 100 0,2 50 1 1 4/9/80 176836
|
Ø100x0,5xØ50 100 0,5 50 1 1 4/9/80 176837
|
Ø100x1,0xØ50 100 1,0 50 1 1 4/9/80 176838
|
Ø100x2,0xØ50 100 2,0 50 1 1 4/9/80 176839
|
Ø100x3,0xØ50 100 3,0 50 1 1 4/9/80 176840
|
Ø90x0,05xØ60 90 0,05 60 1 1 3/9/74 177022
|
Ø90x0,1xØ60 90 0,1 60 1 1 3/9/74 177023
|
Ø90x0,2xØ60 90 0,2 60 1 1 3/9/74 177024
|
Ø90x0,5xØ60 90 0,5 60 1 1 3/9/74 177025
|
Ø90x1,0xØ60 90 1,0 60 1 1 3/9/74 177026
|
Ø90x2,0xØ60 90 2,0 60 1 1 3/9/74 177027
|
Ø100x0,1xØ60 100 0,1 60 1 1 000332
|
Ø100x0,2xØ60 100 0,2 60 1 1 000333
|
Ø100x0,5xØ60 100 0,5 60 1 1 000334
|
Ø100x1,0xØ60 100 1,0 60 1 1 000335
|
Ø100x2,0xØ60 100 2,0 60 1 1 000336
|
Ø100x3,0xØ60 100 3,0 60 1 1 000337
|
Ø119x5,0xØ60 119 5,0 60 1 1 185365
|
Ø119x39,5xØ60 119 39,5 60 1 1 6/9/100 + 2/9/100 185044
|
Ø119,5X51XØ60 NL 119,5 51 60 1 1 4/9/100 119,5x51x60 NL 179471
|
Ø120x0,1xØ60 120 0,1 60 1 1 4/9/100 176830
|
Ø120x0,15xØ60 120 0,15 60 1 1 4/9/100 177018
|
Ø120x0,2xØ60 120 0,2 60 1 1 4/9/100 176831
|
Ø120x0,5xØ60 120 0,5 60 1 1 4/9/100 176832
|
Ø120x1,0xØ60 120 1,0 60 1 1 4/9/100 176495
|
Ø120x2,0xØ60 120 2,0 60 1 1 4/9/100 176833
|
Ø120x3,0xØ60 120 3,0 60 1 1 4/9/100 176834
|
Ø130x4,2xØ60 130 4,2 60 1 1 182200
|
Ø130x4,4xØ60 130 4,4 60 1 1 182202
|
Ø130x4,5xØ60 130 4,5 60 1 1 182203
|
Ø130x5,0xØ60 130 5,0 60 1 1 182208
|
Ø160x0,1xØ60 160 0,1 60 1 1 000452
|
Ø160x0,2xØ60 160 0,2 60 1 1 000453
|
Ø160x0,5xØ60 160 0,5 60 1 1 000454
|
Ø160x1,0xØ60 160 1,0 60 1 1 000455
|
Ø160x2,0xØ60 160 2,0 60 1 1 000456
|
Ø160x3,0xØ60 160 3,0 60 1 1 000457
|
Ø115x1,0xØ80 115 1,0 80 1 1 4/10/100 009255
|
Ø100x7,6xØ70 100 7,6 70 1 1 180940
|
Ø100x11,4xØ70 100 11,4 70 1 1 180941
|
Ø175x7,6xØ70 175 7,6 70 1 1 186163
|
Ø175x11,4xØ70 175 11,4 70 1 1 181034
|
Ø150x1,5xØ75 150 1,6 75 1 1 6/6,5/95 189542
|
Ø120x0,1xØ80 120 0,1 80 1 1 4/9/100 + 2/6,5/90 177380
|
Ø120x0,2xØ80 120 0,2 80 1 1 4/9/100 + 2/6,5/90 177381
|
Ø120x0,5xØ80 120 0,5 80 1 1 4/9/100 + 2/6,5/90 177382
|
Ø120x1,0xØ80 120 1,0 80 1 1 4/9/100 + 2/6,5/90 177383
|
Ø120x2,0xØ80 120 2,0 80 1 1 4/9/100 + 2/6,5/90 177384
|
Ø120x3,0xØ80 120 3,0 80 1 1 4/9/100 + 2/6,5/90 177385
|
Ø130x0,5xØ80 130 0,5 80 1 1 000450
|
Ø145x0,2xØ80 145 0,2 80 1 1 4/12/100 + 4/9/120 552105
|
Ø145x0,5xØ80 145 0,5 80 1 1 4/12/100 + 4/9/120 552106
|
Ø145x1,0xØ80 145 1,0 80 1 1 4/12/100 + 4/9/120 552107
|
