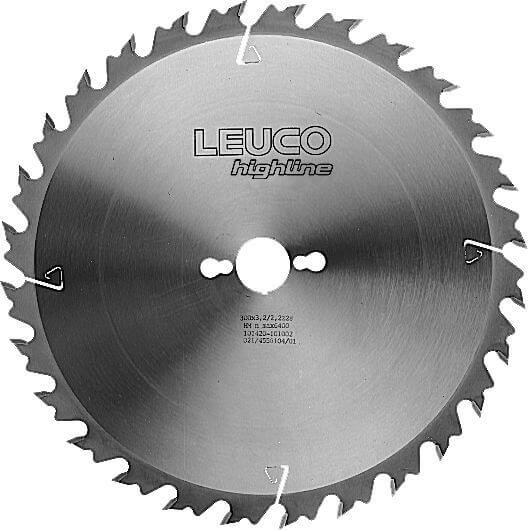

Trimming Saw Blades HW - with chip limiter "WS"
Product

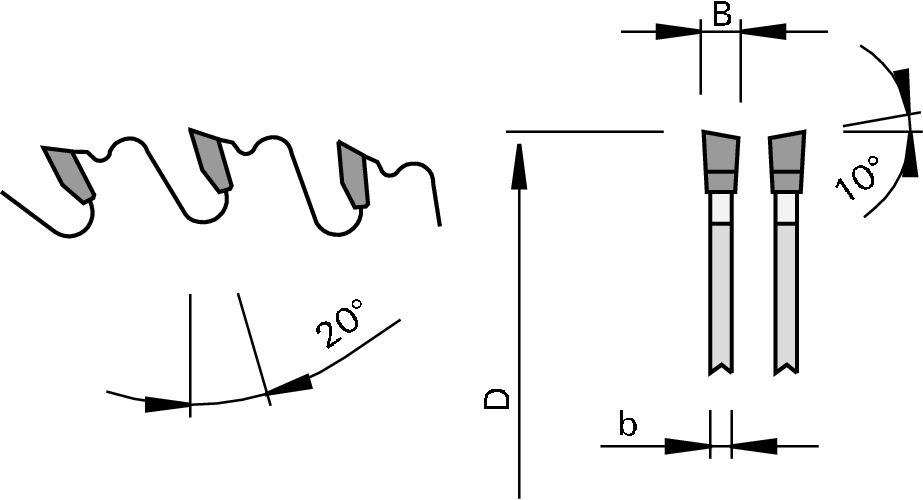

Drawing
-
-
- Tungsten Carbide [HW]
-
Article
Description
Machine / Application
- table saws
- special saws
- for sizing cuts in solid woods
- especially for knotty woods
Design
- tooth configuration: alternate top bevel "WS"
- cutting material: HW HL Board 10
Advantages
- no chipped edges from knots thanks to chip limiter
- noise-reduction thanks to laser ornaments
Notes
- larger bore (max. Ø 80 mm) available for a surcharge
|
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Z | NL |
Hook angle
[°] |
Corner∡
[°] |
Tooth geometry | LEUCODUR | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||||
| 250 | 3,2 | 2.2 | 30 | 24 | 2/7/42 + 2/9,5/46,5 + 2/10/60 | 20 | 10 | WS | HL Board 10 | 189946 | ||
| 300 | 3,2 | 2.2 | 30 | 28 | 2/7/42 + 2/9,5/46,5 + 2/10/60 | 20 | 10 | WS | HL Board 10 | 189947 | ||
| 315 | 3,2 | 2.2 | 30 | 28 | 2/7/42 + 2/9,5/46,5 + 2/10/60 | 20 | 10 | WS | HL Board 10 | 189948 | ||
| 350 | 3,5 | 2.5 | 30 | 32 | 2/7/42 + 2/9,5/46,5 + 2/10/60 | 20 | 10 | WS | HL Board 10 | 189949 | ||
| 400 | 3,5 | 2.5 | 30 | 36 | 2/7/42 + 2/9,5/46,5 + 2/10/60 | 20 | 10 | WS | HL Board 10 | 189950 | ||
| 450 | 3,8 | 2.8 | 30 | 40 | 2/7/42 + 2/9,5/46,5 + 2/10/60 | 20 | 10 | WS | HL Board 10 | 189951 | ||
| 500 | 3,8 | 2.8 | 30 | 44 | 2/7/42 + 2/9,5/46,5 + 2/10/60 | 20 | 10 | WS | HL Board 10 | 189952 | ||
