LEUCO Tool Alternatives for the New LAMELLO® Cabineo Connector

High-end drilling with one stroke: A special LEUCO development for the Cabineo system are the carbide-tipped
High-end drilling with one stroke: A special LEUCO development for the Cabineo system are the carbide-tipped "3-in-1" drills, precisely matched to Cabineo units from various manufacturers.

The new Cabineo is a one-part connector for drilling or milling and is ideal for connecting two bodies through pure surface machining. Machining can be done on any CNC machine either by milling or drilling.


If the customer opts for milling,

the necessary shape can be produced using an end milling cutter with a cutting diameter of Ø10 mm or Ø12. To prevent chipping in the top layer, we recommend a negative twisted VHW finishing cutter, a compression cutter or even a corresponding DP nesting cutter.


Alternatively, users can also opt for HW hinge drill bits

with a diameter of Ø15 mm. LEUCO recommends using the "Light" series cylinder boring bits.

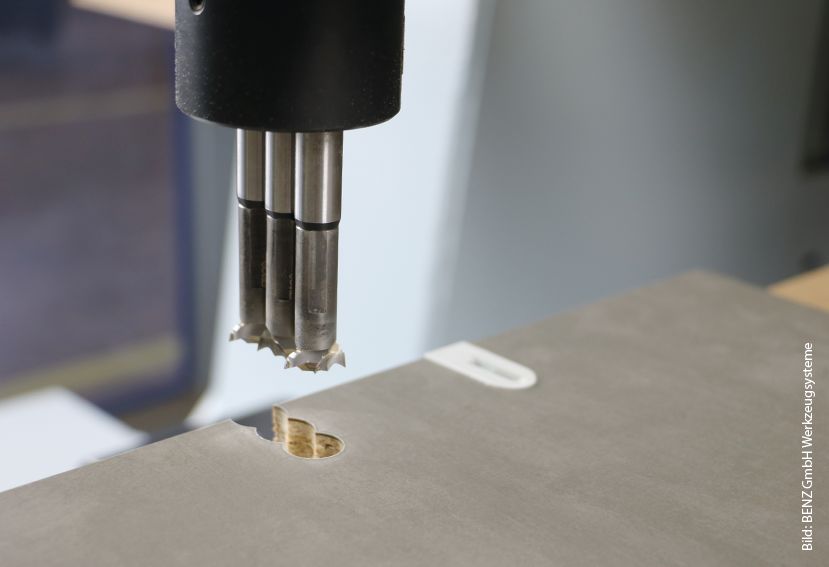

One special LEUCO development for the Cabineo system are the new tungsten carbide-tipped "3-in-1" drill bits.

Designed specifically for the new BENZ Cabineo power unit, they produce the Cabineo contour in just one stroke. The very special geometry of these drill bits offers the best edge hole quality, outstanding chip evacuation, extremely low cutting pressure and the highest possible edge lives.
