3P-Blanks HW (horizontal format)

Product

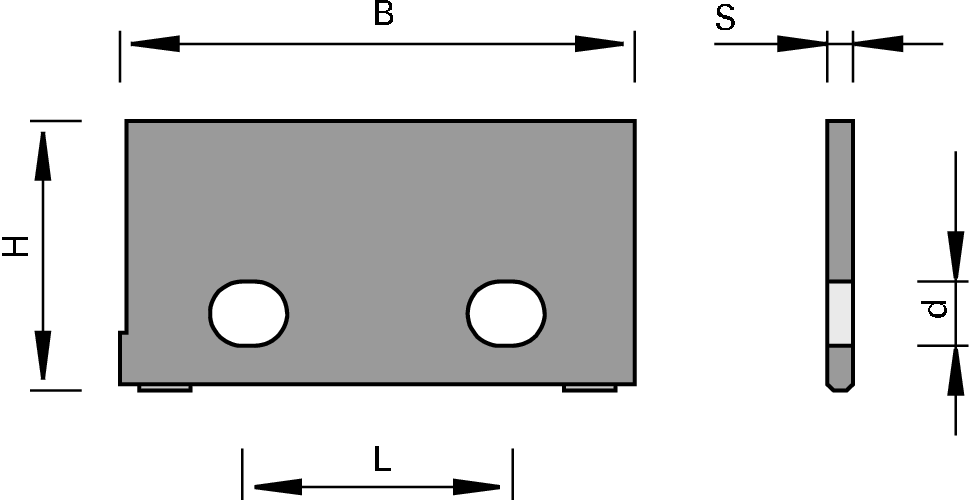

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • for use in LEUCO EcoPro and special cutterheads

Design

  • two-point seating surface and point-stop
  • optionally topline (polished face)
  • cutting material: HW
  • HL Board 06 for wood-based panels, plastics and hard woods
  • HL Solid 60 for soft woods

Advantages

  • precise positioning of the blanks for profiling and of the single-sided profile knife in the cutterhead
  • topline design: highest cutting quality and significantly improved cutting edges

Notes

  • profile knife can be profiled per customer specifications

Table- and picture caption ...

Dimension
[mm]
B
[mm]
H
[mm]
S
[mm]
Ø d
[mm]
L
[mm]
LEUCODUR PU
[pc.]
L/R Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

24x20,9x2 24 20.9 2 4,4 10-14 HL Board 06 10 N 185948
|
30,2 30.4 2 5,0 11,8-13,8 HL Board 06 10 N 178528
|
32,2 35.4 2 5,0 11,8-13,8 HL Board 06 10 N 178530
|
32,8 47.2 2 5,0 11,8-13,8 HL Board 06 10 N 178531
|
35,2 26 2 5,0 11,8-13,8 HL Board 06 10 N 178532
|
40,1 30.4 2 5,0 21,7-25,5 HL Board 06 10 N 178534
|
40,8 36 2 5,0 21,7-25,5 HL Board 06 10 N 178535
|
42,8 36 2 5,0 21,7-25,5 HL Board 06 10 N 178537
|
45,8 36 2 5,0 21,7-25,5 HL Board 06 10 N 178538
|
49,9 33 2 5,0 21,7-25,5 HL Board 06 10 N 178540
|
49,9 40.2 2 5,0 21,7-25,5 HL Board 06 10 N 178541
|
60,6 25.8 2 5,0 26 - 22 HL Board 06 10 N 178542
|
59,8 35.4 2 5,0 25,5+43,2 HL Board 06 10 N 178543
|
80,6 35.8 2 5,0 44 HL Board 06 10 N 178544
|
30,2 30.4 2 5,0 11,8-13,8 HL Solid 60 10 N 179528
|
32,2 35.4 2 5,0 11,8-13,8 HL Solid 60 10 N 179530
|
32,8 47.2 2 5,0 11,8-13,8 HL Solid 60 10 N 179531
|
35,2 26 2 5,0 11,8-13,8 HL Solid 60 10 N 179532
|
40,1 30.4 2 5,0 21,7-25,5 HL Solid 60 10 N 179534
|
40,8 36 2 5,0 21,7-25,5 HL Solid 60 10 N 179535
|
42,8 36 2 5,0 21,7-25,5 HL Solid 60 10 N 179537
|
45,8 36 2 5,0 21,7-25,5 HL Solid 60 20 N 179538
|
49,9 33 2 5,0 21,7-25,5 HL Solid 60 10 N 179540
|
49,2 40.2 2 5,0 21,7-25,5 HL Solid 60 20 N 179541
|
60,6 25.8 2 5,0 26 - 22 HL Solid 60 10 N 179542
|
59,8 35.4 2 5,0 25,5+43,2 HL Solid 60 10 N 179543
|
80,6 35.8 2 5,0 44 HL Solid 60 10 N 179544
|
30,2 30.4 2 5,0 11,8-13,8 HL Board 06 topline 10 L 179585
|
30,2 30.4 2 5,0 11,8-13,8 HL Board 06 topline 10 R 179586
|
32,2 35.4 2 5,0 11,8-13,8 HL Board 06 topline 10 L 179589
|
32,2 35.4 2 5,0 11,8-13,8 HL Board 06 topline 10 R 179590
|
32,8 47.2 2 5,0 11,8-13,8 HL Board 06 topline 10 R 179592
|
35,2 26 2 5,0 11,8-13,8 HL Board 06 topline 10 L 179593
|
35,2 26 2 5,0 11,8-13,8 HL Board 06 topline 10 R 179594
|
40,1 30.4 2 5,0 21,7-25,5 HL Board 06 topline 10 L 179597
|
40,1 30.4 2 5,0 21,7-25,5 HL Board 06 topline 10 R 179598
|
40,8 36 2 5,0 21,7-25,5 HL Board 06 topline 10 L 179599
|
40,8 36 2 5,0 21,7-25,5 HL Board 06 topline 10 R 179600
|
42,8 36 2 5,0 21,7-25,5 HL Board 06 topline 10 L 179603
|
42,8 36 2 5,0 21,7-25,5 HL Board 06 topline 10 R 179604
|
45,8 36 2 5,0 21,7-25,5 HL Board 06 topline 10 L 184895
|
45,8 36 2 5,0 21,7-25,5 HL Board 06 topline 10 R 179606
|
49,9 33 2 5,0 21,7-25,5 HL Board 06 topline 10 L 179609
|
49,9 33 2 5,0 21,7-25,5 HL Board 06 topline 10 R 179610
|
49,9 40.2 2 5,0 21,7-25,5 HL Board 06 topline 10 L 179611
|
49,9 40.2 2 5,0 21,7-25,5 HL Board 06 topline 10 R 179612
|
60,6 25.8 2 5,0 22-26 HL Board 06 topline 10 L 179613
|
60,6 25.8 2 5,0 22-26 HL Board 06 topline 10 R 179614
|
59,8 35.4 2 5,0 25,5+43,2 HL Board 06 topline 10 L 179615
|
59,8 35.4 2 5,0 25,5+43,2 HL Board 06 topline 10 R 179616
|
80,6 35.8 2 5,0 44 HL Board 06 topline 10 L 179617
|
80,6 35.8 2 5,0 44 HL Board 06 topline 10 R 179618
|
30,2 30.4 2 5,0 11,8-13,8 HL Solid 60 topline 10 L 179659
|
30,2 30.4 2 5,0 11,8-13,8 HL Solid 60 topline 10 R 179660
|
32,2 35.4 2 5,0 11,8-13,8 HL Solid 60 topline 10 L 179663
|
32,2 35.4 2 5,0 11,8-13,8 HL Solid 60 topline 10 R 179664
|
32,8 47.2 2 5,0 11,8-13,8 HL Solid 60 topline 10 L 179665
|
32,8 47.2 2 5,0 11,8-13,8 HL Solid 60 topline 10 R 179666
|
35,2 26 2 5,0 11,8-13,8 HL Solid 60 topline 10 L 179667
|
35,2 26 2 5,0 11,8-13,8 HL Solid 60 topline 10 R 179668
|
40,1 30.4 2 5,0 21,7-25,5 HL Solid 60 topline 10 L 179671
|
40,1 30.4 2 5,0 21,7-25,5 HL Solid 60 topline 10 R 179672
|
40,8 36 2 5,0 21,7-25,5 HL Solid 60 topline 10 L 179673
|
40,8 36 2 5,0 21,7-25,5 HL Solid 60 topline 10 R 179674
|
42,8 36 2 5,0 21,7-25,5 HL Solid 60 topline 10 L 179677
|
42,8 36 2 5,0 21,7-25,5 HL Solid 60 topline 10 R 179678
|
45,8 36 2 5,0 21,7-25,5 HL Solid 60 topline 10 L 179679
|
45,8 36 2 5,0 21,7-25,5 HL Solid 60 topline 10 R 179680
|
49,9 33 2 5,0 21,7-25,5 HL Solid 60 topline 10 L 179683
|
49,9 33 2 5,0 21,7-25,5 HL Solid 60 topline 10 R 179684
|
49,9 40.2 2 5,0 21,7-25,5 HL Solid 60 topline 10 L 179685
|
49,9 40.2 2 5,0 21,7-25,5 HL Solid 60 topline 10 R 179686
|
60,6 25.8 2 5,0 22-26 HL Solid 60 topline 10 L 179687
|
60,6 25.8 2 5,0 22-26 HL Solid 60 topline 10 R 179688
|
59,8 35.4 2 5,0 25,5+43,2 HL Solid 60 topline 10 L 179689
|
59,8 35.4 2 5,0 25,5+43,2 HL Solid 60 topline 10 R 179690
|
80,6 35.8 2 5,0 44 HL Solid 60 topline 10 L 179691
|
80,6 35.8 2 5,0 44 HL Solid 60 topline 10 R 179692
|
