Sizing Saw Blades HW for TwinTec Hoggers "F"

Product

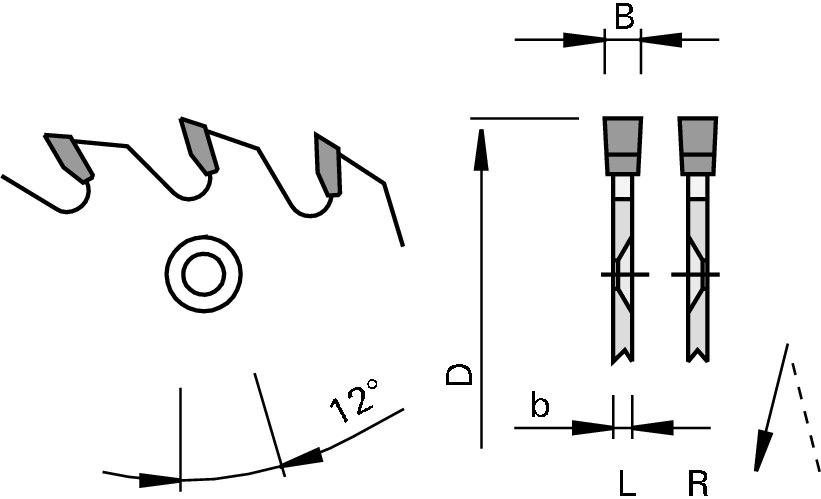

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • double end tenoners
  • edge trimming machines
  • for sizing cuts in laminated and raw panels

Design

  • tooth configuration: flat "F"
  • cutting material: HW HL Board 06

Advantages

Notes

  • sense of rotation see drawing

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z Free slots
[pc.] 		NL Hook angle
[°] 		L/R LEUCODUR Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

220 4,0 2.8 80 48 6 6/6/154 12 R HL Board 06 169819
|
220 4,0 2.8 80 48 6 6/6/154 12 L HL Board 06 169820
|
220 4,0 2.8 80 60 6 6/6/154 12 R HL Board 06 169817
|
220 4,0 2.8 80 60 6 6/6/154 12 L HL Board 06 169818
|
