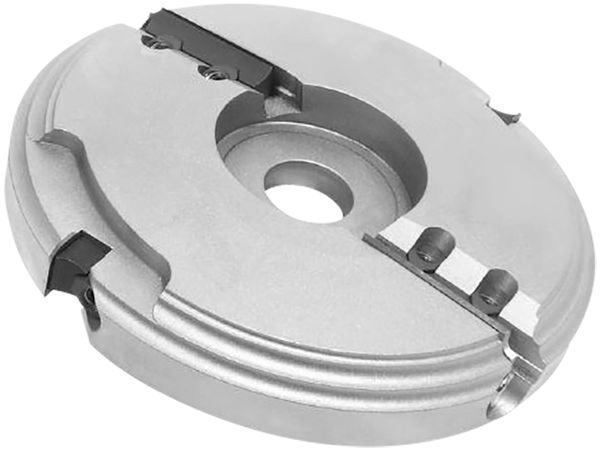

Panel Raising Cutterheads HW - Silverline
Product

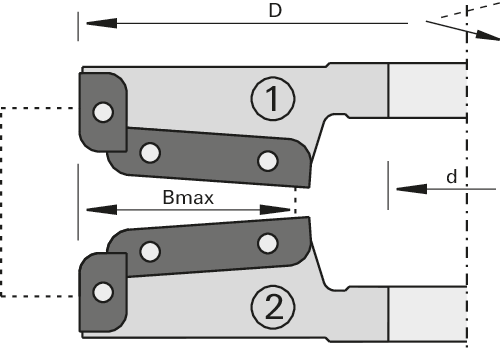

Drawing
-
- Tungsten Carbide [HW]
- MAN
Article
Description
Machine / Application
- spindle moulder
- for panel-raising of door panels in solid woods and wood-based panels
Design
- tool body made from steel
- cutting edges parallel to cutter axis
- cutting material: HW HL Board 05
Advantages
- up to 12 different profiles in the same tool body possible
- further versions possible thanks to height adjustment
Notes
- included in delivery: 1 panel raising cutterhead with mounted knives for profile B (62556021, 62556022)
- alternative profiles not included in delivery
|
Ø D
[mm] |
Bmax
[mm] |
Ø d
[mm] |
Z |
nmin-nmax
[min-1] |
L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||
| 200 | 60 | 30 | 2+2 | 3800 - 6500 | L | 68255130 | ||
| 200 | 60 | 30 | 2+2 | 3800 - 6500 | R | 68255230 | ||
| 200 | 60 | 40 | 2+2 | 3800 - 6500 | L | 68255140 | ||
| 200 | 60 | 40 | 2+2 | 3800 - 6500 | R | 68255240 | ||
| 200 | 60 | 50 | 2+2 | 3800 - 6500 | L | 68255150 | ||
| 200 | 60 | 50 | 2+2 | 3800 - 6500 | R | 68255250 | ||
