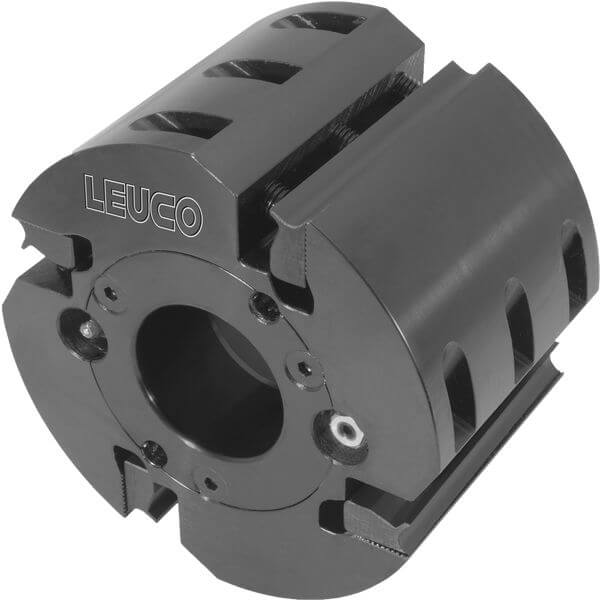

Hydro Profile Cutterheads HS
Product
Drawing
- MEC
Article
Description
Machine / Application
- hydro profile molders
- for profiling of solid woods
Design
- the max. RPM depends from the knife height (see table "Max. RPM")
Advantages
- best cutting quality without knife marks at high feed rates
- precise concentricity tolerance (system Weinig) thanks to dual-chamber Hydro clamping
- high concentric accuracy and low operating vibration
- tight clamping thanks to precise serration (60 degrees, 1.6 mm pitch)
Notes
- adjustable knives
- profile depth and cutting circle Ø see table
- for back-serrated blanks S = 5, 8, 10 mm
- included in delivery: cutterhead and wedges; for blanks see chapter Turnover knives, Profile Knives, Knives
|
Ø D
[mm] |
B
[mm] |
Ø d
[mm] |
Z |
nmax
[min-1] |
Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||
| 137 | 60 | 40 | 4 | 9,000 | 176342 | ||
| 137 | 100 | 40 | 4 | 9,000 | 176343 | ||
| 137 | 130 | 40 | 4 | 9,000 | 176344 | ||
| 137 | 150 | 40 | 4 | 9,000 | 176345 | ||
| 137 | 180 | 40 | 4 | 9,000 | 176346 | ||
| 137 | 230 | 40 | 4 | 9,000 | 176347 | ||
| 150 | 60 | 50 | 4 | 6,000 | 176348 | ||
| 150 | 60 | 50 | 6 | 6,000 | 176349 | ||
| 150 | 100 | 50 | 4 | 6,000 | 176350 | ||
| 150 | 100 | 50 | 6 | 6,000 | 176351 | ||
| 150 | 130 | 50 | 4 | 8,000 | 176352 | ||
| 150 | 130 | 50 | 6 | 8,000 | 176353 | ||
| 150 | 150 | 50 | 4 | 6,000 | 176354 | ||
| 150 | 150 | 50 | 6 | 6,000 | 176355 | ||
| 150 | 180 | 50 | 4 | 8,000 | 176356 | ||
| 150 | 180 | 50 | 6 | 8,000 | 176357 | ||
| 150 | 230 | 50 | 4 | 8,000 | 176358 | ||
| 150 | 230 | 50 | 6 | 6,000 | 176359 | ||
| 150 | 260 | 50 | 4 | 8,000 | 176360 | ||
| 150 | 260 | 50 | 6 | 8,000 | 176361 | ||
| 150 | 310 | 50 | 4 | 8,000 | 176362 | ||
| 150 | 310 | 50 | 6 | 8,000 | 176363 | ||
| 163 | 60 | 50 | 8 | 6,000 | 176364 | ||
| 163 | 100 | 50 | 8 | 6,000 | 176365 | ||
| 163 | 130 | 50 | 8 | 6,000 | 176366 | ||
| 163 | 150 | 50 | 8 | 6,000 | 176367 | ||
| 163 | 180 | 50 | 8 | 6,000 | 176368 | ||
| 163 | 230 | 50 | 8 | 6,000 | 176369 | ||
| 163 | 260 | 50 | 8 | 6,000 | 176370 | ||
| 163 | 310 | 50 | 8 | 6,000 | 176371 | ||
| 195 | 60 | 50 | 10 | 6,000 | 176372 | ||
| 195 | 100 | 50 | 10 | 6,000 | 176373 | ||
| 195 | 130 | 50 | 10 | 6,000 | 176374 | ||
| 195 | 150 | 50 | 10 | 6,000 | 176375 | ||
| 215 | 60 | 50 | 12 | 6,000 | 176380 | ||
| 215 | 100 | 50 | 12 | 6,000 | 176381 | ||
| 215 | 130 | 50 | 12 | 6,000 | 176382 | ||
| 215 | 150 | 50 | 12 | 6,000 | 176383 | ||
