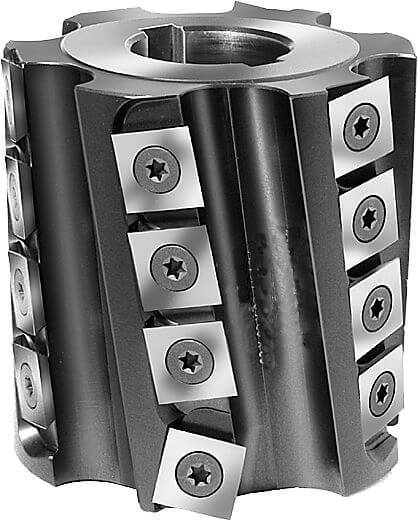

Spiral Cutterheads HW - Steel

Product

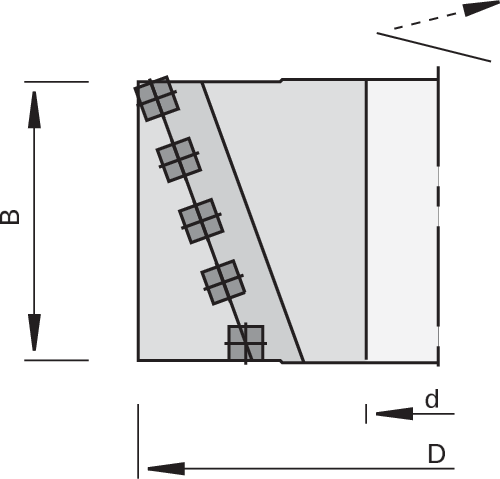

Drawing

  • Tungsten Carbide [HW]
  • MEC

Article

Description

Machine / Application

  • Molders
  • Stationary milling centers
  • For trimming, rough-planing and finish-planing in solid woods

Design

  • With four-sided turnover knives with rounded edges
  • Spiral cutting layout of turnover knives and cut division
  • Tool body made of steel for particularly high loads

Advantages

  • easy hogging, low cutting pressure and low noise level

Notes

  • For a medium quality finish cut

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		Ø d
[mm] 		Z DKN
[mm] 		nmax
[min-1] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

125 80 40 2+2 8x3 12,000 187665
|
125 100 40 2+2 8x3 12,000 187666
|
125 130 40 2+2 8x3 12,000 187667
|
125 180 40 2+2 8x3 12,000 187668
|
125 230 40 2+2 8x3 12,000 187669
|
125 100 40 3+3 8x3 12,000 187670
|
125 130 40 3+3 8x3 12,000 187671
|
125 150 40 3+3 8x3 12,000 187672
|
125 180 40 3+3 8x3 12,000 187673
|
125 230 40 3+3 8x3 12,000 187674
|
125 240 40 3+3 8x3 12,000 187675
|
140 240 40 3+3 8x3 10,700 187676
|
