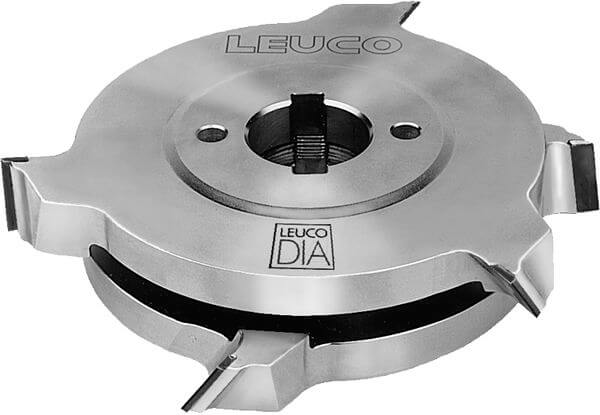

Jointing Cutters DP

Product

Drawing

  • Polycrystalline diamond [DP]
  • MEC

Article

Description

Machine / Application

  • double end tenoners
  • edge banding machines
  • for chip-free jointing of melamine-, paper-, HPL-laminated, foiled and veneered panels

Design

  • resharpenable area 3.5 mm
  • opposing shear angle
  • Ø 150 mm: n max = 12,000 min-1 / Ø 200 mm: n max = 9,000 min-1
  • two-part version with spacer rings

Advantages

  • tool allows for 3 adjustments = four single edge lives between sharpenings

Notes

  • the specified feed rates are based on Ø = 150 mm: n = 9,000 min-1 / Ø = 200 mm: n = 6,000 min-1
  • sense of rotation according to VDMA 8849

Table- and picture caption ...

Ø D
[mm]
B
[mm]
b
[mm]
Ø d
[mm]
Z DKN
[mm]
nmax
[min-1]
Recommended feed
[m/min]
Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

150 22-28 32 30 3+3 8x3 12,000 23 178798
|
200 22-28 32 35 4+4 10x4 9,000 20 178801
|
200 22-28 32 35 5+5 10x4 9,000 25 179073
|
