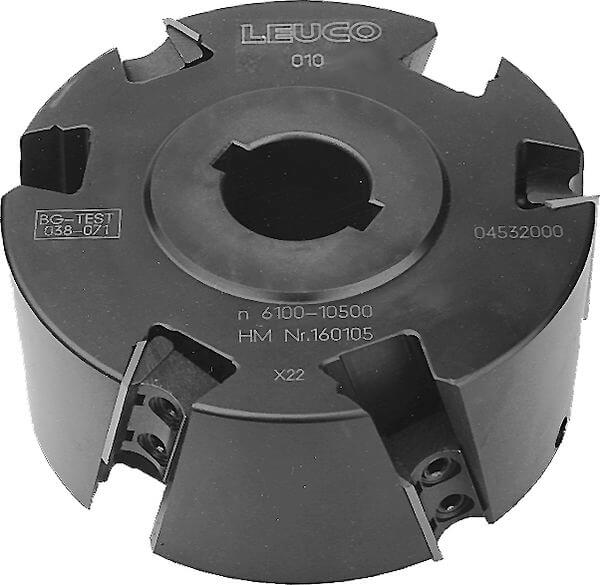

Jointing Cutterheads HW
Product

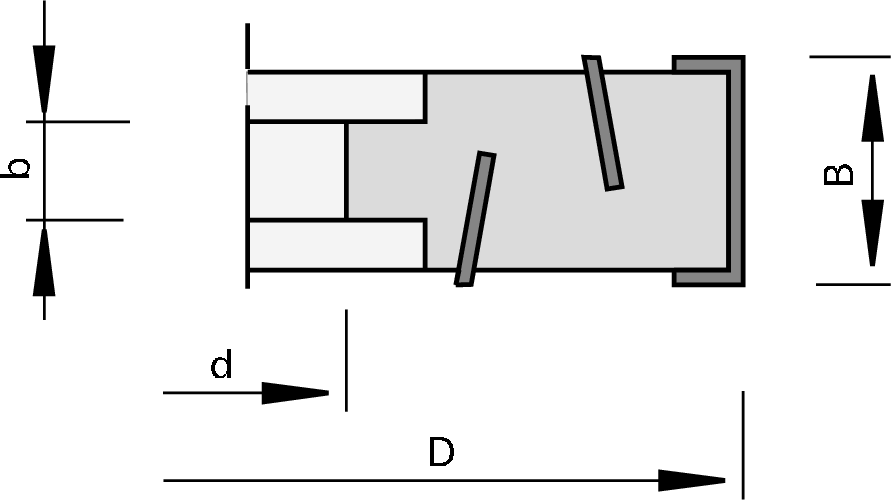

Drawing
-
- Tungsten Carbide [HW]
- MAN
Article
Description
Machine / Application
- table shapers
- for chip-free jointing of plastic-laminated panels
Design
- opposing shear angle
- cutting material: HW HL Board 05
Advantages
Notes
- application against feed with and across the grain
|
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Z |
DKN
[mm] |
nmin-nmax
[min-1] |
L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||
| 100 | 34 | 35 | 30 | 3+3 | 8x3 | 7700-13300 | R | 171972 | ||
| 125 | 56 | 54 | 30 | 3+3 | 8x3 | 6100-10500 | R | 177004 | ||
| 150 | 56 | 54 | 30 | 3+3 | 8x3 | 5200-8800 | R | 177006 | ||
| 180 | 56 | 25 | 35 | 3+3 | 10x4 | 4200-7200 | R | 177002 | ||
