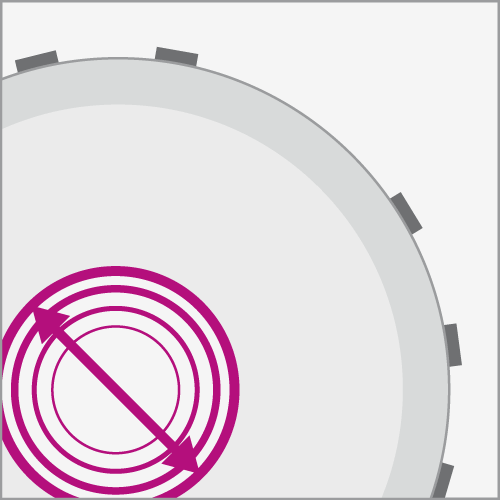

Bore diameter

No. of teeth

Finger joint length

Cutting material group

LEUCO product names

To the product names

Articles found: 2

Your can restrict your selection by using the other filters!

Reset

Selection via tool type

Grooving Cutters HW with spur

Product

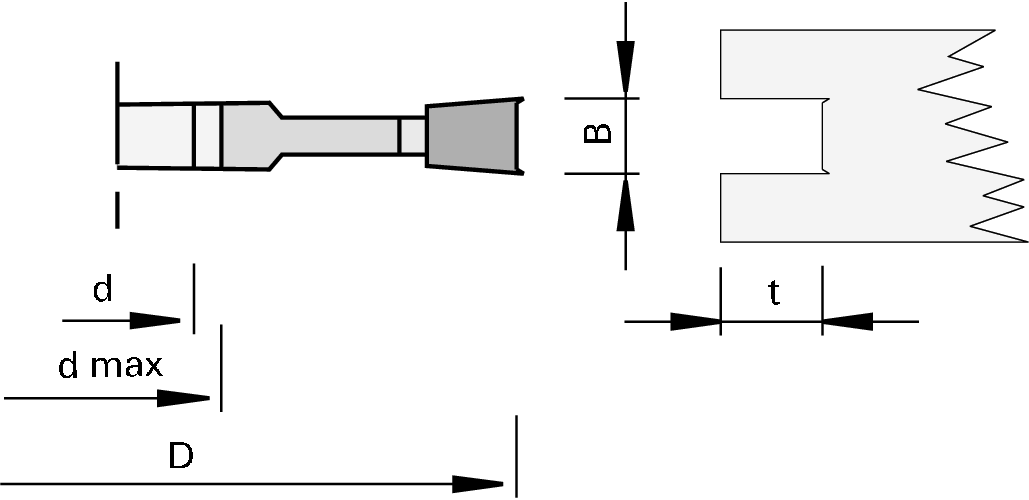

Drawing

  • Tungsten Carbide [HW]
  • MAN

Article

Description

Machine / Application

  • stationary milling centers
  • table shapers against feed
  • for chip-free grooving in solid woods and in wood-based panels

Design

Advantages

Notes

  • application with and across the grain
  • cutting width = hub width

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		Ø d
[mm] 		Ø dmax
[mm] 		Z Tmax
[mm] 		nmin-nmax
[min-1] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

140 4,0 30 50 4+4 33 5400-9000 198032
|
140 10 30 50 4+4 33 5400-9000 198036
|
