Selection via tool type

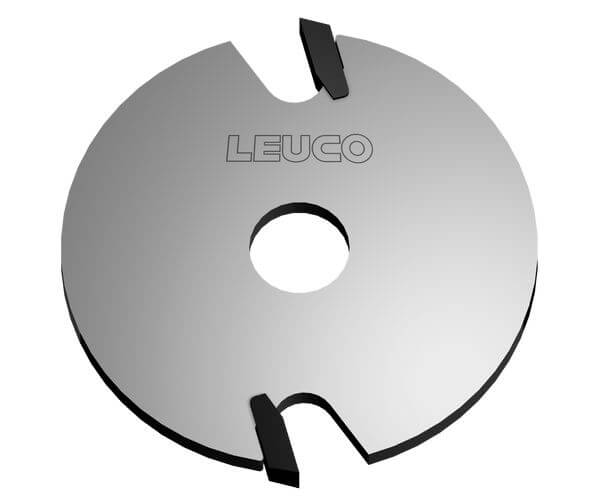

Grooving Cutters HW - portable routers

Product

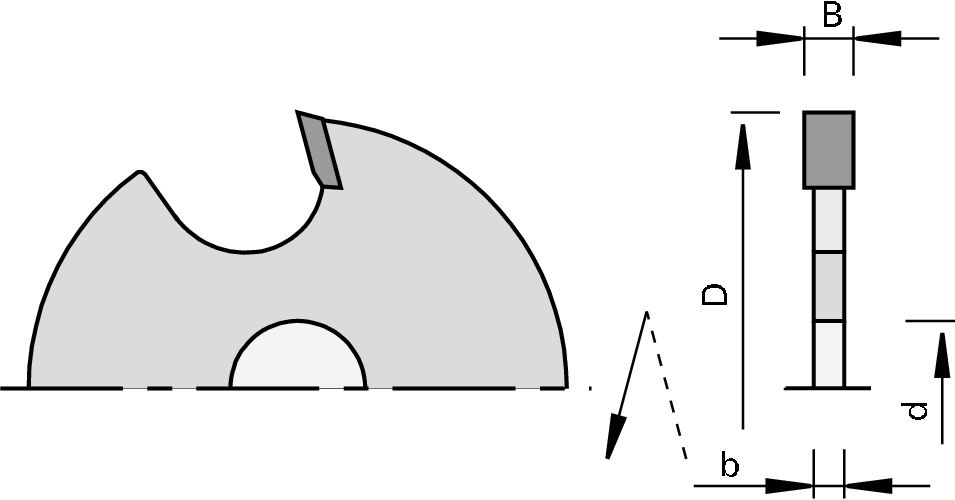

Drawing

  • Tungsten Carbide [HW]
  • MAN

Article

Description

Machine / Application

  • portable routers
  • for grooving in solid woods and wood-based panels

Design

  • two brazed flat-tooth cutting edges

Advantages

Notes

  • clamping elements: cutter arbor

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z nmax
[min-1] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

40 1,8 1 8,0 2 24,000 001367
|
40 2,0 1.2 8,0 2 24,000 001370
|
40 2,5 1.5 8,0 2 24,000 001374
|
40 3,0 2 8,0 2 24,000 001377
|
40 3,5 2.5 8,0 2 24,000 001380
|
40 4,0 3 8,0 2 24,000 001383
|
