Grooving Cutterheads HW - adjustable 8-24 mm

Product

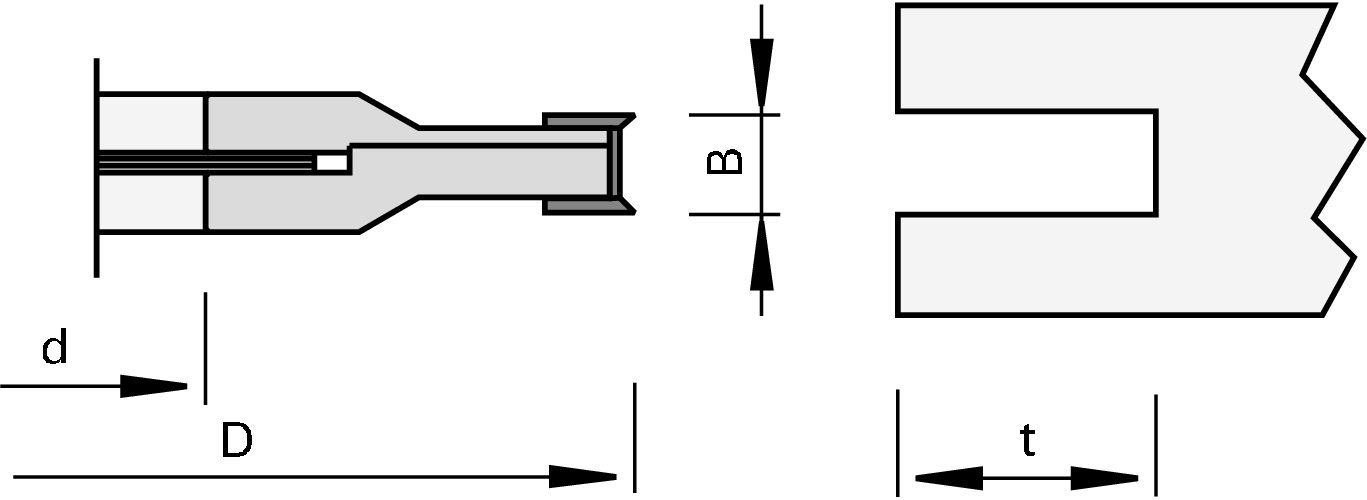

Drawing

  • Tungsten Carbide [HW]
  • MAN

Article

Description

Machine / Application

  • table shapers
  • molders
  • double end tenoners
  • for chip-free grooving in solid woods and in wood-based panels

Design

Advantages

Notes

  • application against feed with and across the grain
  • cutting width 8 - 15 mm and 12,6 - 24 mm two-piece
  • cutting width adjustable with shims in 0.1 mm increments
  • single cutterheads and spacers secured against rotation with pins

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		Ø d
[mm] 		Z Tmax
[mm] 		DKN
[mm] 		nmin-nmax
[min-1] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

180 8,0-15 30 4+4 35 4500-7400 178725
|
180 8,0-15 35 4+4 35 10x4 4500-7400 178726
|
180 8,0-15 40 4+4 35 12x5 4500-7400 178727
|
180 12,6-24 30 4+4 40 4500-7400 178729
|
180 12,6-24 35 4+4 40 10x4 4500-7400 178730
|
180 12,6-24 40 4+4 40 12x5 4500-7400 178731
|
Show 1 to 6 of 6 entries
