Selection via tool type

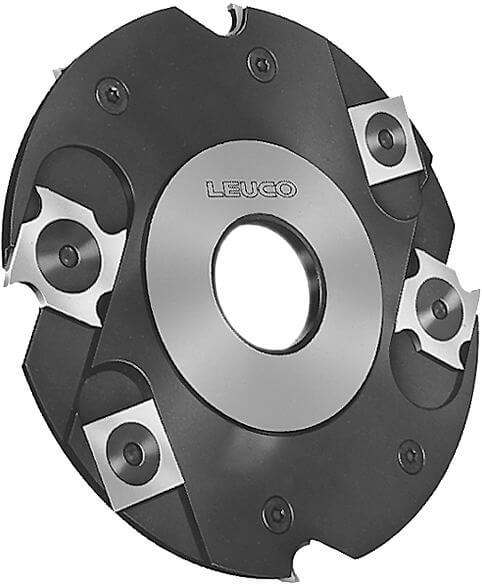

Grooving Cutterheads HW

Product

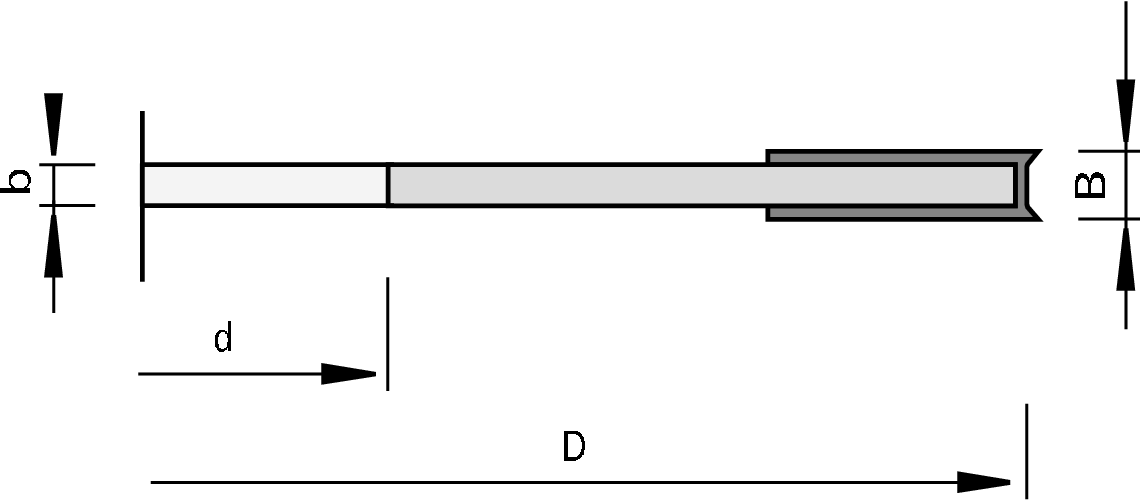

Drawing

  • Tungsten Carbide [HW]
  • MAN

Article

Description

Machine / Application

  • table shapers
  • for chip-free grooving in solid woods and in wood-based panels

Design

Advantages

Notes

  • application against feed with and across the grain

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Ø dmax
[mm] 		Z nmin-nmax
[min-1] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

125 4,0 3 30 40 4+4 6500-11000 167253
|
125 5,0 4 30 40 4+4 6500-11000 165922
|
Show 1 to 2 of 2 entries
