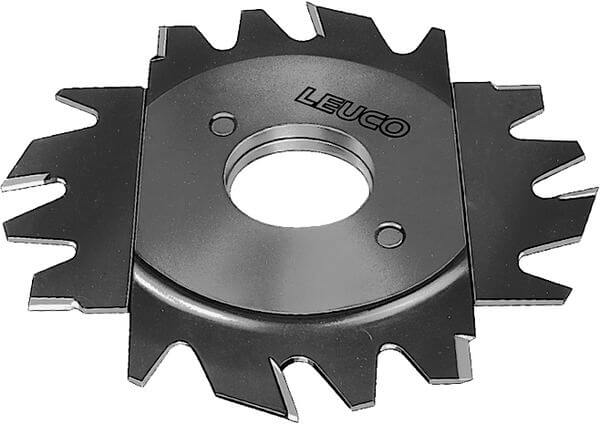

Grooving Cutter Set HW

Product

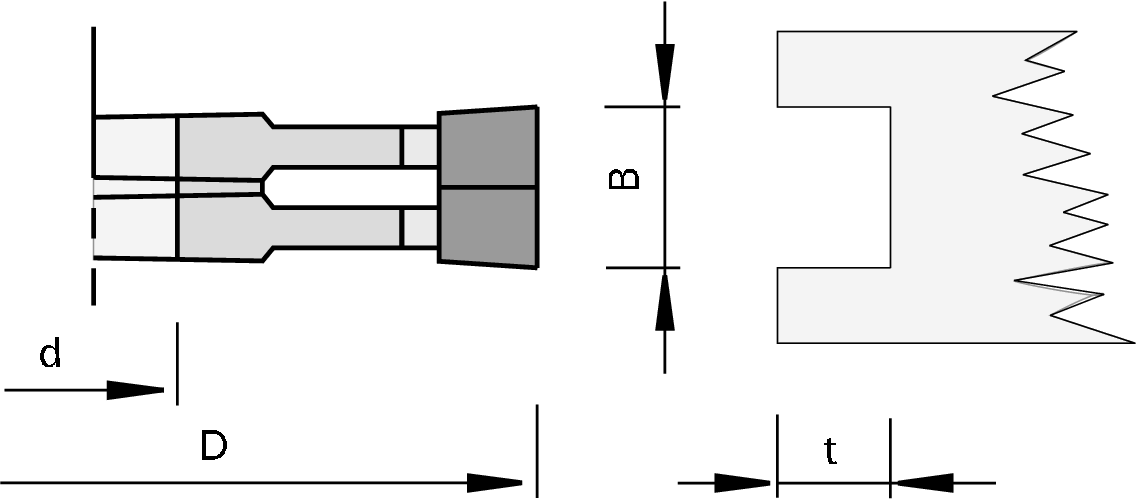

Drawing

  • Tungsten Carbide [HW]
  • MAN

Article

Description

Machine / Application

  • table shapers
  • molders
  • double end tenoners

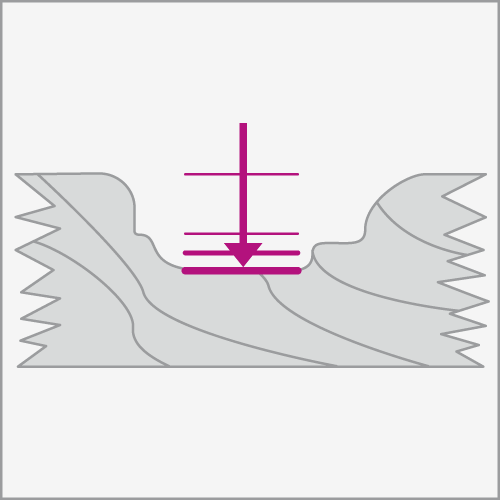

  • for chip-free grooving in solid woods and in wood-based panels

Design

Advantages

Notes

  • application with and across the grain (solid wood)
  • cutting width adjustable with shims in 0.1 mm increments

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		Ø d
[mm] 		Z Tmax
[mm] 		nmin-nmax
[min-1] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

120 1,8 - 3,4 30 4+4 18 6400-10000 006188
|
120 2,2-4,0 30 4+4 18 6400-10000 006189
|
140 2,2-4,0 30 4+4 20 5400-9000 171136
|
150 4,0-7,5 30 4+4 37 5200-9000 006190
|
150 7,5-14,5 30 4+4 37 5200-9000 006191
|
