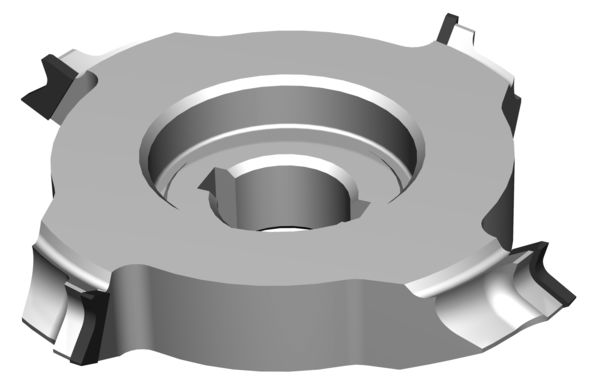

DIAMAX Edge Rounding Cutters DP - Ott HFR 06.2

Product

Drawing

Polycrystalline diamond [DP]
MEC

current tab: current tab: Article

Article

Machine / Application

edge banding machines Ott HFR 06.2
for rounding and flush-cutting of solid wood, veneer and plastic edge bands

Design

polished face
high-finish clearance angle
without shear angle
n max = 23,800 min-1

Advantages

optimum cutting quality

Notes

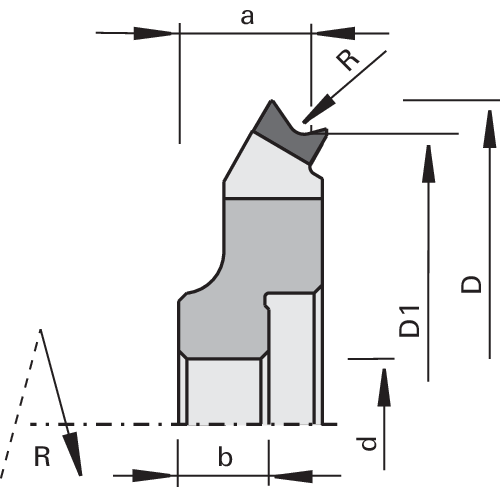

constant basic dimensions a and D1
sense of rotation according to VDMA 8849

Showentries

	R [mm]	Ø D [mm]	Ø D1 [mm]	a [mm]	b [mm]	Ø d [mm]	Z	DKN [mm]	nmax [min-1]	L/R	Machine/Type	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request
	2,0	80	72	15.3	11	16	4	5x2,3	23,800	L	Ott HFR 06.2	185685	\|
	2,0	80	72	15.3	11	16	4	5x2,3	23,800	R	Ott HFR 06.2	185686	\|

Show 1 to 2 of 2 entries
