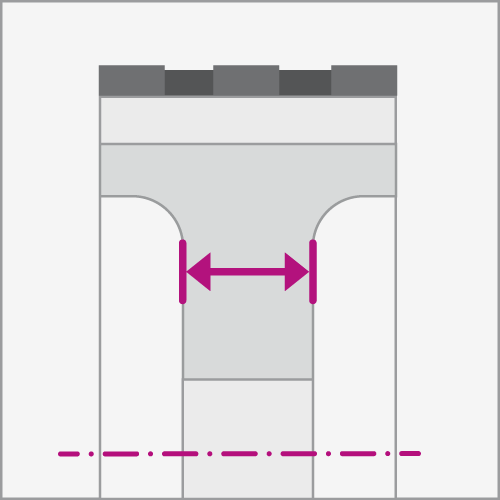

Cutting width

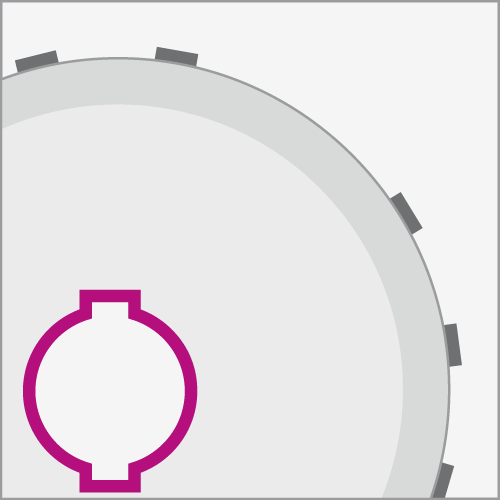

Bore diameter

No. of teeth

Finger joint length

Cutting material group

LEUCO product names

To the product names

Articles found: 2

Your can restrict your selection by using the other filters!

Reset

Selection via tool type

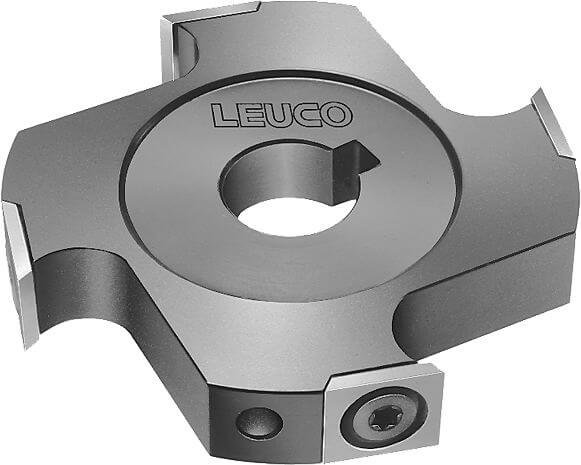

Edge Jointing Cutterheads HW - IMA

Product

Drawing

  • Tungsten Carbide [HW]
  • MEC

Article

Description

Machine / Application

  • edge banding machines
  • for jointing and flush-cutting of solid wood, veneer and plastic edge bands

Design

  • cutting edges parallel to cutter axis
  • cutting material: HW HL Board 05
  • n max = 18,000 min-1

Advantages

Notes

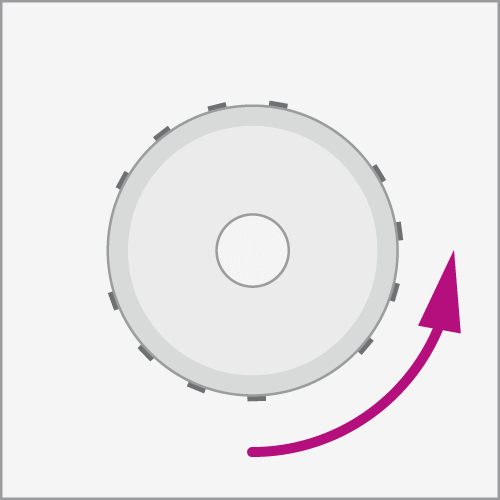

  • sense of rotation according to VDMA 8849

Table- and picture caption ...

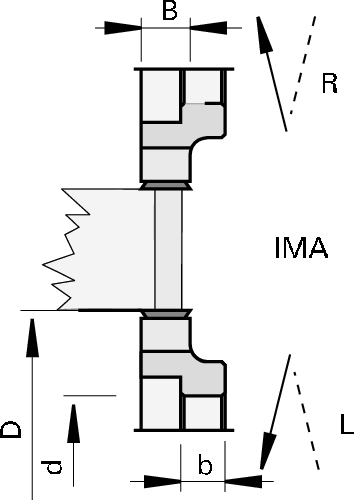

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z DKN
[mm] 		nmax
[min-1] 		L/R Machine/Type Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

70 14,3 13 20 4 6x3,5 18,000 L IMA 172717
|
70 14,3 13 20 4 6x3,5 18,000 R IMA 172718
|
