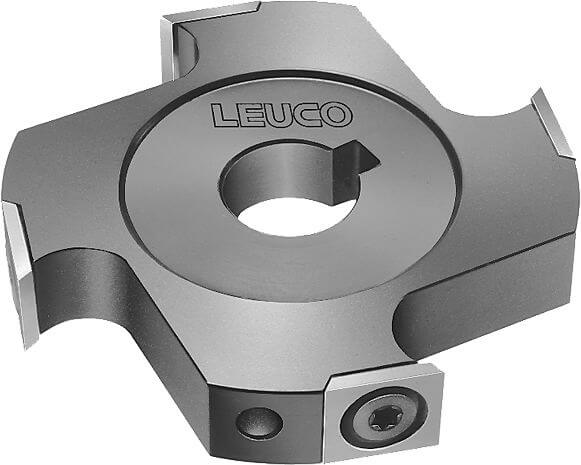

Edge Jointing Cutterheads HW - Homag

Product

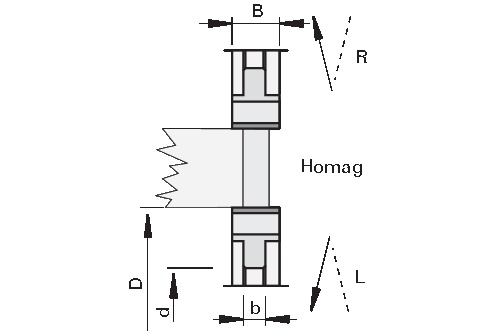

Drawing

  • Tungsten Carbide [HW]
  • MEC

Article

Description

Machine / Application

  • edge banding machines
  • for jointing and flush-cutting of solid wood, veneer and plastic edge bands

Design

  • cutting edges parallel to cutter axis
  • cutting material: HW HL Board 05
  • n max = 18,000 min-1

Advantages

Notes

  • sense of rotation according to VDMA 8849

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z DKN
[mm] 		nmax
[min-1] 		L/R Machine/Type Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

70 14,3 10 16 4 5x2,3 18,000 R Homag 170247
|
70 20 10 16 4 5x2,3 18,000 R Homag 168510
|
Show 1 to 2 of 2 entries
