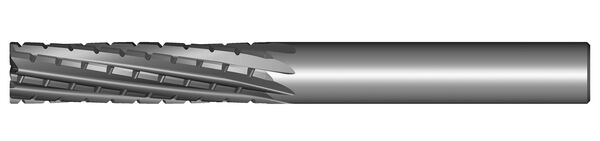

CM140 Multi-Tooth End Mill VHW - CVD coated
Product

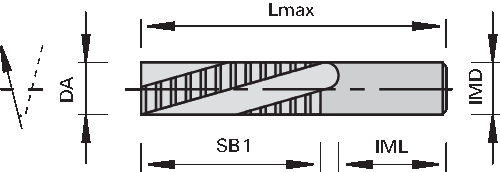

Drawing
-
- Solid Tungsten Carbide
- MEC
Article
Description
Machine / Application
- Can be used on CNC and gantry machines
- for plunge cutting with feed in the direction of the Z, X or Y axis
Design
- Available for pushing and pulling cut
- CVD coated
Advantages
- Special tool geometry for smooth running, even with thin components and difficult workpiece clamping
- Reduced cutting forces thanks to chip breakers and very sharp cutting edges ensure the best machining quality
- Very long edge life due to CVD diamond coating
Notes
- Other dimensions and configurations on request
|
Ø D
[mm] |
L2
[mm] |
Ø d
[mm] |
L3
[mm] |
L1
[mm] |
Z | Helical direction |
Shear∡
[°] |
Type | L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||||
| 6 | 28 | 6 | 43 | 75 | 8 | positive | 10 | A | R | 80492320 | ||
| 6 | 28 | 6 | 33 | 75 | 8 | negative | -10 | A | R | 80492321 | ||
| 8 | 32 | 8 | 38 | 75 | 8 | positive | 10 | A | R | 80492322 | ||
| 8 | 32 | 8 | 28 | 75 | 8 | negative | -10 | A | R | 80492323 | ||
