187841 - CM020 Honeycomb milling cutter VHW - DLC tipped

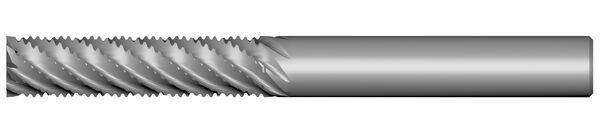

Product

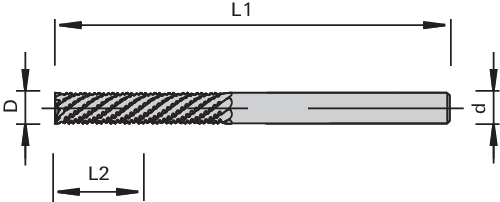

Drawing
-
- Solid Tungsten Carbide
- MEC
Technical data
Description
Machine / Application
- Can be used on CNC and gantry machines or robots
- Suitable for sandwich laminates with CFRP/GFRP top layers and honeycomb core
Design
- Micrograin carbide with DLC coating
Advantages
- Extremely sharp cutting edges ensure a clean separation of the honeycomb core
- Suitable for top layer cutting and for dividing cuts
Notes
- Other dimensions and configurations on request
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 6 [mm] | |
| L2 = Cutting width | 32 [mm] | |
| Ø d = Shank diameter | 6 [mm] | |
| L1 = Total length | 76.2 [mm] | |
| Z = No. of teeth | 8 | |
| Type = Type | A | |
| L/R = cutting direction | R | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
