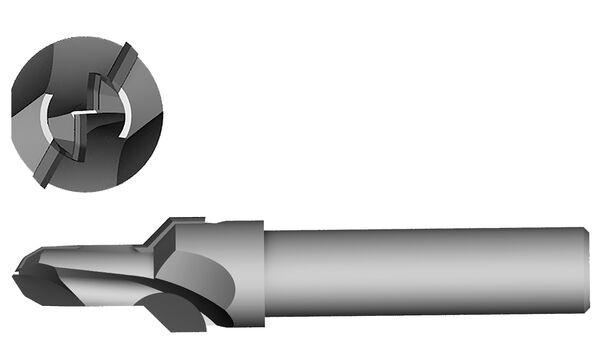

CD070 Boring countersinks 120/60+90 DP
Product

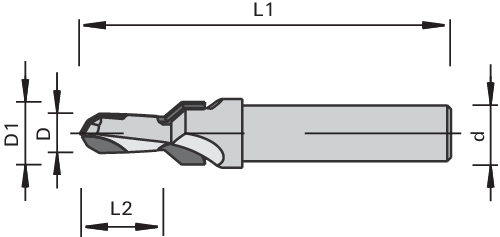

Drawing
-
- Polycrystalline diamond [DP]
- MEC
Article
Description
Machine / Application
- best results on CNC and gantry machines but also suitable for ADUs and MDUs
- For drilling and countersinking in one pass (one-shot)
Design
Advantages
- Reduce the processing times by combining several passes
Notes
- Plunging tip available in DP, Solid DP, complete DP or VHW according to the requirements
|
Ø D
[mm] |
L2
[mm] |
Ø D1
[mm] |
Ø d
[mm] |
L1
[mm] |
Z | L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||
| 12.05 | 45 | 16 | 12 | 120 | 2+2 | R | 187163 | ||
| 8.2 | 45 | 14 | 12 | 120 | 2+2 | R | 187164 | ||
| 8.55 | 14 | 16 | 12 | 80 | 2+2 | R | 187165 | ||
