Accessories for Quick-Clamping Systems
Product

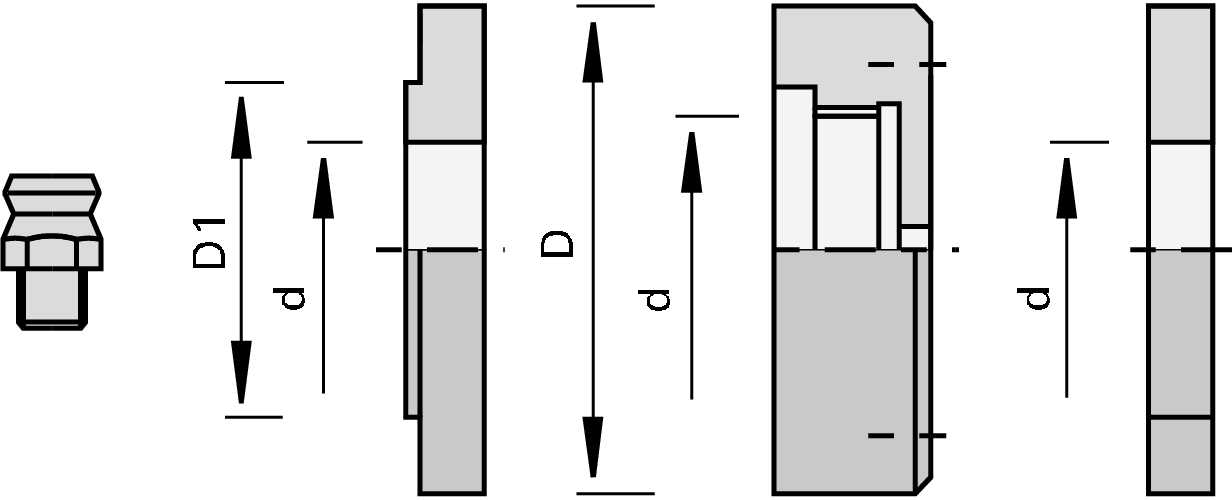

Drawing
Article
Description
Machine / Application
- for engaging or releasing the LEUCO quick-clamping systems
Design
Advantages
Notes
- anti-twist bolt Ident-No. 160875 for mounting
- ring Ident-No. 170363 is required for L = 68 mm if no centering adapter is used
- nut Ident-No. 170364 is required for IMA machines with short shaft
- the pneumatic hose is required to change the tools; must be ordered separately before first delivery of clamping systems
|
MOQ
[pc.] |
PU
[pc.] |
Remarks | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||
| 1 | 1 | hydraulic connector M10x1 (new design) | 180084 | ||
| 1 | 1 | fitting | 161289 | ||

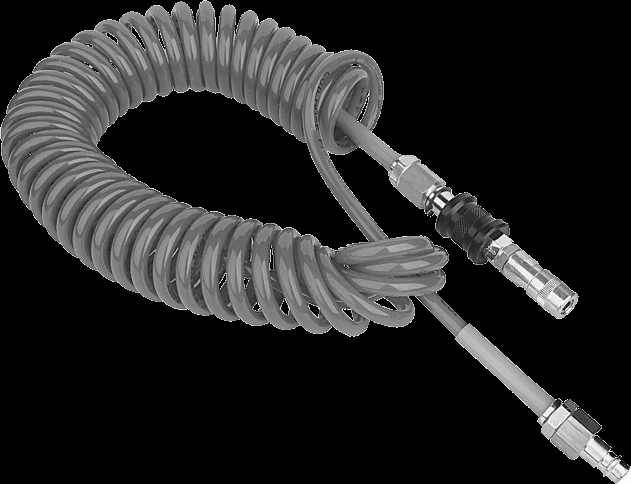

| 1 | 1 | pneumatic hose complete | 058250 | ||
