Adjustment unit - topline - flooring
Product

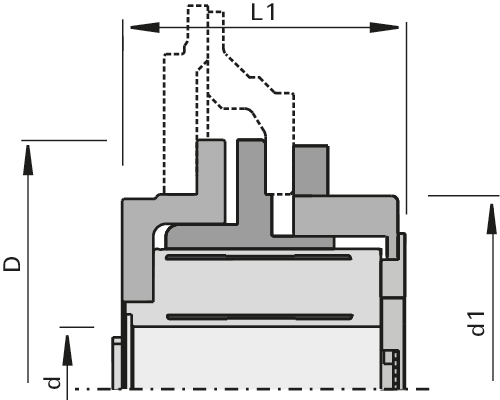

Drawing
Article

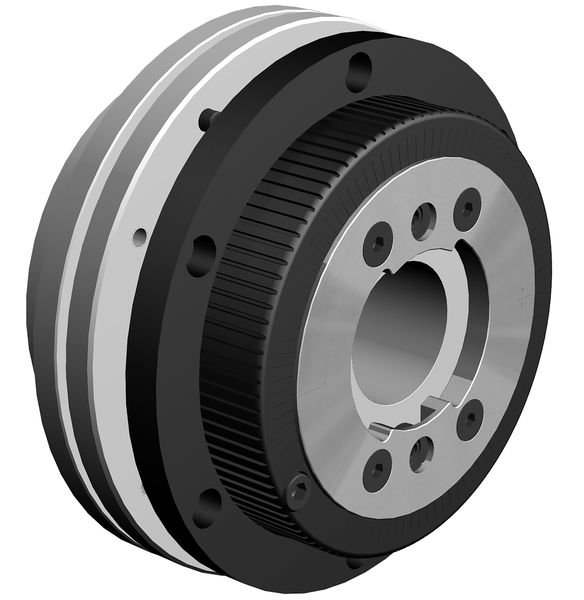

Description
Machine / Application
- through-feed machines
- double end tenoners
- for profiling of the longitudinal and transverse profiles in machining of flooring (laminate, parquet and LVT)
Design
- unit for adjustable 2-part profiling tools
- double clamping zone
- pressurization through axial hydrobushing
Advantages
- tool-independent system, reusable
- adjustment from the top via nut
- concentricity tolerance / run-out tolerance 0.03 mm
Notes
- topline model
- Version without tool
- Included in delivery: bushing, flange
- Cover ident. no. 80500714 is necessary to secure the tool - cover is not included in the delivery
|
L1
[mm] |
Ident-No. | Comp./ Inqu. | |
|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||
| 93.7 | 186416 | ||
