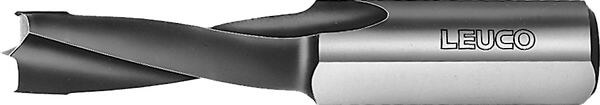

Dowel Bits HW - without back-guide
Article
Description
Machine / Application
- portable boring machines
- automatic boring machines
- CNC machining centers
- for chip-free drilling of dowel holes in solid woods and wood-based panels
Design
- 2 negative spurs
- centering point
- spiral without back guide
- plastic coated
- HW-tipped
Advantages
- chip-free hole edges thanks to negative spurs
- safe drilling thanks to centering point
- optimum chip evacuation thanks to plastic coating
Notes
- adjusting screw Ident-No. 001600 M5x10 DIN 551 for precise length adjustment included in delivery
- adjusting screw Ident-No. 186017 M5x11,5 for Weeke quick clamping chuck must be ordered separately
- clamping elements: combi chuck, quick-change chuck
Ø D
[mm] |
L2
[mm] |
Ø d
[mm] |
L3
[mm] |
L1
[mm] |
Z | L/R | Ident-No. | Comp./ Inqu. | |
---|---|---|---|---|---|---|---|---|---|
Dimensions entered are not listed?
available from stock |
|||||||||
4 | 27 | 10 | 27 | 57.5 | 2+2 | L | 003175 | ||
4 | 27 | 10 | 27 | 57.5 | 2+2 | R | 003174 | ||
4.5 | 27 | 10 | 27 | 57.5 | 2+2 | L | 177228 | ||
4.5 | 27 | 10 | 27 | 57.5 | 2+2 | R | 177227 | ||
5 | 27 | 10 | 27 | 57.5 | 2+2 | L | 003179 | ||
5 | 27 | 10 | 27 | 57.5 | 2+2 | R | 003178 | ||
5.1 | 27 | 10 | 27 | 57.5 | 2+2 | L | 177230 | ||
5.1 | 27 | 10 | 27 | 57.5 | 2+2 | R | 177229 | ||
5.2 | 27 | 10 | 27 | 57.5 | 2+2 | L | 167707 | ||
5.2 | 27 | 10 | 27 | 57.5 | 2+2 | R | 167708 | ||
6 | 27 | 10 | 27 | 57.5 | 2+2 | L | 003183 | ||
6 | 27 | 10 | 27 | 57.5 | 2+2 | R | 003182 | ||
7 | 27 | 10 | 27 | 57.5 | 2+2 | L | 003187 | ||
7 | 27 | 10 | 27 | 57.5 | 2+2 | R | 003186 | ||
8 | 27 | 10 | 27 | 57.5 | 2+2 | L | 003191 | ||
8 | 27 | 10 | 27 | 57.5 | 2+2 | R | 003190 | ||
8.2 | 27 | 10 | 27 | 57.5 | 2+2 | L | 167216 | ||
8.2 | 27 | 10 | 27 | 57.5 | 2+2 | R | 167213 | ||
9 | 27 | 10 | 27 | 57.5 | 2+2 | L | 003195 | ||
9 | 27 | 10 | 27 | 57.5 | 2+2 | R | 003194 | ||
10 | 27 | 10 | 27 | 57.5 | 2+2 | L | 003199 | ||
10 | 27 | 10 | 27 | 57.5 | 2+2 | R | 003198 | ||
10.5 | 27 | 10 | 27 | 57.5 | 2+2 | L | 182261 | ||
10.5 | 27 | 10 | 27 | 57.5 | 2+2 | R | 182262 | ||
11 | 27 | 10 | 27 | 57.5 | 2+2 | L | 177232 | ||
11 | 27 | 10 | 27 | 57.5 | 2+2 | R | 177231 | ||
12 | 27 | 10 | 27 | 57.5 | 2+2 | L | 003207 | ||
12 | 27 | 10 | 27 | 57.5 | 2+2 | R | 003206 | ||
4 | 35 | 10 | 30 | 70 | 2+2 | L | 173175 | ||
4 | 35 | 10 | 30 | 70 | 2+2 | R | 173174 | ||
4.5 | 35 | 10 | 30 | 70 | 2+2 | L | 182263 | ||
4.5 | 35 | 10 | 30 | 70 | 2+2 | R | 182264 | ||
5 | 35 | 10 | 30 | 70 | 2+2 | L | 003231 | ||
5 | 35 | 10 | 30 | 70 | 2+2 | R | 003230 | ||
5.1 | 35 | 10 | 30 | 70 | 2+2 | L | 182265 | ||
5.1 | 35 | 10 | 30 | 70 | 2+2 | R | 182266 | ||
5.5 | 35 | 10 | 30 | 70 | 2+2 | L | 182267 | ||
5.5 | 35 | 10 | 30 | 70 | 2+2 | R | 182268 | ||
6 | 35 | 10 | 30 | 70 | 2+2 | L | 003235 | ||
6 | 35 | 10 | 30 | 70 | 2+2 | R | 003234 | ||
7 | 35 | 10 | 30 | 70 | 2+2 | L | 167224 | ||
7 | 35 | 10 | 30 | 70 | 2+2 | R | 167219 | ||
7.5 | 35 | 10 | 30 | 70 | 2+2 | L | 182271 | ||
7.5 | 35 | 10 | 30 | 70 | 2+2 | R | 182272 | ||
8 | 35 | 10 | 30 | 70 | 2+2 | L | 003243 | ||
8 | 35 | 10 | 30 | 70 | 2+2 | R | 003242 | ||
8.1 | 35 | 10 | 30 | 70 | 2+2 | L | 182273 | ||
8.1 | 35 | 10 | 30 | 70 | 2+2 | R | 182274 | ||
8.2 | 35 | 10 | 30 | 70 | 2+2 | L | 182275 | ||
8.2 | 35 | 10 | 30 | 70 | 2+2 | R | 182276 | ||
8.5 | 35 | 10 | 30 | 70 | 2+2 | L | 182277 | ||
8.5 | 35 | 10 | 30 | 70 | 2+2 | R | 182278 | ||
9 | 35 | 10 | 30 | 70 | 2+2 | L | 167225 | ||
9 | 35 | 10 | 30 | 70 | 2+2 | R | 167220 | ||
10 | 35 | 10 | 30 | 70 | 2+2 | L | 003251 | ||
10 | 35 | 10 | 30 | 70 | 2+2 | R | 003250 | ||
10.2 | 35 | 10 | 30 | 70 | 2+2 | L | 182279 | ||
10.2 | 35 | 10 | 30 | 70 | 2+2 | R | 182280 | ||
11 | 35 | 10 | 30 | 70 | 2+2 | L | 167226 | ||
11 | 35 | 10 | 30 | 70 | 2+2 | R | 167221 | ||
12 | 35 | 10 | 30 | 70 | 2+2 | L | 167227 | ||
12 | 35 | 10 | 30 | 70 | 2+2 | R | 167222 | ||
13 | 35 | 10 | 30 | 70 | 2+2 | L | 183042 | ||
13 | 35 | 10 | 30 | 70 | 2+2 | R | 183043 | ||
14 | 35 | 10 | 30 | 70 | 2+2 | L | 183044 | ||
14 | 35 | 10 | 30 | 70 | 2+2 | R | 183045 | ||
16 | 35 | 10 | 30 | 70 | 2+2 | L | 183046 | ||
16 | 35 | 10 | 30 | 70 | 2+2 | R | 183047 | ||
5 | 44 | 10 | 30 | 77 | 2+2 | L | 167233 | ||
5 | 44 | 10 | 30 | 77 | 2+2 | R | 167228 | ||
6 | 44 | 10 | 30 | 77 | 2+2 | L | 167234 | ||
6 | 44 | 10 | 30 | 77 | 2+2 | R | 167229 | ||
8 | 44 | 10 | 30 | 77 | 2+2 | L | 167235 | ||
8 | 44 | 10 | 30 | 77 | 2+2 | R | 167230 | ||
10 | 44 | 10 | 30 | 77 | 2+2 | L | 167236 | ||
10 | 44 | 10 | 30 | 77 | 2+2 | R | 167231 | ||
12 | 44 | 10 | 30 | 77 | 2+2 | L | 173181 | ||
12 | 44 | 10 | 30 | 77 | 2+2 | R | 173180 |
