180868 - Boring Countersink HW
Product
Drawing
-
- Tungsten Carbide [HW]
- MAN
Technical data
Description
Machine / Application
- portable boring machines
- automatic boring machines
- for drilling and countersinking in solid woods and wood-based panels
Design
- spiral PTFE coated
- 2 spurs
- centering point
Advantages
- for drilling and countersinking in one pass
- safe drilling thanks to centering point
Notes
- adjusting screw Ident-No. 001600 M5x10 DIN 551 for precise length adjustment included in delivery
- adjusting screw Ident-No. 186017 M5x11,5 for Weeke quick clamping chuck must be ordered separately
- clamping elements: combi chuck, quick-clamping chuck
| Feature | Value | |
|---|---|---|
| Ø D = Bore diameter | 10 [mm] | |
| L2 = Effective length | 20 [mm] | |

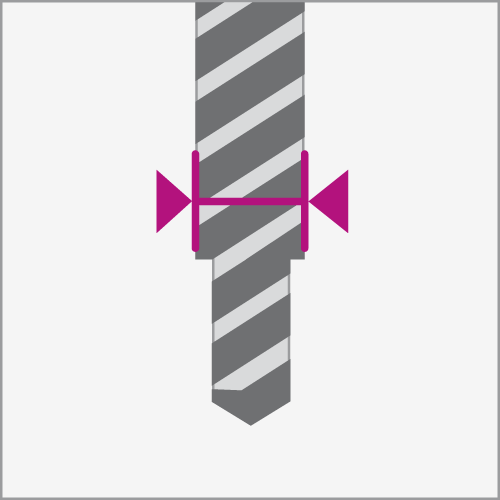

| Ø D1 = Bore diameter 1 | 16 [mm] | |

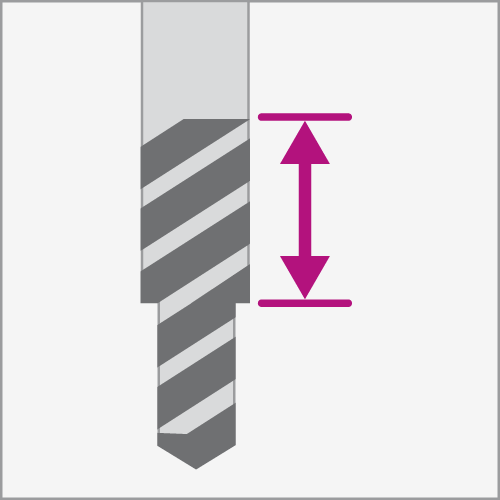

| L4 = Effective length 2 | 15 [mm] | |
| Ø d = Shank diameter | 10 [mm] | |
| L1 = Total length | 70 [mm] | |
| Z = No. of teeth | 2+2 | |
| L/R = cutting direction | R | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
