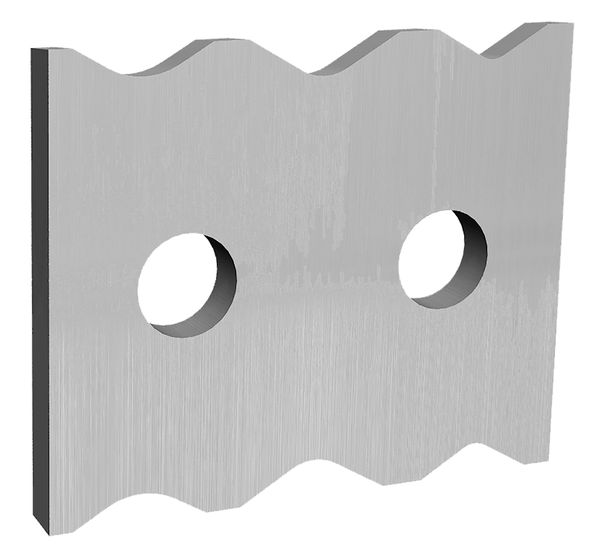

Multi Scraper Knives HW - IMA

Product

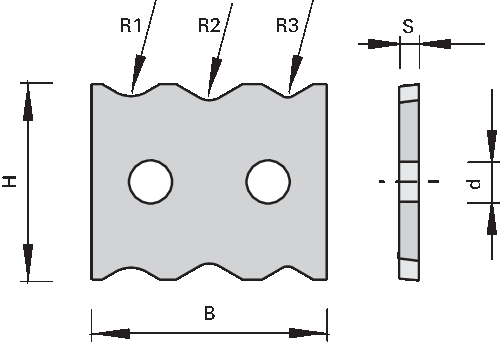

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • edge banding machines IMA - Aggregate 08.516
  • for use in scraper holders
  • for scraping of standard edge bandings such as PP / PVC / ABS

Design

  • up to 4 different profile combinations in one scraper
  • cutting material: HW
  • HL Board 06 for wood-based materials, plastics and hard woods

Advantages

  • up to 4 profiles without tool change

Notes

  • other special profile combinations are available!

Table- and picture caption ...

R1
[mm]
R2
[mm]
R3
[mm]
Chamfer∡
[°]
B
[mm]
H
[mm]
S
[mm]
Ø d
[mm]
L
[mm]
LEUCODUR PU
[pc.]
Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting.

available from stock
available on short notice
Delivery time on request

3 2 1 24 20 2 4,4 12 HL Board 06 2 187339
|
2 1.5 1 45 24 20 2 4,4 12 HL Board 06 2 187340
|
