Planing Knives HS

Product

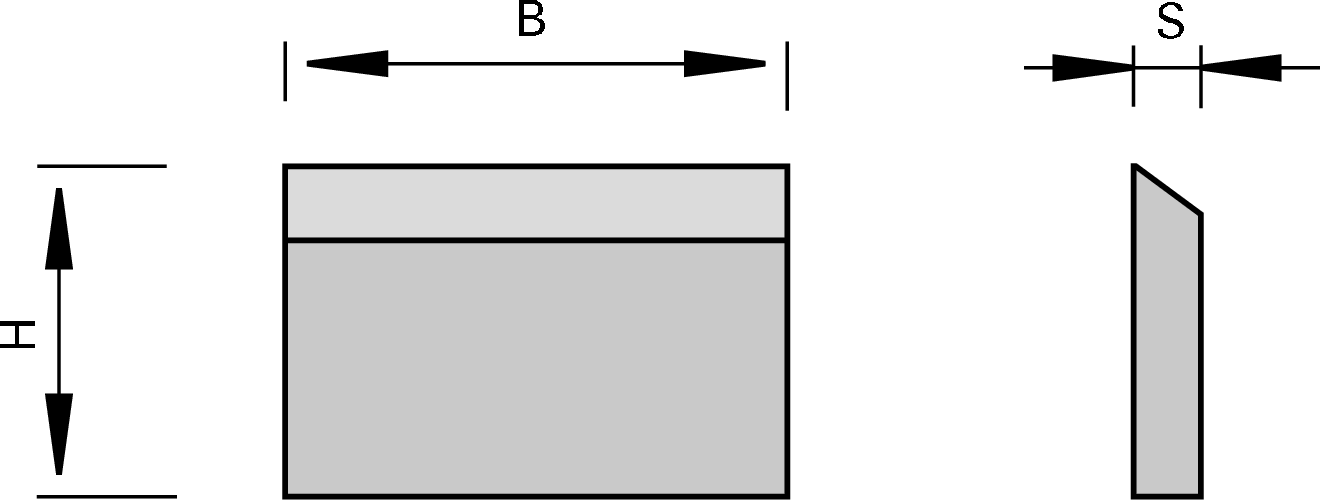

Drawing

  • High Speed Steel [HS]

Article

Description

Machine / Application

  • for use in planing cutterheads

Design

  • cutting material: high speed steel (HS 18%) for soft woods
  • wedge angle 40°
  • topcoat coating

Advantages

Notes

  • from safety reasons please always mount knives with equal weight (packing unit VE) opposite each other

Table- and picture caption ...

Dimension
[mm]
B
[mm]
H
[mm]
S
[mm]
LEUCODUR PU
[pc.]
Remarks Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting.

available from stock
available on short notice
Delivery time on request

60 30 3 HS 2 160593
|
80 30 3 HS 2 160594
|
100 30 3 HS 2 055647
|
110 30 3 HS 2 160595
|
120 30 3 HS 2 160596
|
130 30 3 HS 2 006139
|
150 30 3 HS 2 160597
|
170 30 3 HS 2 160598
|
180 30 3 HS 2 160599
|
210 30 3 HS 2 160600
|
230 30 3 HS 2 160601
|
260x30x3 260 30 3 HS 2 006485
|
310 30 3 HS 2 160602
|
310 35 3 HS 2 165310
|
320 30 3 HS 2 160603
|
320 35 3 HS 2 165311
|
330 30 3 HS 2 160604
|
330 35 3 HS 2 165312
|
360 30 3 HS 2 160605
|
360 35 3 HS 2 165313
|
400 30 3 HS 2 165307
|
400 35 3 HS 2 165314
|
410x30x3 410 30 3 HS 2 006486
|
410x35x3 410 35 3 HS 2 006487
|
450 30 3 HS 2 160606
|
450 35 3 HS 2 165315
|
460 30 3 HS 2 160607
|
460 35 3 HS 2 165316
|
500 30 3 HS 2 165308
|
500 35 3 HS 2 165317
|
510x30x3 510 30 3 HS 2 006488
|
510x35x3 510 35 3 HS 2 006489
|
600 30 3 HS 2 165309
|
600 35 3 HS 2 165318
|
610x30x3 610 30 3 HS 2 006490
|
610x35x3 610 35 3 HS 2 006491
|
630 30 3 HS 2 160608
|
630 35 3 HS 2 165319
|
635 35 3 HS 2 165320
|
640 30 3 HS 2 160609
|
640 35 3 HS 2 165321
|
700 35 3 HS 2 165322
|
710 30 3 HS 2 160610
|
710 35 3 HS 2 165323
|
740 35 3 HS 2 165324
|
810 30 3 HS 2 160612
|
810 35 3 HS 2 165325
|
840 30 3 HS 2 160613
|
1050 25 3 HS 2 185843
|
1050 30 3 HS 2 176331
|
1050 35 3 HS 2 176332
|
60 30 3 HS 10 topcoat 185554
|
80 30 3 HS 10 topcoat 185555
|
100 30 3 HS 10 topcoat 185556
|
120 30 3 HS 10 topcoat 185558
|
130 30 3 HS 10 topcoat 185559
|
150 30 3 HS 10 topcoat 185560
|
170 30 3 HS 10 topcoat 185561
|
180 30 3 HS 10 topcoat 185562
|
210 30 3 HS 10 topcoat 185563
|
230 30 3 HS 10 topcoat 185564
|
260 30 3 HS 10 topcoat 185565
|
310 30 3 HS 10 topcoat 185566
|
310 35 3 HS 10 topcoat 185567
|
320 30 3 HS 10 topcoat 185568
|
330 35 3 HS 10 topcoat 185571
|
400 30 3 HS 10 topcoat 185574
|
410 30 3 HS 10 topcoat 185576
|
410 35 3 HS 10 topcoat 185577
|
500 30 3 HS 10 topcoat 185582
|
500 35 3 HS 10 topcoat 185583
|
510 30 3 HS 10 topcoat 185584
|
510 35 3 HS 10 topcoat 185585
|
610 30 3 HS 10 topcoat 185588
|
610 35 3 HS 10 topcoat 185589
|
630 30 3 HS 10 topcoat 185590
|
630 35 3 HS 10 topcoat 185591
|
640 30 3 HS 10 topcoat 185593
|
640 35 3 HS 10 topcoat 185594
|
