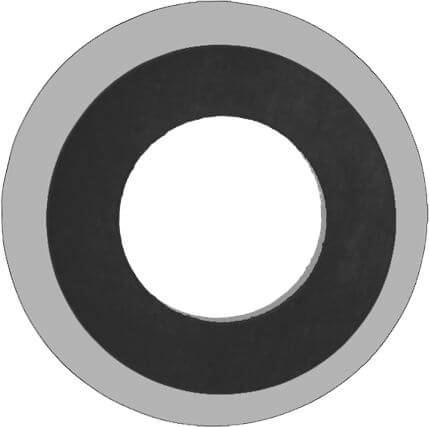

Cup Knives HW

Product

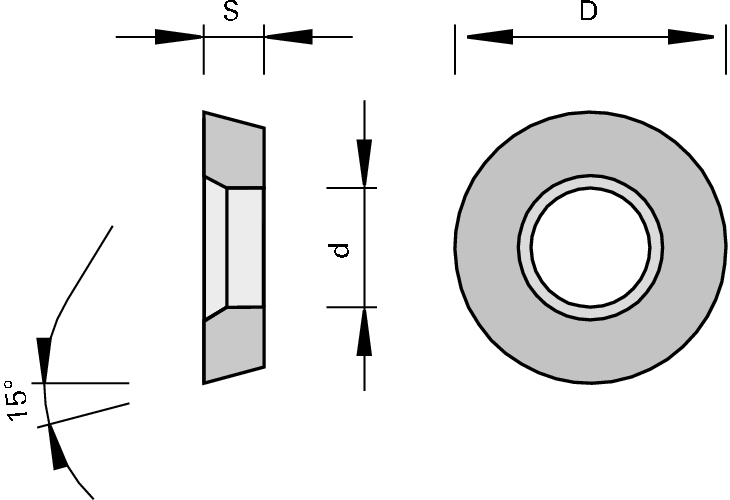

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • for use in side-and-face cutterheads

Design

  • cutting material: HW
  • HL Board 03 for wood-based panels and plastics

Advantages

  • extremely long edge lives

Notes

  • packing unit: 10 pieces

Table- and picture caption ...

Dimension
[mm] 		Ø D
[mm] 		S
[mm] 		Ø d
[mm] 		LEUCODUR PU
[pc.] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting.

available from stock
available on short notice
Delivery time on request

11x4x5 11 4 5,0 HL Board 03 10 173396
|
