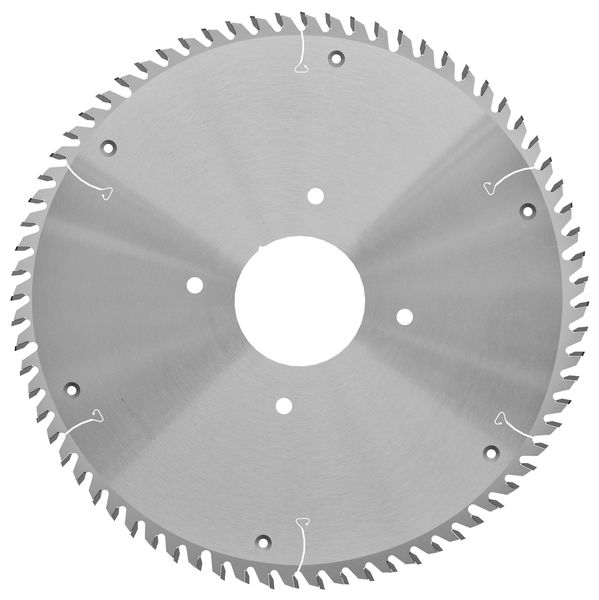

Circular Saw Blades HW for Segment Hoggers "WS"

Product

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • double end tenoners
  • edge trimming machines
  • for sizing cuts in raw and laminated panels

Design

  • tooth configuration: ATB "WS"
  • cutting material: HW HL Board 06

Advantages

  • optimum cutting quality and edge life

Notes

  • with pin holes for LEUCO Segment Hoggers
  • sense of rotation acc. to VDMA 8849

Table- and picture caption ...

Ø D
[mm]
B
[mm]
b
[mm]
Ø d
[mm]
Z NL Hook angle
[°]
Corner∡
[°]
L/R LEUCODUR Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting.

available from stock
available on short notice
Delivery time on request

355 4,4 3 80 72 6/5,5/300 + 4/10/130 10 15 L HL Board 06 189055
|
355 4,4 3 80 72 6/5,5/300 + 4/10/130 10 15 R HL Board 06 189054
|
