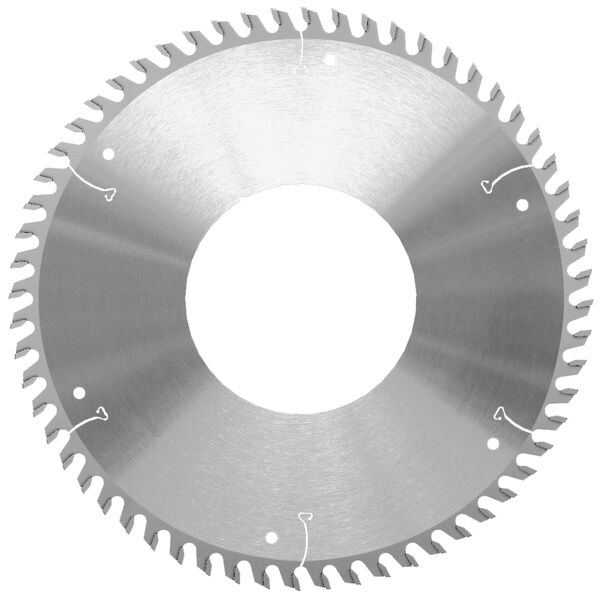

Circular Saw Blades HW for Segment Hoggers "ES"
Product
Drawing
-
-
- Tungsten Carbide [HW]
Article
Description
Machine / Application
- double end tenoners
- edge trimming machines
- for sizing cuts in raw and laminated panels
Design
- with and without shear angle
- tooth configuration: top bevel "ES (right + left)"
- cutting material: HW HL Board 06
Advantages
- optimum cutting quality and edge life
Notes
- with pin holes for LEUCO Segment Hoggers
- sense of rotation acc. to VDMA 8849
|
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Z | NL |
Hook angle
[°] |
Corner∡
[°] |
L/R | LEUCODUR | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||||
| 305 | 4,4 | 2.8 | 120 | 60 | 6/6/250 | 10 | 15 | R | HL Board 06 | 80500199 | ||
| 305 | 4,4 | 2.8 | 120 | 60 | 6/6/250 | 10 | 15 | L | HL Board 06 | 80500200 | ||
