Hydro Profile Cutterheads HS

Product

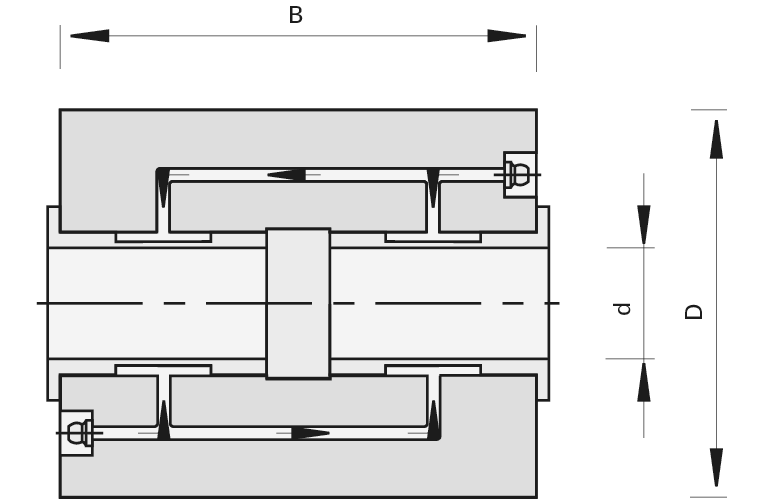

Drawing

  • MEC

Article

Description

Machine / Application

  • hydro profile molders
  • for profiling of solid woods

Design

  • the max. RPM depends from the knife height (see table "Max. RPM")

Advantages

  • best cutting quality without knife marks at high feed rates
  • precise concentricity tolerance (system Weinig) thanks to dual-chamber Hydro clamping
  • high concentric accuracy and low operating vibration
  • tight clamping thanks to precise serration (60 degrees, 1.6 mm pitch)

Notes

  • adjustable knives
  • profile depth and cutting circle Ø see table
  • for back-serrated blanks S = 5, 8, 10 mm
  • included in delivery: cutterhead and wedges; for blanks see chapter Turnover knives, Profile Knives, Knives

Table- and picture caption ...

Ø D
[mm]
B
[mm]
Ø d
[mm]
Z nmax
[min-1]
Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting.

available from stock
available on short notice
Delivery time on request

137 60 40 4 9,000 176342
|
