Planing Cutterheads HS with Weinig HSK and Centrolock clamping bar
Product

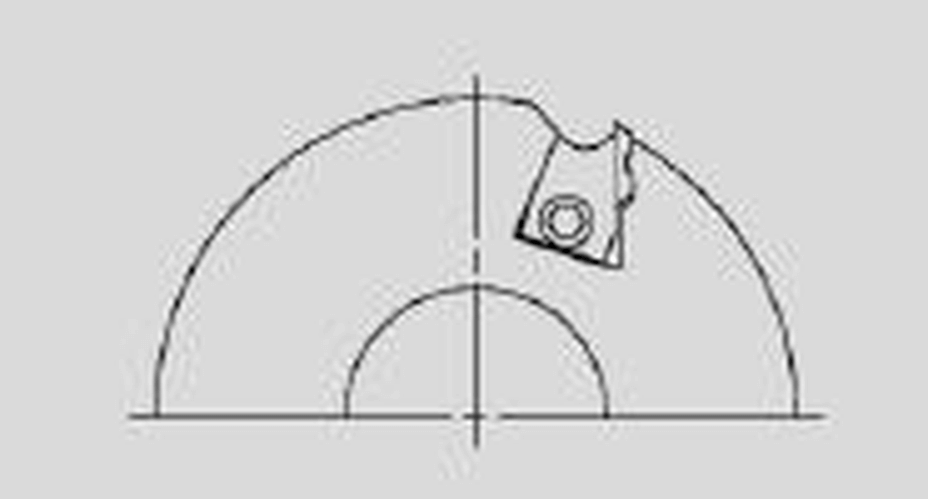

Drawing
- High Speed Steel [HS]
- MEC
Article
Description
Machine / Application
- molders "Weinig Powermat"
- for planing of solid woods
Design
- n max = 12,000 min-1
Advantages
- quick knife change thanks to Centrolock clamping bar
Notes
- clamping by means of front screw
- HS-tipped turnover knives
- alternative cutting material: HW for hard woods, glued timber and MDF
- picture shows sense of rotation left (acc. to DIN left)
- Turnover Knives see chapter Turnover Knives, Knives, Inserts
|
Ø D
[mm] |
B
[mm] |
Ø d
[mm] |
Z |
Hook angle
[°] |
nmax
[min-1] |
L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||
| 93 | 60 | Weinig-HSK | 2 | 27 | 12,000 | L | 181728 | ||
| 93 | 80 | Weinig-HSK | 2 | 27 | 12,000 | L | 181729 | ||
| 93 | 100 | Weinig-HSK | 2 | 27 | 12,000 | L | 181730 | ||
| 93 | 130 | Weinig-HSK | 2 | 27 | 12,000 | L | 181731 | ||
| 93 | 150 | Weinig-HSK | 2 | 27 | 12,000 | L | 181732 | ||
| 93 | 170 | Weinig-HSK | 2 | 27 | 12,000 | L | 181733 | ||
| 93 | 190 | Weinig-HSK | 2 | 27 | 12,000 | L | 181734 | ||
| 93 | 210 | Weinig-HSK | 2 | 27 | 12,000 | L | 181735 | ||
| 93 | 240 | Weinig-HSK | 2 | 27 | 12,000 | L | 181736 | ||
| 93 | 60 | Weinig-HSK | 2 | 27 | 12,000 | R | 181737 | ||
| 93 | 80 | Weinig-HSK | 2 | 27 | 12,000 | R | 181738 | ||
| 93 | 100 | Weinig-HSK | 2 | 27 | 12,000 | R | 181739 | ||
| 93 | 130 | Weinig-HSK | 2 | 27 | 12,000 | R | 181740 | ||
| 93 | 150 | Weinig-HSK | 2 | 27 | 12,000 | R | 181741 | ||
| 93 | 170 | Weinig-HSK | 2 | 27 | 12,000 | R | 181742 | ||
| 93 | 190 | Weinig-HSK | 2 | 27 | 12,000 | R | 181743 | ||
| 93 | 210 | Weinig-HSK | 2 | 27 | 12,000 | R | 181744 | ||
| 93 | 240 | Weinig-HSK | 2 | 27 | 12,000 | R | 181745 | ||
