Edge Rounding Cutterheads HW

Product

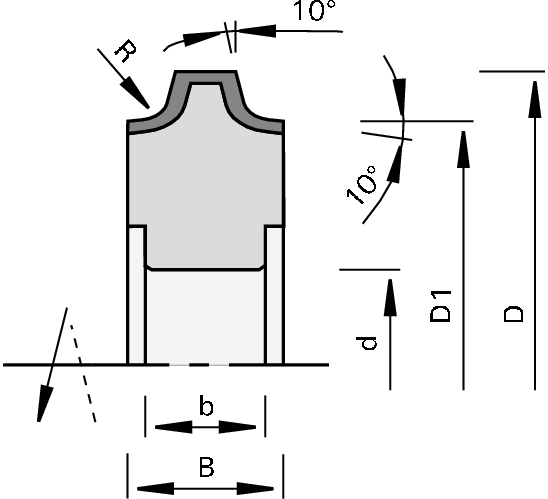

Drawing

  • Tungsten Carbide [HW]
  • MEC

Article

Description

Machine / Application

  • edge banding machines
  • for rounding of solid wood, veneer and plastic edge bands

Design

  • cutting edges parallel to cutter axis
  • cutting material: HW HL Board 05
  • n max = 18,000 min-1

Advantages

Notes

  • for clockwise and counter-clockwise rotation
  • sense of rotation according to VDMA 8849

Table- and picture caption ...

R
[mm] 		Ø D
[mm] 		Ø D1
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z DKN
[mm] 		nmax
[min-1] 		Machine/Type Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting.

available from stock
available on short notice
Delivery time on request

2,0 57 50 12 12 16 2 5x2,3 18,000 HOLZ-HER 170338
|
3,0 57 50 12 12 16 2 5x2,3 18,000 HOLZ-HER 170339
|
2,0 58 50 12 10 16 4 5x2,3 18,000 Brandt 177030
|
3,0 58 50 12 10 16 4 5x2,3 18,000 Brandt 177031
|
2,0 62 50 16 10 16 2 5x2,3 18,000 HOLZ-HER 179997
|
3,0 62 50 16 10 16 2 5x2,3 18,000 HOLZ-HER 169241
|
5,0 62 50 16 10 16 2 5x2,3 18,000 HOLZ-HER 169243
|
2,0 73 61 16 11 16 3 5x2,3 18,000 Homag, Ott 171128
|
3,0 73 61 16 11 16 3 5x2,3 18,000 Homag, Ott 171129
|
4,0 73 61 16 11 16 3 5x2,3 18,000 Homag, Ott 171130
|
5,0 73 61 16 11 16 3 5x2,3 18,000 Homag, Ott 171131
|
6,0 81 61 24 11 16 3 5x2,3 18,000 Homag, Ott 170254
|
8,0 81 61 24 11 16 3 5x2,3 18,000 Homag, Ott 170256
|
9,0 81 61 24 11 16 3 5x2,3 18,000 Homag, Ott 170257
|
2,0 78 70 16 11 16 4 5x2,3 18,000 Brandt 182086
|
2,0 82 70 16 11 16 4 5x2,3 18,000 Brandt 170192
|
3,0 82 70 16 11 16 4 5x2,3 18,000 Brandt 170193
|
4,0 82 70 16 11 16 4 5x2,3 18,000 Brandt 170194
|
5,0 82 70 16 11 16 4 5x2,3 18,000 Brandt 170195
|
2,0 73 61 16 11 20 3 6x2,8 18,000 HOLZ-HER 171132
|
3,0 73 61 16 11 20 3 6x2,8 18,000 HOLZ-HER 171133
|
4,0 73 61 16 11 20 3 6x2,8 18,000 HOLZ-HER 171134
|
5,0 73 61 16 11 20 3 6x2,8 18,000 HOLZ-HER 171135
|
2,0 82 70 16 11 20 4 6x2,8 18,000 IMA, Wilmsmeyer 166882
|
3,0 82 70 16 11 20 4 6x2,8 18,000 IMA, Wilmsmeyer 166881
|
4,0 82 70 16 11 20 4 6x2,8 18,000 IMA, Wilmsmeyer 166880
|
5,0 82 70 16 11 20 4 6x2,8 18,000 IMA, Wilmsmeyer 166879
|
