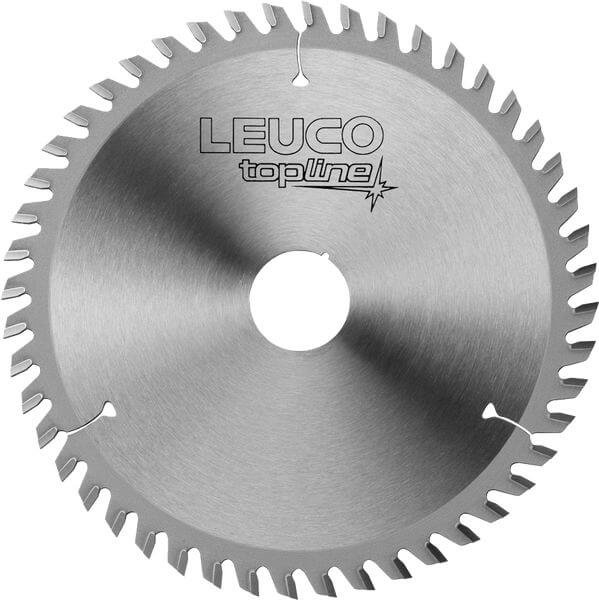

188501 - Scoring Saw Blades HW "WS"
Product

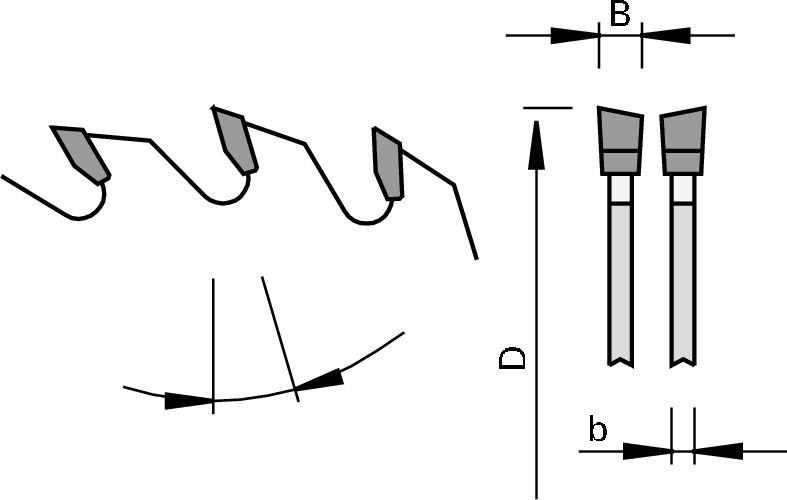

Drawing
-
-
- Tungsten Carbide [HW]
Technical data
Description
Machine / Application
- panel sizing saws with controllable scoring device
- for scoring of plastic-laminated postforming panels
Design
- tooth configuration: alternate top bevel "WS"
- cutting material: HW HL Board 06
Advantages
Notes
- cutting width consistently .2 mm wider than the main saw kerf
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 340 [mm] | |
| B = Cutting width | 5,0 [mm] | |
| b = Body thickness | 3.5 [mm] | |
| Ø d = Bore diameter | 45 [mm] | |
| Z = No. of teeth | 108 | |
| Hook angle = Hook angle | 0 [°] | |
| Corner∡ = Corner angle | 20 [°] | |
| Tooth geometry = Tooth configuration | WS | |
| LEUCODUR = Cutting material | HL Board 06 | |
| L = Delivery Status | ||
| Machine/Type | Holzma | |
|
Dimensions entered are not listed?
available from stock |
||
