Grooving Saw Blades DP
Product

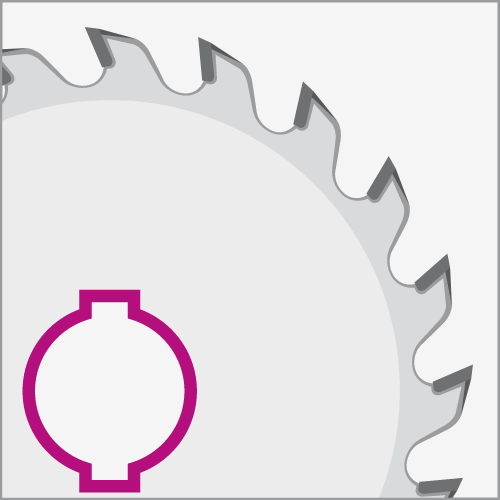

Drawing
-
- Polycrystalline diamond [DP]
- MEC
Article
Description
Machine / Application
- double end tenoners
- edge banding machines
- for chip-free grooving in solid woods and in wood-based panels
Design
- resharpenable area 3.5 mm
- tooth configuration: flat
Advantages
Notes
- application with feed
- number of teeth depends on the feed rate, the material to be cut and the desired cutting quality
|
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Z |
DKN
[mm] |
nmax
[min-1] |
Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||
| 180 | 4,0 | 3 | 35 | 12 | 10x4 | 10,000 | 178194 | ||
| 180 | 4,0 | 3 | 35 | 18 | 10x4 | 10,000 | 178195 | ||
| 180 | 4,0 | 3 | 35 | 24 | 10x4 | 10,000 | 178196 | ||
| 180 | 5,0 | 4 | 35 | 18 | 10x4 | 10,000 | 178197 | ||
| 180 | 5,0 | 4 | 35 | 24 | 10x4 | 10,000 | 178198 | ||
| 180 | 6,0 | 5 | 35 | 12 | 10x4 | 10,000 | 178199 | ||
| 180 | 6,0 | 5 | 35 | 18 | 10x4 | 10,000 | 178200 | ||
| 180 | 6,0 | 5 | 35 | 24 | 10x4 | 10,000 | 178201 | ||
| 180 | 8,0 | 7 | 35 | 12 | 10x4 | 10,000 | 178202 | ||
| 180 | 8,0 | 7 | 35 | 18 | 10x4 | 10,000 | 178203 | ||
| 180 | 8,0 | 7 | 35 | 24 | 10x4 | 10,000 | 178204 | ||
| 180 | 5,0 | 4 | 35 | 12 | 10x4 | 10,000 | 178205 | ||
