Through-Hole Bits VHW - topline
Product

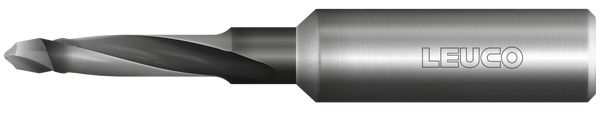

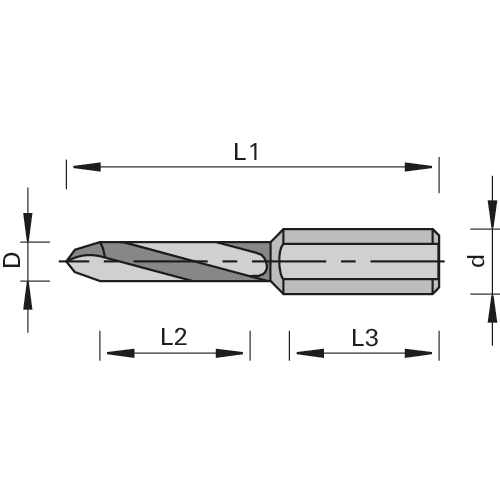

Drawing
-
-
- Solid Tungsten Carbide
- MAN
Article
Description
Machine / Application
- automatic boring machines
- CNC machining centers
- for drilling of through-holes in solid woods and wood-based panels
Design
- cylindrical shank with clamping surface
- special cutting edge geometry
- boring part made from fine-grain solid tungsten carbide
Advantages
- considerably increased edge lives compared to traditional through-hole bits thanks to special HW and special grinding
- chip-free hole edges thanks to special cutting edge geometry
Notes
- adjusting screw Ident-No. 001600 M5x10 DIN 551 for precise length adjustment included in delivery
- adjusting screw Ident-No. 186017 M5x11,5 for Weeke quick clamping chuck must be ordered separately
- clamping elements: combi chuck, quick-change chuck
- other dimensions possible; price and delivery time on request
|
Ø D
[mm] |
L2
[mm] |
Ø d
[mm] |
L3
[mm] |
L1
[mm] |
L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||
| 5 | 25 | 10 | 25 | 57.5 | L | 185738 | ||
| 5 | 25 | 10 | 25 | 57.5 | R | 185737 | ||
| 8 | 25 | 10 | 25 | 57.5 | L | 185740 | ||
| 8 | 25 | 10 | 25 | 57.5 | R | 185739 | ||
| 5 | 30 | 10 | 30 | 70 | L | 185742 | ||
| 5 | 30 | 10 | 30 | 70 | R | 185741 | ||
| 8 | 30 | 10 | 30 | 70 | L | 185744 | ||
| 8 | 30 | 10 | 30 | 70 | R | 185743 | ||
