Platten-Aufteil-Kreissägeblätter HW - Q-Cut "G6"
Produkt

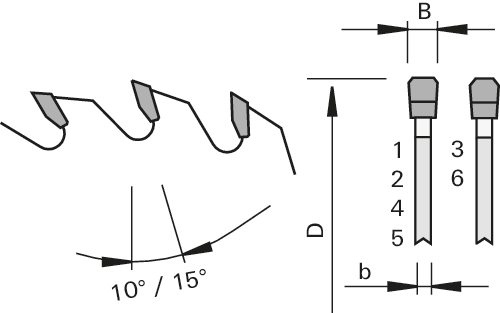

Zeichnung
-
-
- Hartmetall [HW]
-
Artikel
Beschreibung
Maschine / Anwendung
- Plattenaufteilsägen
- für Fertigschnitte in folienbelegten, kunststoffbeschichteten oder furnierten Holzwerkstoffen, einzeln oder im Paket
Ausführung
- vibrations- und lärmdämpfende Ornamente
- zusätzliche Dehnungsschlitze
- bis ØD=370, 10 Grad Spanwinkel
- ab ØD=380, 15 Grad Spanwinkel
- Zahnform: G6
- Schneidstoff: HW HL Board 04 plus
Vorteile
- erfüllt höchste Leistungsanforderungen
- beeindruckende Schnittqualität durch exakte, maßhaltige Schnitte
- reduzierter Schnittdruck und optimierte Schnittgeometrie G6
- extrem geräuscharmes und ruhiges Schnittverhalten durch verstärkten Grundkörper und durch vibrations- und lärmdämpfende Ornamente
- deutlich erhöhte Standzeit durch verbesserte HW-Sorte
Hinweise
- Überstand: min 20 - 25 mm
- NL**- Combi3 = 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42
- NL**- Combi5 = 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120
- NL**- Combi7 = 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120
|
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Z | NL |
Span∡
[°] |
Zahnform | LEUCODUR | Maschine/Type | Ident-No. | Vergl. | Anfr. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Gesuchte Abmessungen werden nicht aufgeführt?
ab Lager lieferbar |
||||||||||||
| 280 | 3,2 | 2.2 | 30 | 60 | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 10 | G6 | HL Board 04 plus | Panhans EURO 5 | 193136 | ||
| 300 | 4,0 | 3 | 60 | 72 | 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 10 | G6 | HL Board 04 plus | Homag (Holzma) HPP 230 | 193370 | ||
| 300 | 4,4 | 3.3 | 60 | 72 | 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 10 | G6 | HL Board 04 plus | Homag (Holzma) HPP 230 | 193137 | ||
| 300 | 4,4 | 3 | 65 | 60 | 2/9/110 | 10 | G6 | HL Board 04 plus | Selco EB 70 | 193138 | ||
| 300 | 4,4 | 3 | 75 | 60 | 2/9/110 | 10 | G6 | HL Board 04 plus | Holzma CH03 | 193139 | ||
| 305 | 4,4 | 3 | 30 | 60 | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 10 | G6 | HL Board 04 plus | Mayer, Panhans | 193140 | ||
| 308 | 3,2 | 2.4 | 60 | 96 | 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 10 | G6 | HL Board 04 plus | Homag HPS 320 | 193141 | ||
| 320 | 4,4 | 3.3 | 30 | 60 | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 10 | G6 | HL Board 04 plus | Mayer / Format 4 | 193142 | ||
| 320 | 4,0 | 3 | 60 | 72 | 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 10 | G6 | HL Board 04 plus | HOMAG SAWTEQ B-200 | 193372 | ||
| 320 | 4,4 | 3.3 | 60 | 72 | 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 10 | G6 | HL Board 04 plus | HOMAG SAWTEQ B-200 | 193221 | ||
| 320 | 4,4 | 3.3 | 65 | 60 | 2/9/110 | 10 | G6 | HL Board 04 plus | Biesse, Selco EB 80 | 193143 | ||
| 320 | 3,6 | 2.5 | 65 | 60 | 2/9/110 + 2/9/100 | 10 | G6 | HL Board 04 plus | Selco WN 230, Selco SK 230 | 193301 | ||
| 330 | 4,4 | 3.3 | 50 | 60 | 8/13/80 | 10 | G6 | HL Board 04 plus | Giben | 193144 | ||
| 350 | 4,25 | 3.3 | 30 | 72 | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 10 | G6 | HL Board 04 plus | Scheer | 193145 | ||
| 350 | 4,4 | 3.3 | 30 | 72 | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 10 | G6 | HL Board 04 plus | SCM, Panhans, Mayer, Schelling, HOLZ-HER | 193146 | ||
| 350 | 4,4 | 3.3 | 50 | 72 | 8/13/80 | 10 | G6 | HL Board 04 plus | Giben Smart | 193147 | ||
| 350 | 4,0 | 3 | 60 | 72 | 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 10 | G6 | HL Board 04 plus | Homag (Holzma) 72, HPP 350 | 193373 | ||
| 350 | 4,4 | 3.3 | 60 | 72 | 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 10 | G6 | HL Board 04 plus | Homag (Holzma) 72, HPP 350 | 193148 | ||
| 350 | 4,4 | 3.3 | 75 | 72 | 10 | G6 | HL Board 04 plus | Homag Sawtech, Homag (Holzma) 250 | 193149 | |||
| 355 | 4,4 | 3.3 | 30 | 72 | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 10 | G6 | HL Board 04 plus | Mayer / Format 4 | 193290 | ||
| 350 | 3,6 | 2.5 | 65 | 72 | 2/9/110 + 2/9/100 | 10 | G6 | HL Board 04 plus | Selco WN 250 | 193302 | ||
| 355 | 4,4 | 3.3 | 75 | 72 | 10 | G6 | HL Board 04 plus | Giben | 193150 | |||
| 355 | 4,4 | 3.3 | 80 | 72 | 4/8,5/100 + 2/7/110 + 2/14/110 | 10 | G6 | HL Board 04 plus | Gabbiani PRIMA, SCM ALPHA | 193152 | ||
| 360 | 4,4 | 3.3 | 30 | 72 | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 10 | G6 | HL Board 04 plus | Schelling | 193153 | ||
| 360 | 4,4 | 3.3 | 75 | 72 | 4/15/105 | 10 | G6 | HL Board 04 plus | Giben | 193154 | ||
| 370 | 4,4 | 3.3 | 30 | 72 | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 10 | G6 | HL Board 04 plus | Schelling FM | 193155 | ||
| 380 | 4,4 | 3.3 | 30 | 72 | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 15 | G6 | HL Board 04 plus | HOLZ-HER | 193156 | ||
| 380 | 4,4 | 3.3 | 50 | 72 | 4/13/80 | 15 | G6 | HL Board 04 plus | Giben Onyx | 193157 | ||
| 380 | 4,0 | 3 | 60 | 72 | 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 15 | G6 | HL Board 04 plus | Homag (Holzma) | 193374 | ||
| 380 | 4,4 | 3.3 | 60 | 72 | 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 15 | G6 | HL Board 04 plus | Homag (Holzma) | 193158 | ||
| 380 | 4,8 | 3.6 | 60 | 72 | 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 15 | G6 | HL Board 04 plus | Homag (Holzma) | 193159 | ||
| 380 | 3,6 | 2.5 | 65 | 72 | 2/9/110 + 2/9/100 | 15 | G6 | HL Board 04 plus | Selco WN 610 - WNA 610 | 193303 | ||
| 380 | 4,4 | 3.3 | 65 | 72 | 2/9/100 + 2/9/110 | 15 | G6 | HL Board 04 plus | Selco WN 610 | 193283 | ||
| 380 | 4,4 | 3.3 | 80 | 72 | 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120 | 15 | G6 | HL Board 04 plus | SCM, Selco | 193188 | ||
| 380 | 4,8 | 3.6 | 80 | 72 | 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120 | 15 | G6 | HL Board 04 plus | SCM, Selco | 193189 | ||
| 400 | 4,25 | 3.3 | 30 | 72 | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 15 | G6 | HL Board 04 plus | Scheer | 193160 | ||
| 400 | 4,4 | 3.3 | 30 | 72 | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 15 | G6 | HL Board 04 plus | HOLZ-HER, Irion, Mayer, Scheer, Schelling | 193161 | ||
| 400 | 4,4 | 3.3 | 60 | 72 | 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 15 | G6 | HL Board 04 plus | Nanxing | 193162 | ||
| 400 | 4,0 | 3 | 65 | 72 | 2/9/110 + 2/9/100 | 15 | G6 | HL Board 04 plus | Selco WN 630 - WNA 630, Selco WN 650 - WNA 650 | 193304 | ||
| 400 | 4,4 | 3.3 | 65 | 72 | 2/9/100 + 2/9/110 | 15 | G6 | HL Board 04 plus | Selco WN 630, WN 650 | 193284 | ||
| 400 | 4,4 | 3.3 | 75 | 72 | 4/15/105 + 2/7/110 | 15 | G6 | HL Board 04 plus | Giben Prismatic 1, Giben Starmatic, Homag CH08+12 | 193163 | ||
| 400 | 4,4 | 3.3 | 80 | 72 | 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120 | 15 | G6 | HL Board 04 plus | Gabbiani CLASS, SCM DELTA, Selco WN / EB | 193164 | ||
| 420 | 4,8 | 3.6 | 60 | 72 | 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 15 | G6 | HL Board 04 plus | Homag (Holzma) Typ 92 | 193165 | ||
| 430 | 4,4 | 3.3 | 30 | 72 | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 15 | G6 | HL Board 04 plus | HOLZ-HER | 193166 | ||
| 430 | 4,0 | 3 | 65 | 72 | 2/9/110 + 2/9/100 | 15 | G6 | HL Board 04 plus | Selco WN 650 - WNA 650 | 193305 | ||
| 430 | 4,4 | 3.3 | 65 | 72 | 2/9/100 + 2/9/110 | 15 | G6 | HL Board 04 plus | Selco WN 650 | 193285 | ||
| 430 | 4,8 | 3.6 | 70 | 72 | 4/11/130 | 15 | G6 | HL Board 04 plus | Selco WN | 193169 | ||
| 430 | 4,4 | 3.3 | 75 | 72 | 4/15/105 + 2/7/110 | 15 | G6 | HL Board 04 plus | Giben Prismatic 2 alt | 193167 | ||
| 430 | 4,4 | 3.3 | 80 | 72 | 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120 | 15 | G6 | HL Board 04 plus | Selco WN | 193168 | ||
| 450 | 4,4 | 3.3 | 30 | 72 | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 15 | G6 | HL Board 04 plus | Irion, Schelling | 193170 | ||
| 450 | 4,4 | 3.3 | 75 | 72 | 2/7/110 | 15 | G6 | HL Board 04 plus | Giben | 193171 | ||
| 450 | 4,4 | 3.3 | 80 | 72 | 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120 | 15 | G6 | HL Board 04 plus | Gabbiani ELITE | 193172 | ||
| 450 | 4,65 | 3.6 | 30 | 72 | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 15 | G6 | HL Board 04 plus | Scheer | 193173 | ||
| 450 | 4,8 | 3.6 | 30 | 72 | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 15 | G6 | HL Board 04 plus | Scheer | 193174 | ||
| 450 | 4,8 | 3.6 | 60 | 72 | 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 15 | G6 | HL Board 04 plus | Homag (Holzma) | 193175 | ||
| 450 | 4,8 | 3.6 | 80 | 72 | 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120 | 15 | G6 | HL Board 04 plus | Selco WN | 193176 | ||
| 460 | 4,4 | 3.3 | 30 | 72 | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 15 | G6 | HL Board 04 plus | Schelling FL, FH6 | 193177 | ||
| 470 | 4,4 | 3.3 | 75 | 72 | 4/15/105 + 2/19/120 | 15 | G6 | HL Board 04 plus | Giben | 193178 | ||
| 470 | 4,8 | 3.6 | 70 | 72 | 4/11/130 | 15 | G6 | HL Board 04 plus | Selco WN | 193179 | ||
| 480 | 4,4 | 3.3 | 30 | 72 | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 15 | G6 | HL Board 04 plus | Schelling FH6 ab 2016 | 193180 | ||
| 480 | 4,8 | 3.6 | 60 | 72 | 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 15 | G6 | HL Board 04 plus | Homag (Holzma) | 193181 | ||
| 480 | 4,8 | 3.6 | 70 | 72 | 4/11/130 | 15 | G6 | HL Board 04 plus | Selco Series 750 | 193183 | ||
| 480 | 4,8 | 3.6 | 80 | 72 | 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120 | 15 | G6 | HL Board 04 plus | Selco WN | 193184 | ||
| 500 | 4,8 | 3.6 | 60 | 72 | 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 15 | G6 | HL Board 04 plus | Homag (Holzma) Typ 22 | 193185 | ||
| 520 | 4,8 | 3.6 | 30 | 72 | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 15 | G6 | HL Board 04 plus | Schelling FH8 | 193186 | ||
| 520 | 4,8 | 3.6 | 60 | 72 | 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 15 | G6 | HL Board 04 plus | Homag (Holzma) 23 / 550 | 193187 | ||
| 520 | 4,8 | 3.6 | 70 | 72 | 4/11/130 | 15 | G6 | HL Board 04 plus | Selco WN | 193182 | ||
