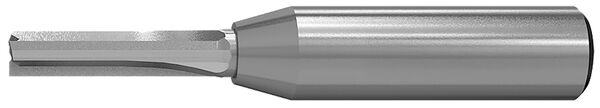

Shank-Type Cutters VHW Nesting - straight cutter axis
Product

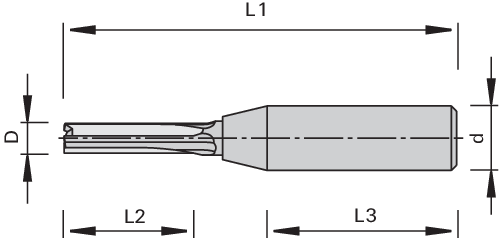

Drawing
-
- Solid Tungsten Carbide
- MEC
Article
Description
Machine / Application
- CNC routers
- for panel sizing with Nesting Technology
- for jointing, rabbeting and grooving in raw and laminated panels
Design
Advantages
- special grinding of the cutting edge for better surface quality
- laminated for an up to three times higher edge life
- large chip spaces for better chip evacuation and lower heat generation
Notes
|
Ø D
[mm] |
L2
[mm] |
Ø d
[mm] |
L3
[mm] |
L1
[mm] |
Z |
nmax
[min-1] |
L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||
| 6 | 26 | 12 | 35.2 | 73 | 3 | 18,000 | R | 80501994 | ||
| 8 | 29 | 12 | 39.2 | 76 | 3 | 18,000 | R | 80502672 | ||
| 10 | 32 | 10 | 35 | 75 | 3 | 18,000 | R | 80502674 | ||
