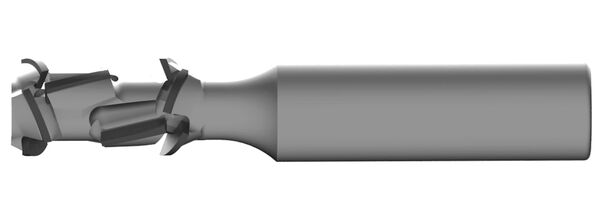

p-System Zuschnitts-Schaftfräser DP
Product

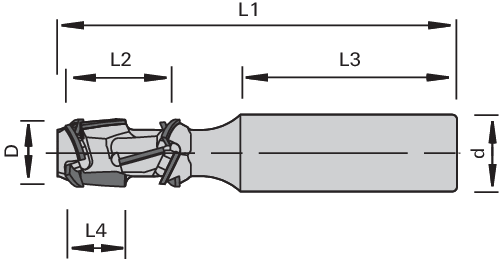

Drawing
-
- Polycrystalline diamond [DP]
- MEC
Article
Description
Machine / Application
- CNC stationary machines
- for jointing and dividing of melamine-, paper-, HPL-laminated, foiled and veneered panels and lacquered surfaces
- Finish-quality in the case of fiber materials such as fabric-laminated panels, linoleum with jute fibers, cork etc.
Design
- extremely scoring cut
Advantages
- maximale Schnittqualität und Standweg
- ideal geeignet für LaserBekantungen
Notes
- clamping element: precision clamping element e.g. ps-System, TRIBOS
- with thread for length adjusting screw
- sense of rotation according to VDMA 8849
|
Ø D
[mm] |
L4
[mm] |
L2
[mm] |
Ø d
[mm] |
L3
[mm] |
L1
[mm] |
Z |
nmax
[min-1] |
Shear∡
[°] |
Resharpening area
[mm] |
L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||||||
| 14 | 11 | 22 | 16 | 45 | 83 | 4+2+4 | 24,000 | 65 | 1.5 | R | 80504462 | ||
| 14 | 9.5 | 19 | 16 | 45 | 83 | 4+2+4 | 24,000 | 65 | 1.5 | R | 80504464 | ||
